60v ac to dc converter programmable power supply ADC6003
Product Description
Overview
ADC6003 Series programmable linear DC power supply with the resolution 10mV/1mA is a kind of equipment with high stability with high reliability and low noise. This highly stable, high quality DC power supply has an output continuously adjustable at 0-60V DC and 0-3A. What's more, their built-in RS-232 communication interface offers you a convenience testing experience.

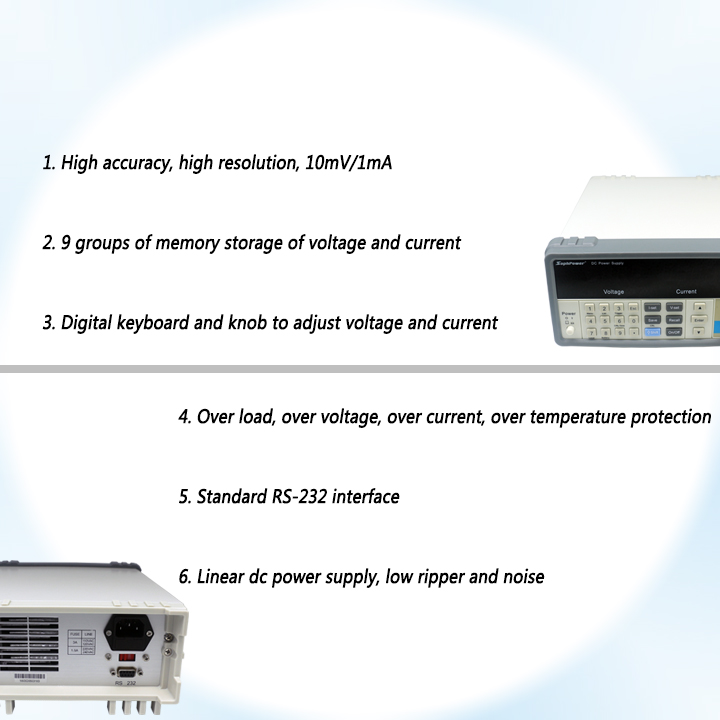

Key Features

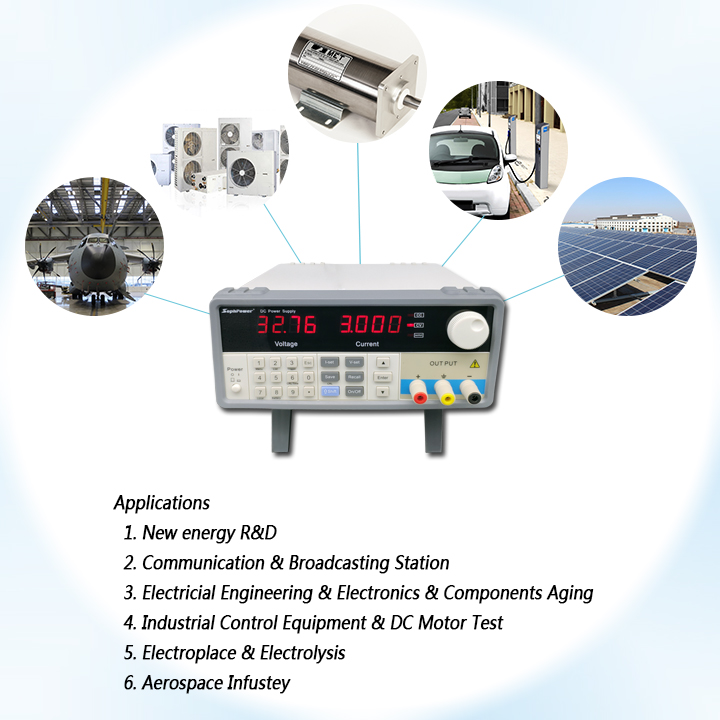

Applications
Specifications
| Model | ADC3603 | ADC3605 | ADC3610 | ADC6003 | ADC6005 | |
|---|---|---|---|---|---|---|
| Output Rating | Voltage | 0-36V | 0-36V | 0-36V | 0-60V | 0-60V |
| Current | 0-3A | 0-5A | 0-10A | 0-3A | 0-5A | |
| Working | Linear | |||||
| Load Regulation | Voltage | ≤ 0.02% + 3mV | ||||
| Current | ≤ 0.02% + 3mA | |||||
| Line Regulation | Voltage | ≤ 0.02% + 3mV | ||||
| Current | ≤ 0.02% + 3mA | |||||
| Setup Resolution | Voltage | 10mV | ||||
| Current | 1mA | |||||
| Setup Accuracy | Voltage | ≤ 0.02% + 2d | ||||
| Current | ≤ 0.02% + 2d | |||||
| Read Back Resolution | Voltage | 10mV | ||||
| Current | 1mA | |||||
| Read Back Accuracy | Voltage | ≤ 0.02% + 2d | ||||
| Current | ≤ 0.02% + 2d | |||||
| Ripple | Voltage | 1mVrms | ||||
| Current | 3mArms | |||||
| Working Environment | Operation | Temperature: 0 ~ 40ºC; RH ≤ 85% | ||||
| Storage | Temperature: -15 ~ 70ºC; RH ≤ 85% | |||||

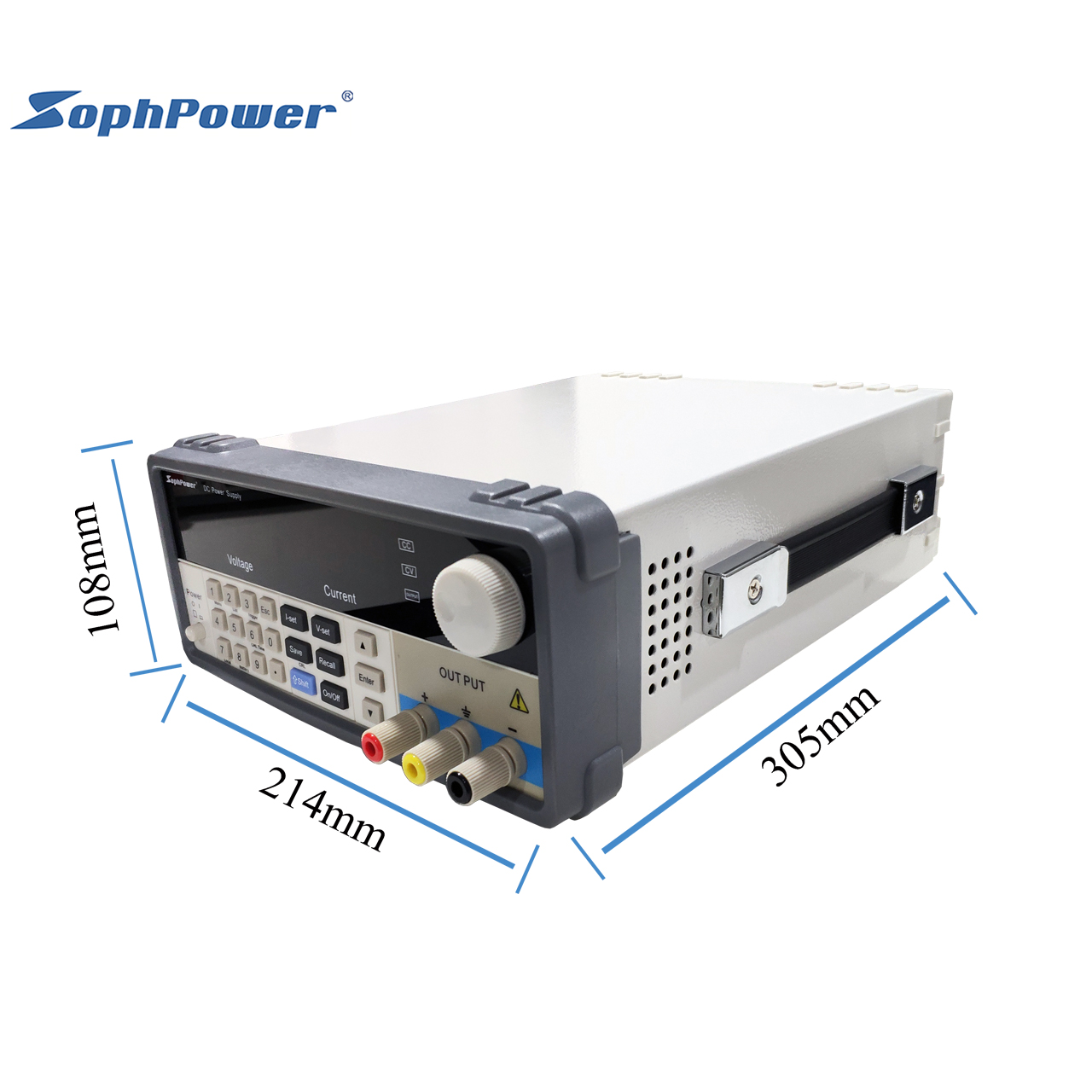

| Dimension (W*H*D) (mm) | 214*108*305 | |||||
| Weight (Kg) | 5.2 | 5.9 | 6.8 | 7.4 | 8.1 | |

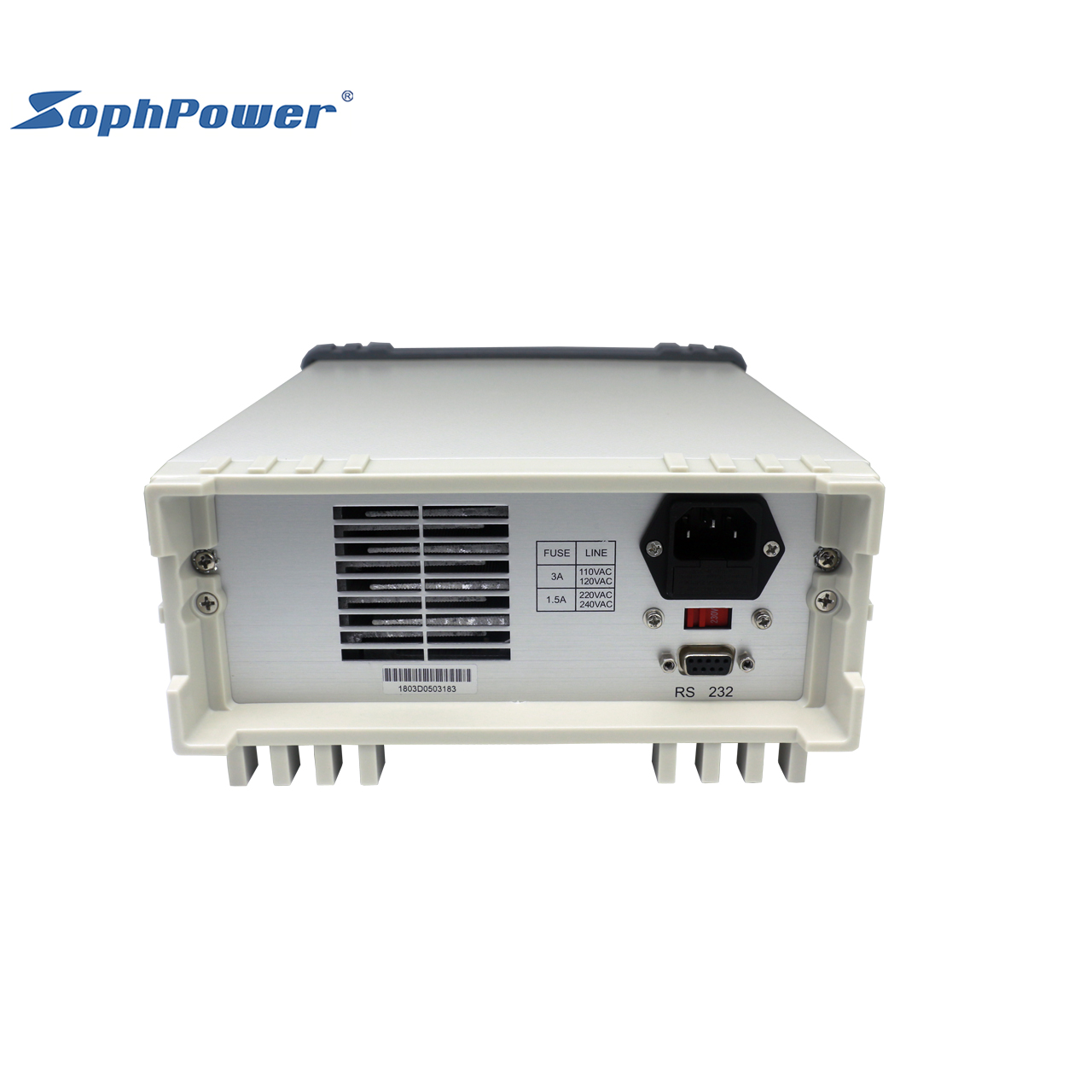

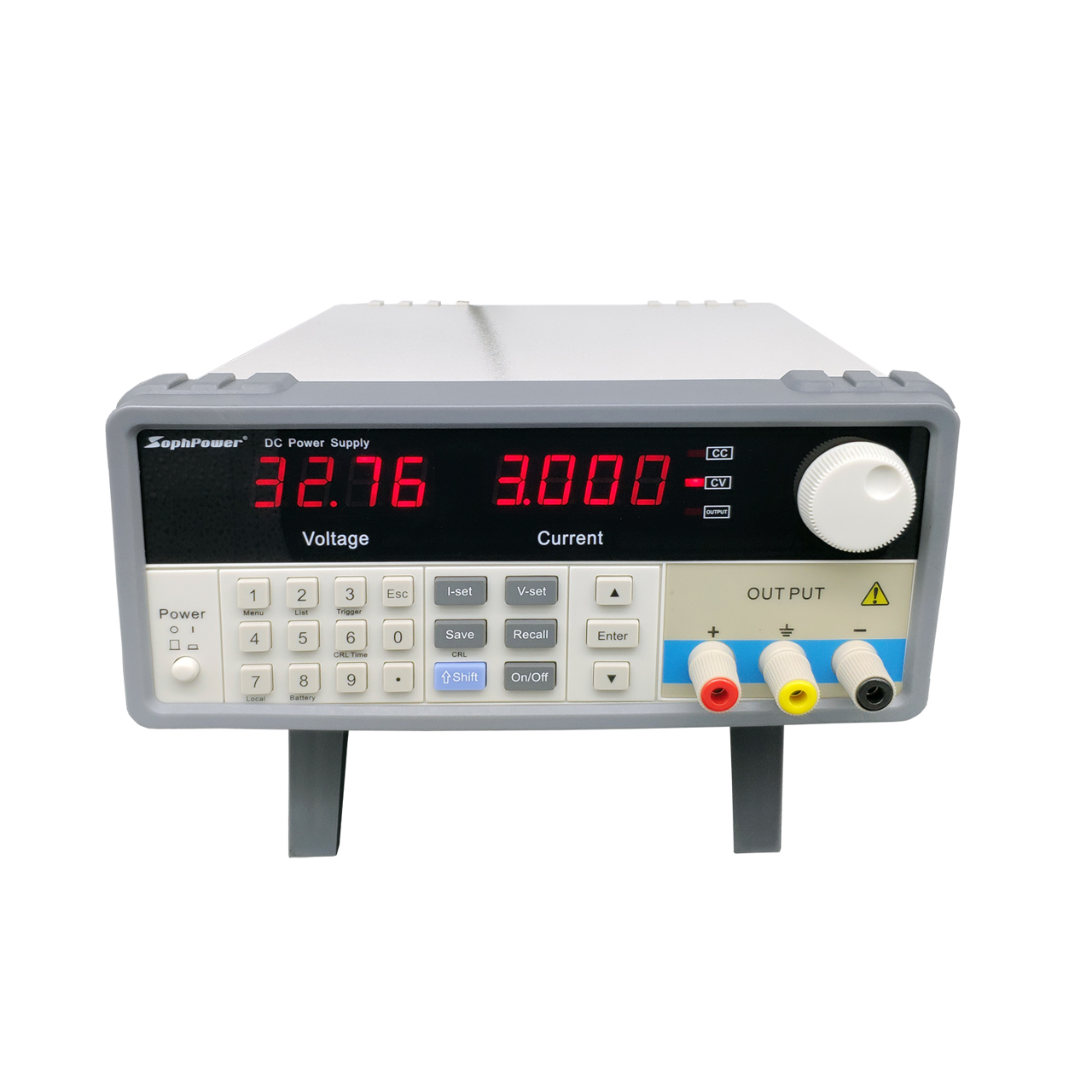

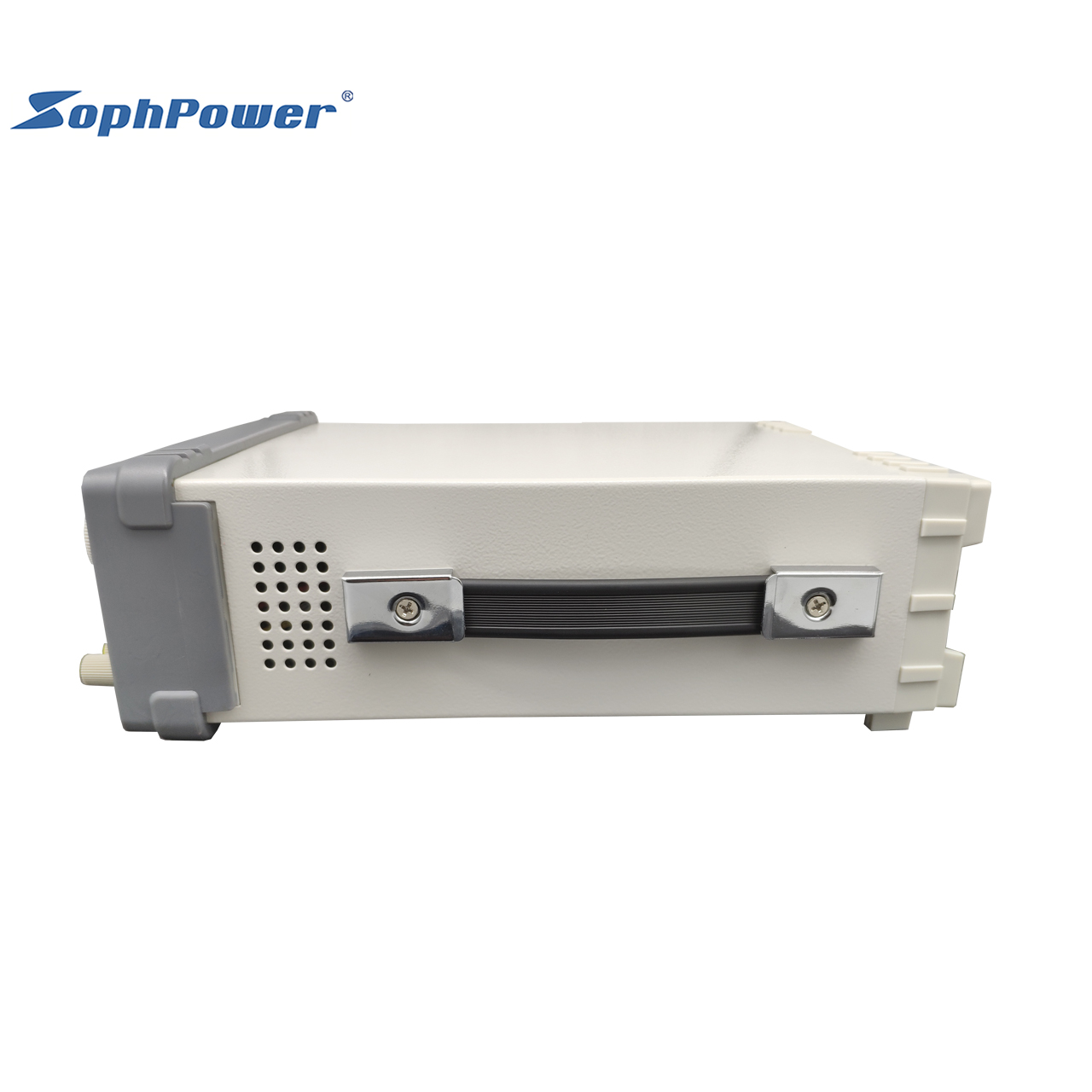

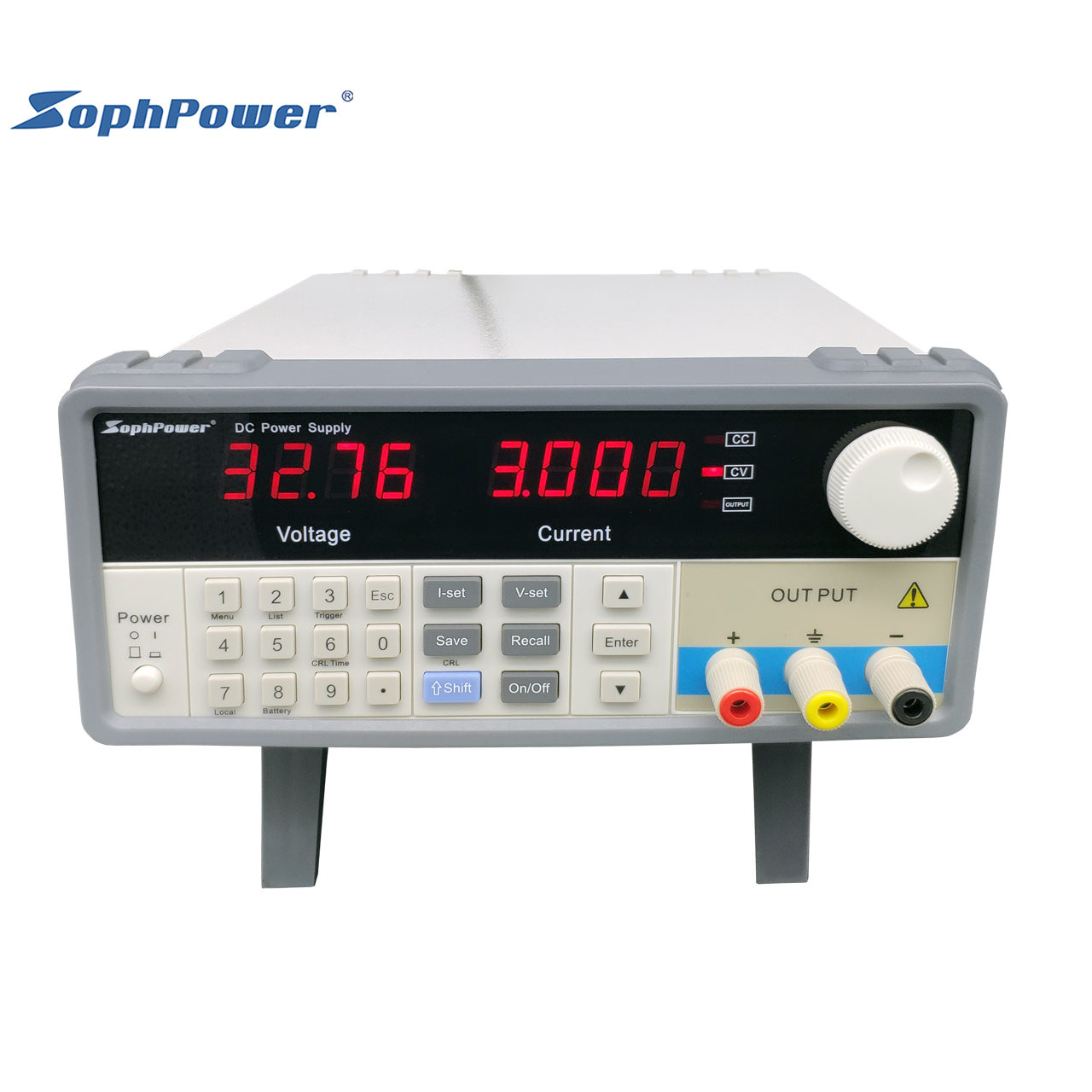

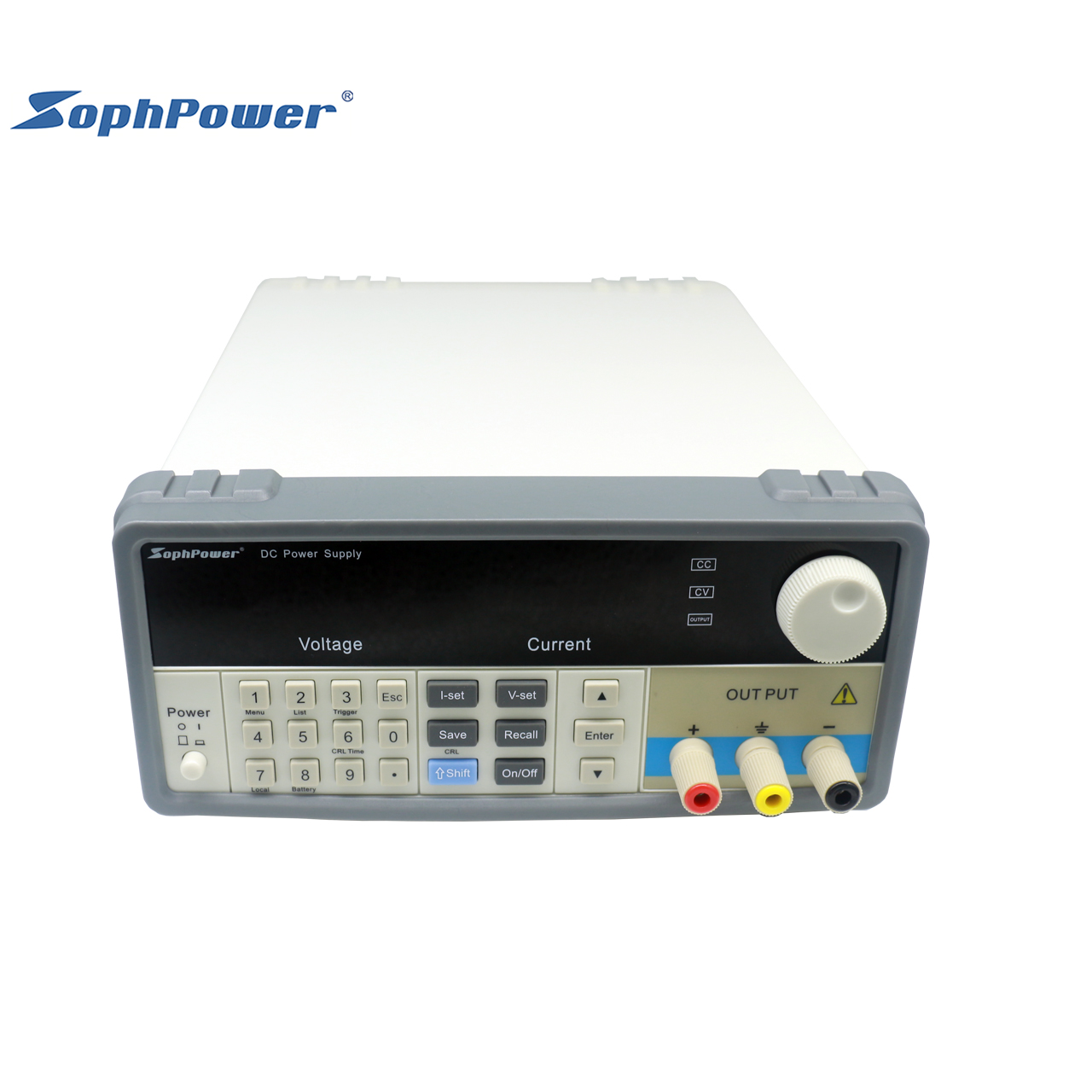

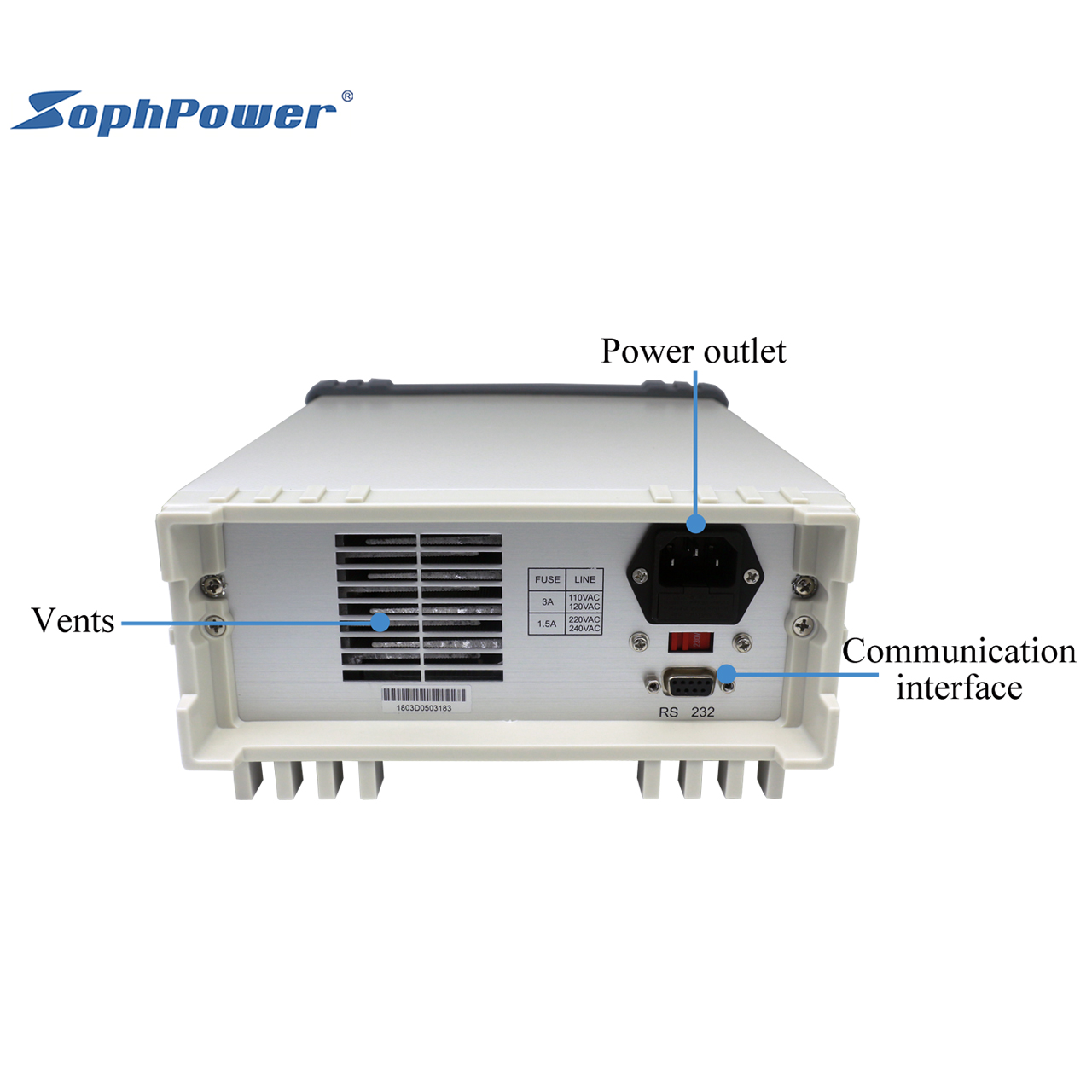

Photos
Related Products
FAQ
QWhat is your terms of packing?
Generally, the inner is film, outer packing is standard export carton or wooden case.
QWhat is your terms of payment?
T/T 30% as deposit, and 70% can be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.
QWhat is your terms of delivery?
EXW, FOB, CIF or Express.
QHow about your delivery time?
Generally it takes 10-20 working days after receive your deposit or full payment. The specific delivery time depends on the items and the quantity of your order.
QCan you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
QDo you test all your goods before delivery?
Yes, we will test precisely before delivery.
