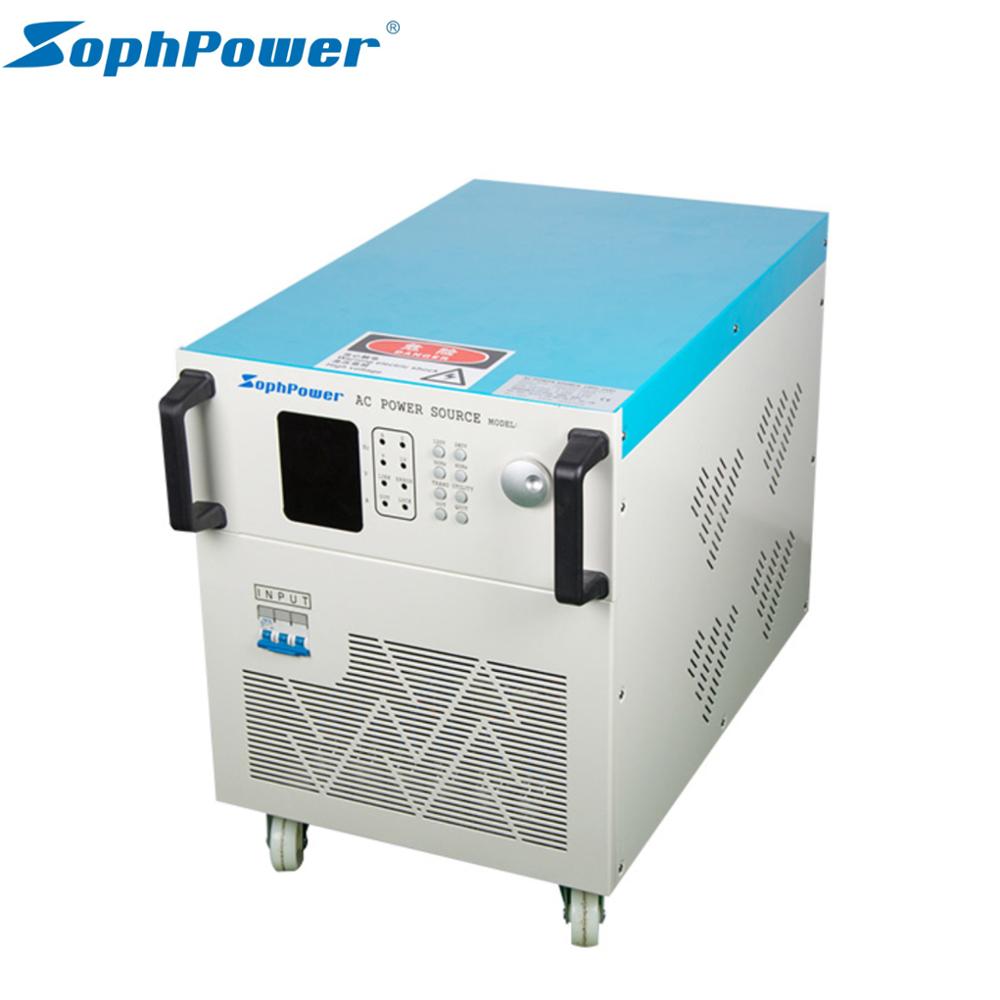

10KVA 3 phase power frequency converter 60hz 50hz
Product Description
Overview
The AFC Series single phase AC power source are compact and cost effective units that offer excellent performance and ease of use. Using model IGBT/SPWM switch mode technology for efficient operation, these units come in power levels from 500VA to 1000kVA.
The AFC Series are ideally suited for burn-in and test of large industrial equipment. The frequency can also be adjusted to 400 Hertz for applications such as the testing of military/avionics equipment or for the operation of 400 Hz electronics that are onboard an aircraft or a military vessel. The adjustable frequency band of 45 to 400 Hz in conjunction with the dual voltage ranges of 0-150 volts or 0-300 volts provides full capabilities for testing and operating electronics.
The AFC Series are ideally suited for burn-in and test of large industrial equipment. The frequency can also be adjusted to 400 Hertz for applications such as the testing of military/avionics equipment or for the operation of 400 Hz electronics that are onboard an aircraft or a military vessel. The adjustable frequency band of 45 to 400 Hz in conjunction with the dual voltage ranges of 0-150 volts or 0-300 volts provides full capabilities for testing and operating electronics.
Key Features
1
Simple Front Panel Controls.
2
Low Voltage Distortion.
3
Current Limit Protection.
4
Up to 0-300Vac Voltage Output or 600V optional.
5
45-500 Hz Full Power Bandwidth.
6
RS232/RS485 or GPIB Interface Options.
Technical Specifications
| Parameter | Condition | Specification (AFC-310) |
|---|---|---|
| INPUT SPECIFICATIONS | ||
| Phases | - | 3-phase/4wire+ Ground |
| Voltage | - | 208, 220, 240 (3W+G), 380, 415, 480V (4W+G) ± 10% |
| Frequency | - | 50/60Hz±5% |
| OUTPUT SPECIFICATIONS | ||
| Rated Power | - | 10KVA |
| Max Current | 150V Range | 27.6A |
| Max Current | 300V Range | 13.8A |
| Phases | - | 3-phase / 4-wire + Ground |
| Voltage (Line to Neutral) | - | 0-150V/0-300V Selectable |
| Voltage (Line to Line) | - | 0-260V/0-520V Selectable |
| Resolution (Voltage) | - | 0.1V |
| Frequency Range | - | 50, 60, 45-500Hz (Optional) |
| Resolution (Frequency) | - | 0.1 Hz |
| Waveform Distortion | - | ≤ 1% ( Full Load 2% ) |
| Crest Factor | - | ≥ 3 : 1 |
| Load Regulation | - | ≤ 1% |
| Protection | - | Over Current, Short Circuit, Over Temperature, Over Load, Phase Deficient, Low-voltage Protection, Alarms |
| Efficiency | - | ≥ 85% ( at full load ) |
| ENVIRONMENTAL | ||
| Operating Temperature | - | 0° - 40° C / 32° - 104° F |
| Relative Humidity | - | 10-90%, non-condensing |
| DISPLAYS AND CONTROLS | ||
| 3 Digit LED Meters | - | Voltage, Current, Frequency, Power or Power factor (Optional) |
| Interface | - | Standard RS-232 or RS-485 |
| MECHANICAL SPECIFICATIONS | ||
| Dimensions (W*H*D) (mm) | - | 510*780*710 |
| Weights (Kg) | - | 200 |
Applications
AC Test Power
Equipped with a powerful microcontroller to create a stable and accurate output frequency, regardless of AC input conditions. It can be programmed to supply a variety of power conditions to the device under test.
Frequency/Voltage Conversion
Excellent source of stable AC voltage over a frequency range of 45 to 500 Hz. The output frequency is quartz-crystal stabilized. Output voltages up to 300 VAC or 600VAC are provided.
Export/Import Product Development
With the ability to provide any single phase voltage and frequency combination found worldwide, it is ideal for evaluating export appliances against various utility grids.
Avionics Power
Whenever 400Hz, 115Vac single phase is required to power up shipboard or airborne equipment, the AFC Series can deliver up to 500A of current to run even large equipment.

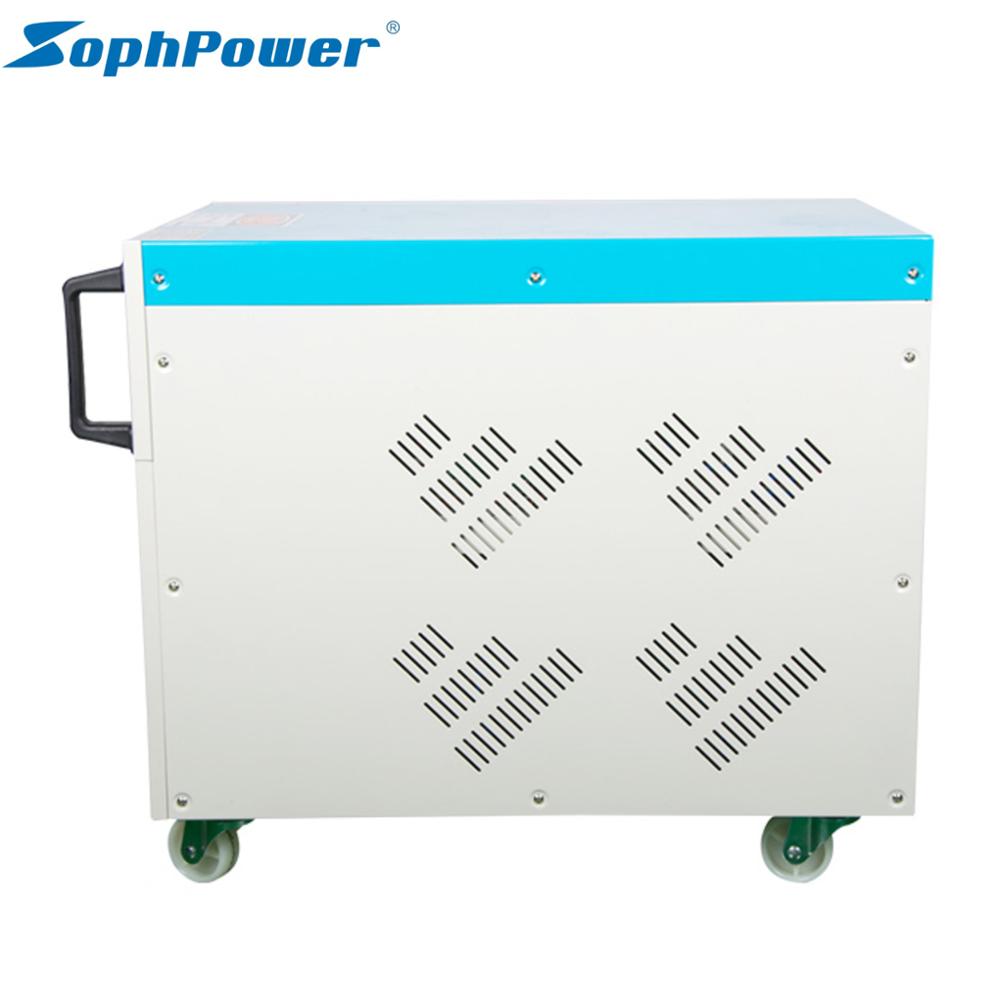

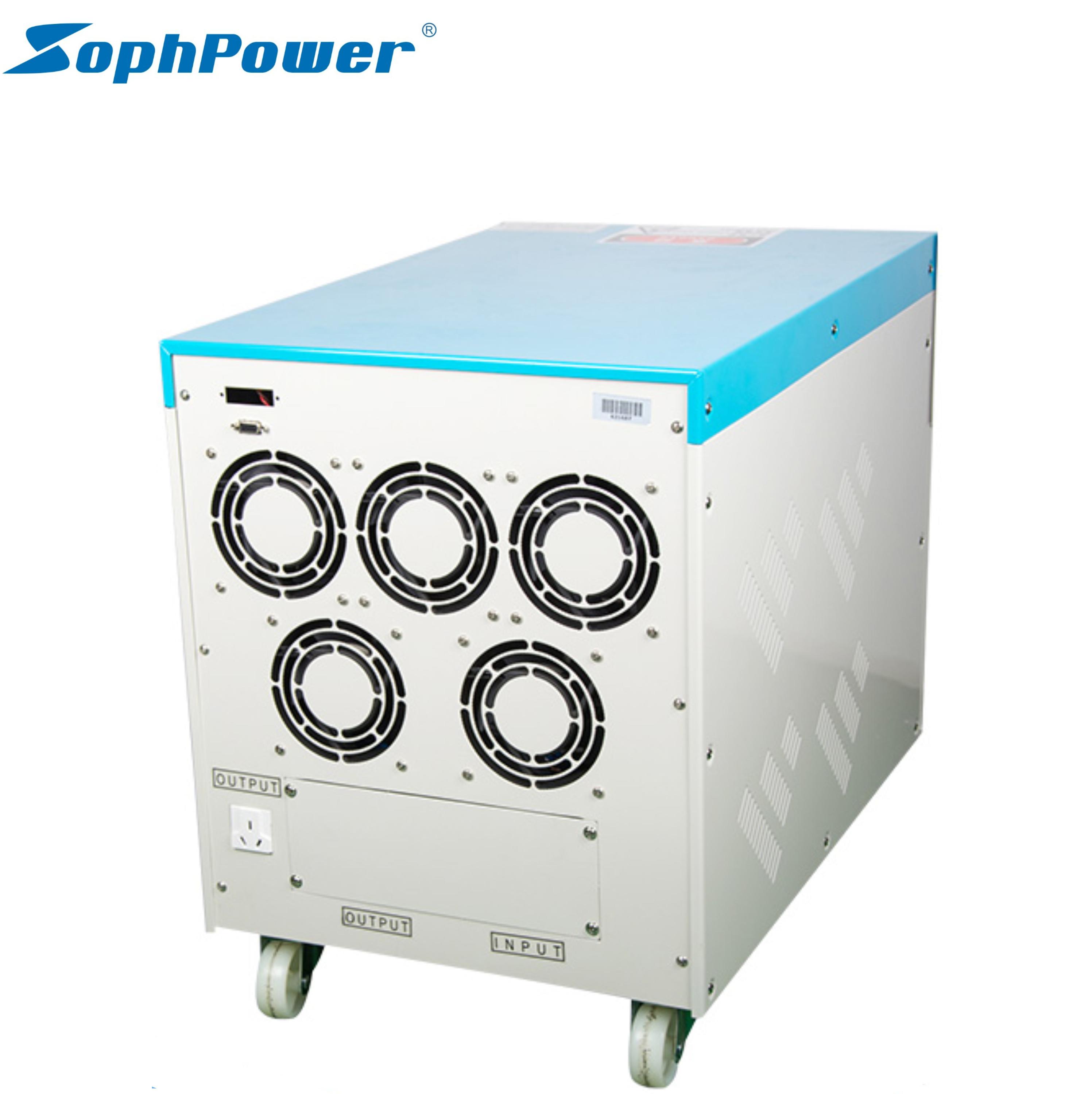

Photos
Related Products
AFC-150 5KVA Frequency Converter / AC Power Source
AFC-230 30KVA Frequency Converter / AC Power Source

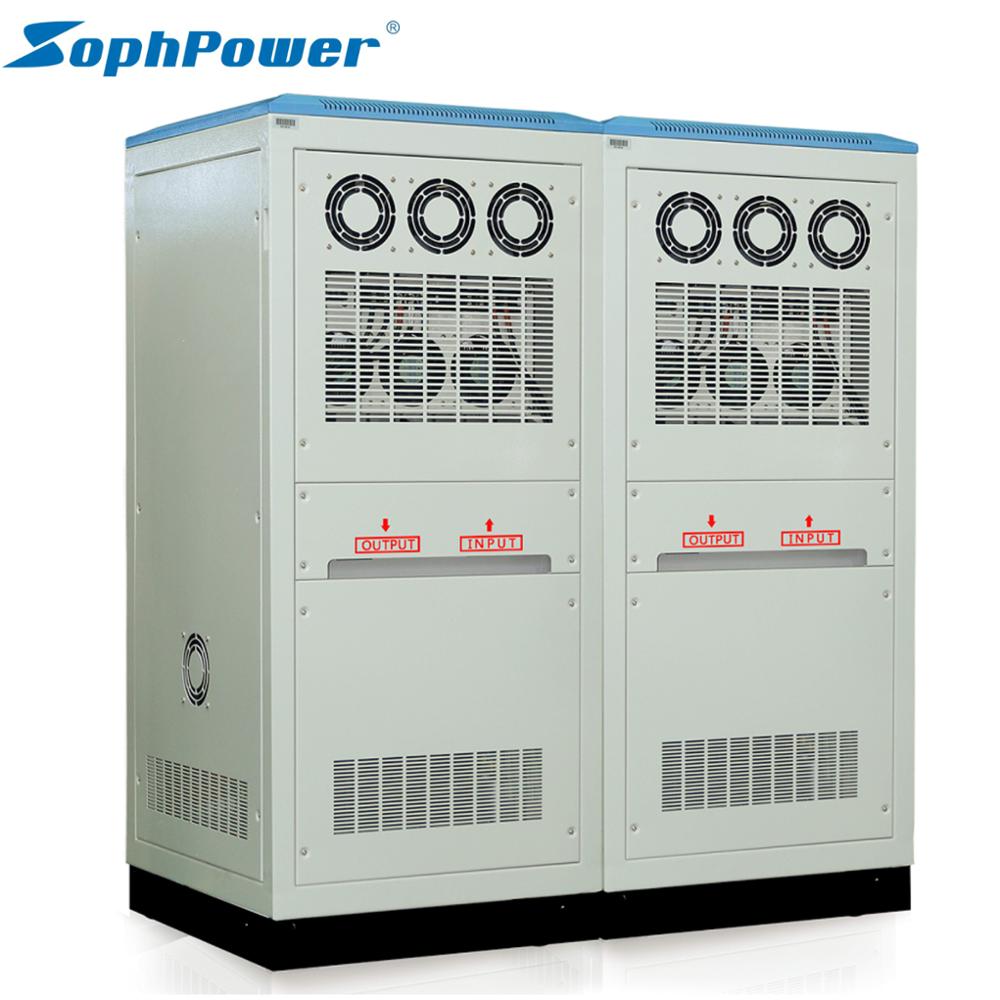

AFC-3100 100KVA Frequency Converter / AC Power Source
