Factory Supply AC Power Source 30kva 60hz /50hz Frequency Converter
Product Description
āļø My Overview
The AFC Series single phase AC power sources are simple but can provide excellent performance. Switch-mode technology and a direct coupled output make these sources efficient. Applying model IGBT/SPWM switch mode technology, the output capacity of these units can be made from 500VA to 1000kVA.
Our AFC Series are made for tests of industrial equipments, household applications and so on. The frequency can adjust itself to 400 Hertz for applications such as the military/avionics equipments and for the 400 Hz electronic operations which are in an aircraft or a military vessel. With dual voltage ranges of 0-150 volts or 0-300 volts, the adjustable frequency band of 45 to 400 Hz in conjunction can provide full capabilities for testing and operating electronics.
Also, Built-in safety features protect the instrument, the operator, and ensure a safe work environment.
ā” My Key Features
1
Simple but practical. Easy to operate.
2
Low Voltage Distortion.
3
Safety Protections.
4
Wide optional output voltage can be chosen.
5
Applying IGBT/PWM technology.
6
Both RS232 and RS485 are Optional.
7
LED display: Voltage, current and frequency can be showed.
š My Applications
š AC Test Power
Our AFC Series AC power sources provide the advanced features that your application requires at a price that you can afford. The AFC Series programmable AC power sources are easy to use instruments which provide precisely controlled frequency and voltage conversion.
š Frequency/Voltage Conversion
The AFC Series AC Power Source allows you to convert a series of data from one frequency to another. Conventional transformers can be supplied in voltage ranges from 0 to 300V and in power ratings from 500 to 100kVA.
š ļø Export/Import Development & Test
AFC Series designs and supplies a variety of High Voltage AC sources for any test voltage and power. With high reliability and availability, the AFC Series can be used in many testing equipments including industrial testings, household applications, laboratory testing unit and so on. High or low voltage can be chosen by yourself to adjust the equipments.
āļø Avionics Power
Generally, 400Hz, 115Vac single phase is the base requirement to power up shipboard or airborne equipment which the AFC Series can provide. Moreover, the AFC Series can be able to power up a larger stuff due to its good quality.
š Specs
| Model | AFC-330 | AFC-345 | AFC-360 | |
| INPUT SPECIFICATIONS | ||||
| Phases | 3-phase/4wire+ Ground | |||
| Voltage | 208, 220, 240 (3W+G), 380, 415, 480V (4W+G) Ā± 10% | |||
| Frequency | 50/60HzĀ±5% | |||
| OUTPUT SPECIFICATIONS | ||||
| Rated Power | 30KVA | 45KVA | 60KVA | |
| Max Current | 150V Range | 84A | 126A | 168A |
| 300V Range | 42A | 63A | 84A | |
| Phases | 3-phase/4wire+ Ground | |||
| Voltage | Line to Neutral | 0-150V/0-300V Selectable | ||
| Line to Line | 0-260V/0-520V Selectable | |||
| Resolution | 0.1V | |||
| Frequency | Range | 50,60,45-500Hz(Optional) | ||
| Resolution | 0.1 Hz | |||
| Waveform Distortion | ā¤ 1% ( Full Load 2% ) | |||
| Crest Factor | ā„ 3 : 1 | |||
| Load Regulation | ā¤ 1% | |||
| Protection | Over Current, Short Circuit, Over Temperature,Over Load ,Phase Deficient, Low-voltage Protection, Alarms | |||
| Efficiency | ā„ 85% ( at full load ) | |||
| ENVIRONMENTAL | ||||
| Operating Temperature | 0Ā° - 40Ā° C / 32Ā° - 104Ā° F | |||
| Relative Humidity | 10-90%,non-condensing | |||
| DISPLAYS AND CONTROLS | ||||
| 3 Digit LED Meters | Voltage, Current, Frequency,Power or Power factor(Optional) | |||
| Interface | Standard RS-232 or RS-485 | |||
| MECHANICAL SPECIFICATIONS | ||||
| Dimensions(W*H*D)(mm) | 690*1510*565 | |||
| Weights(Kg) | 360 | 450 | 600 | |

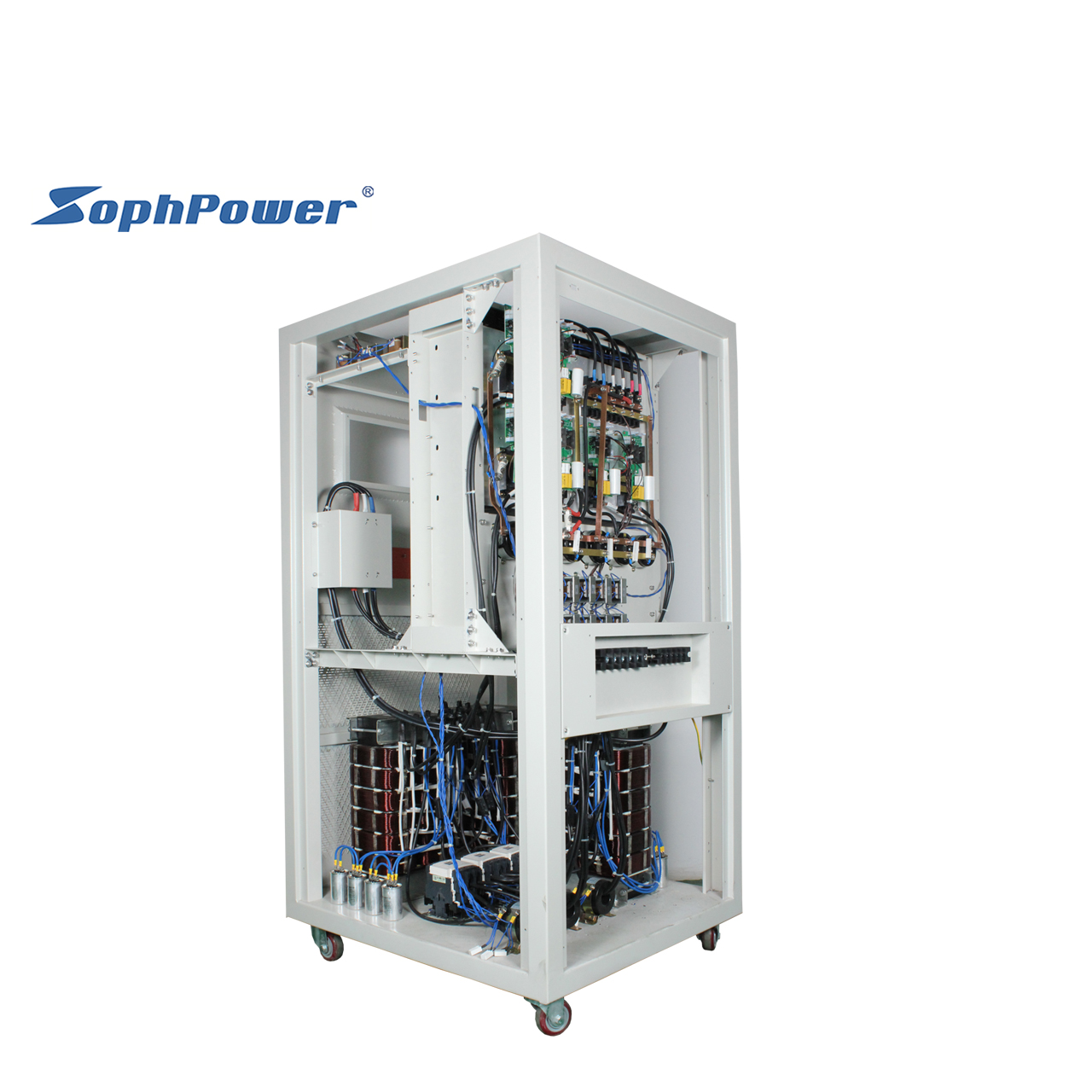

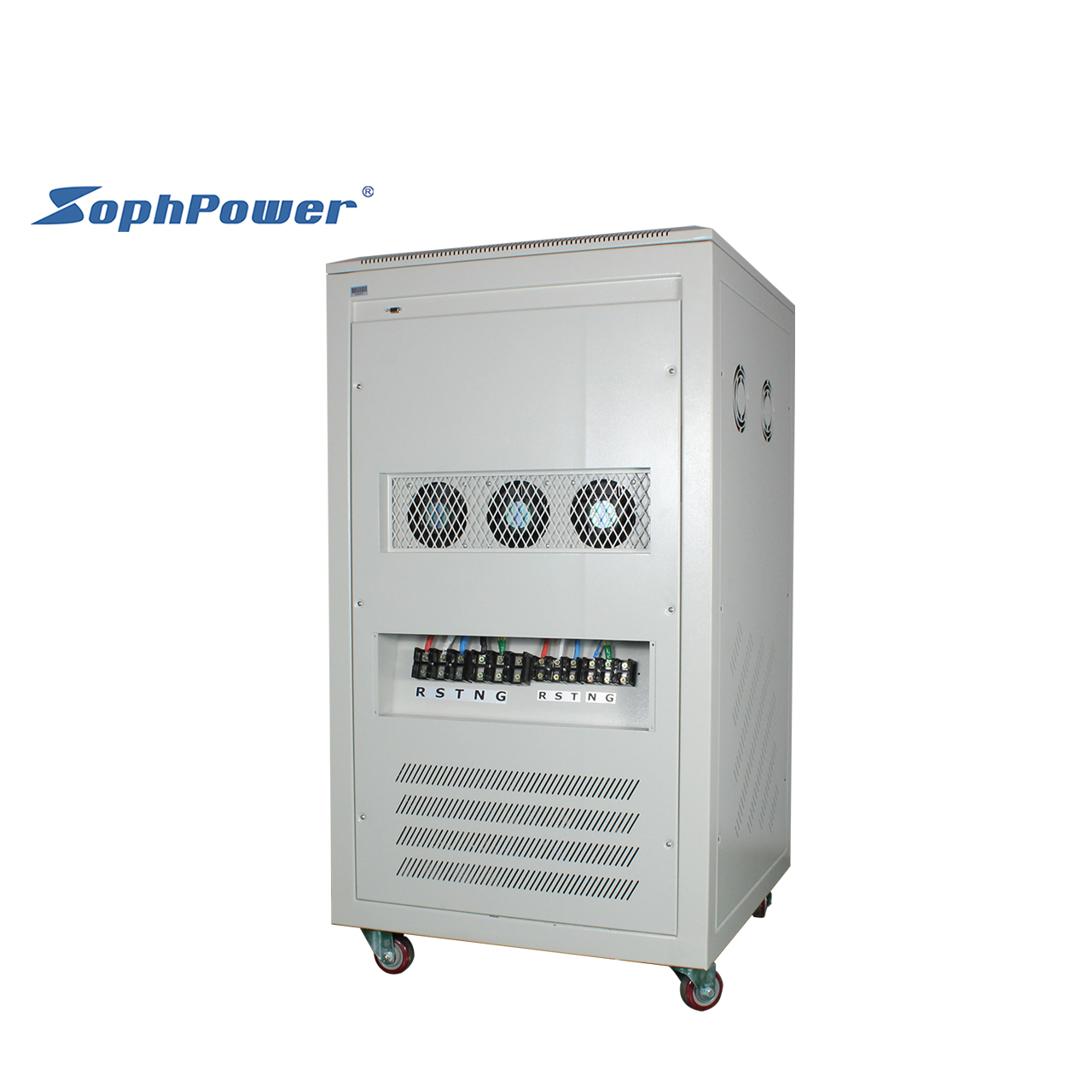

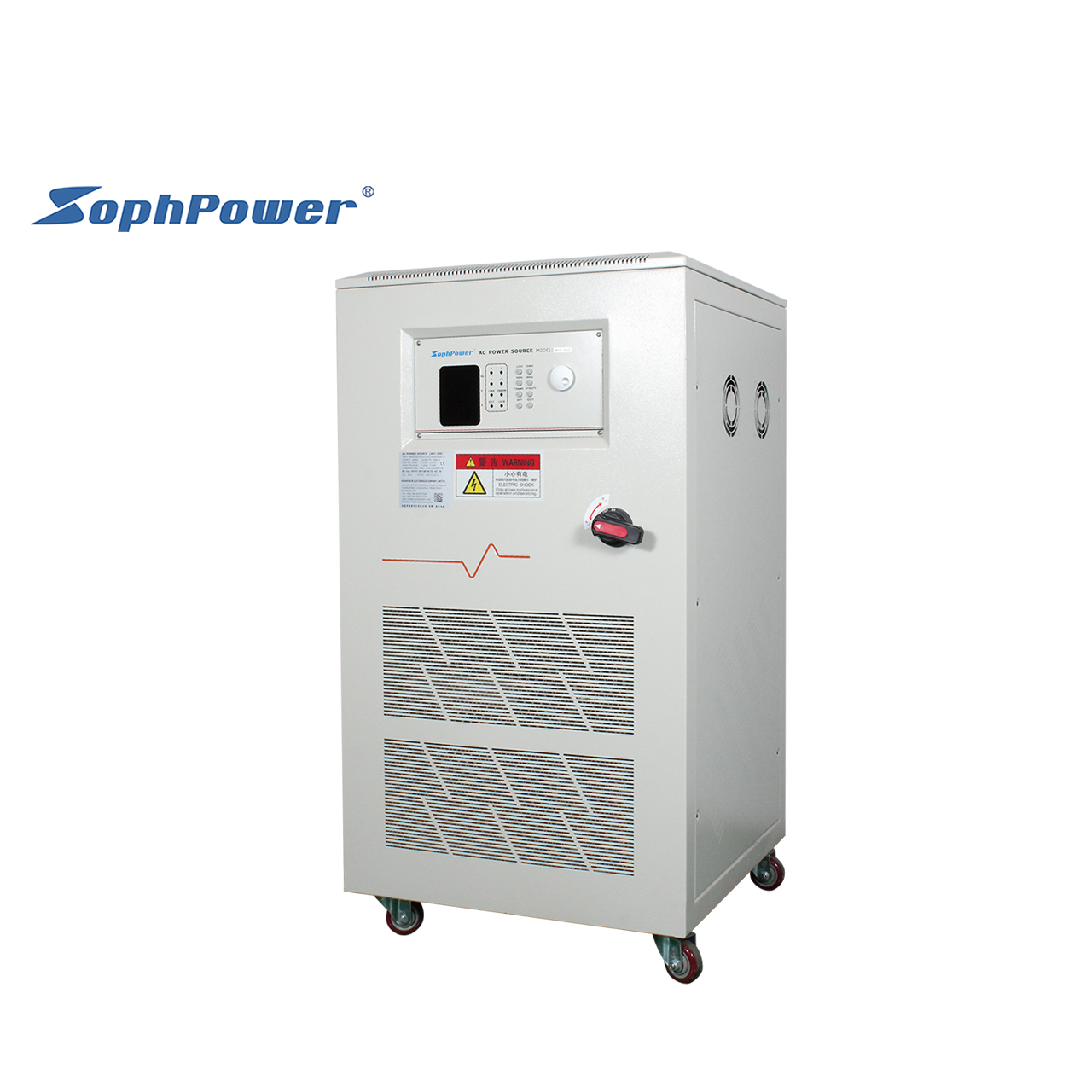

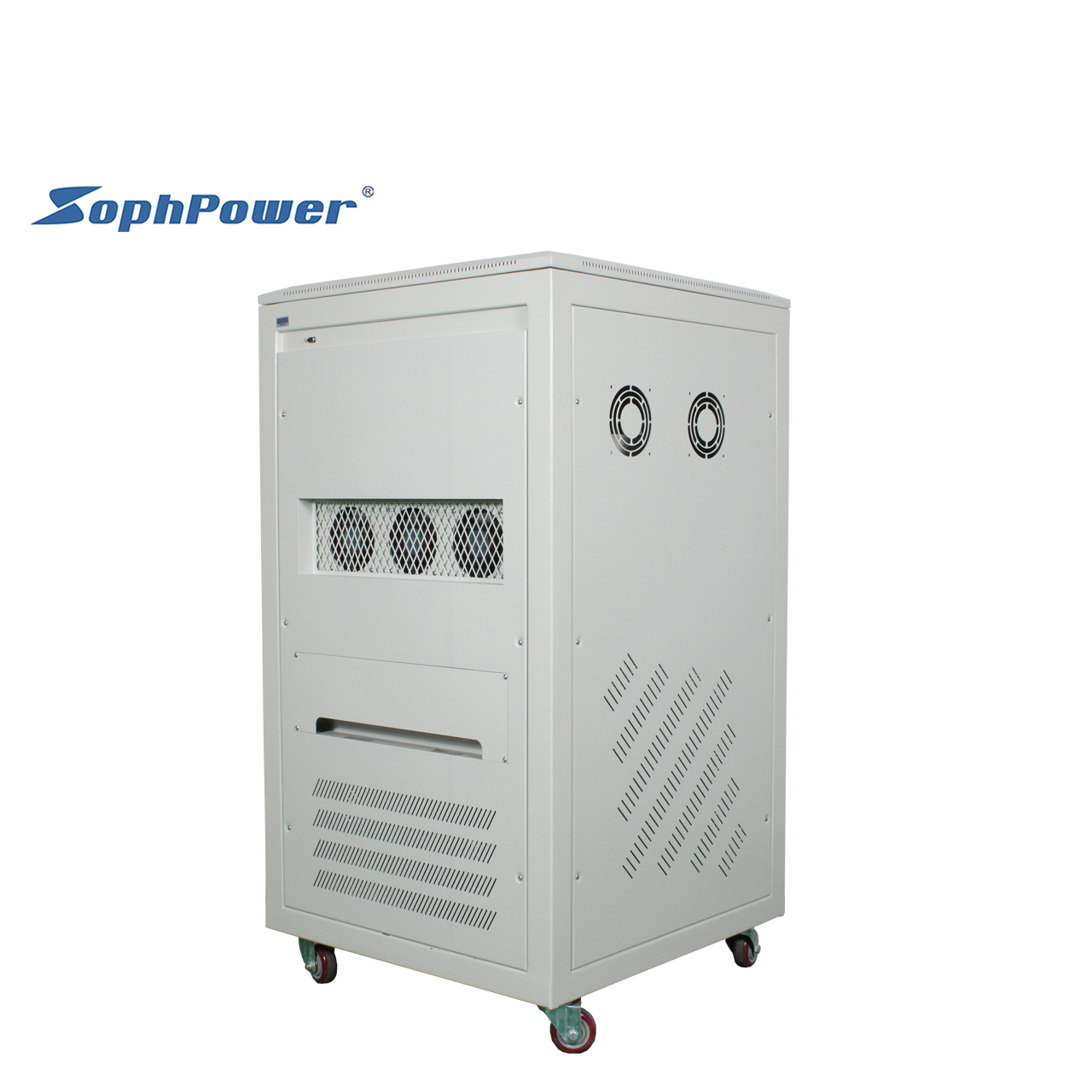

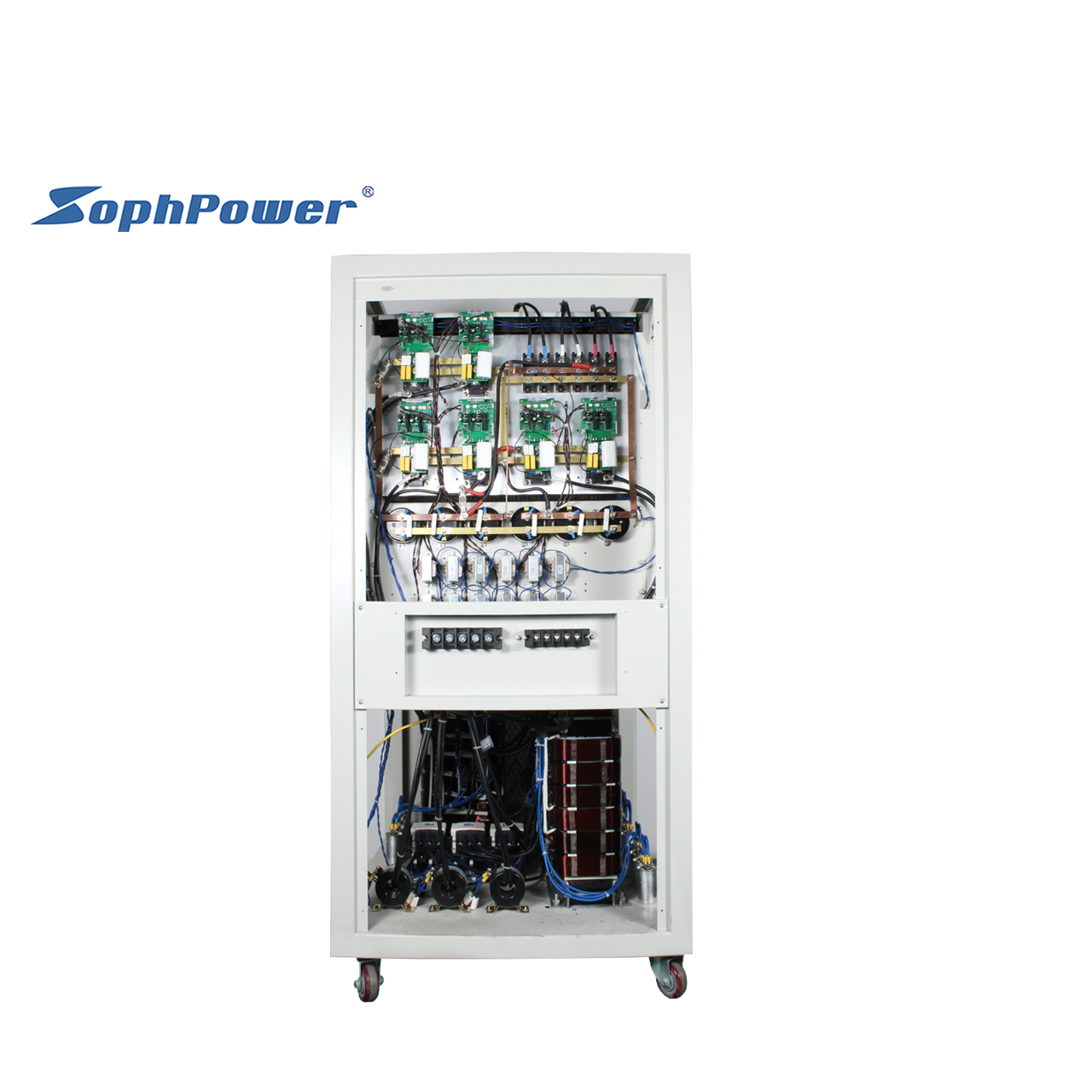

š· Photos
