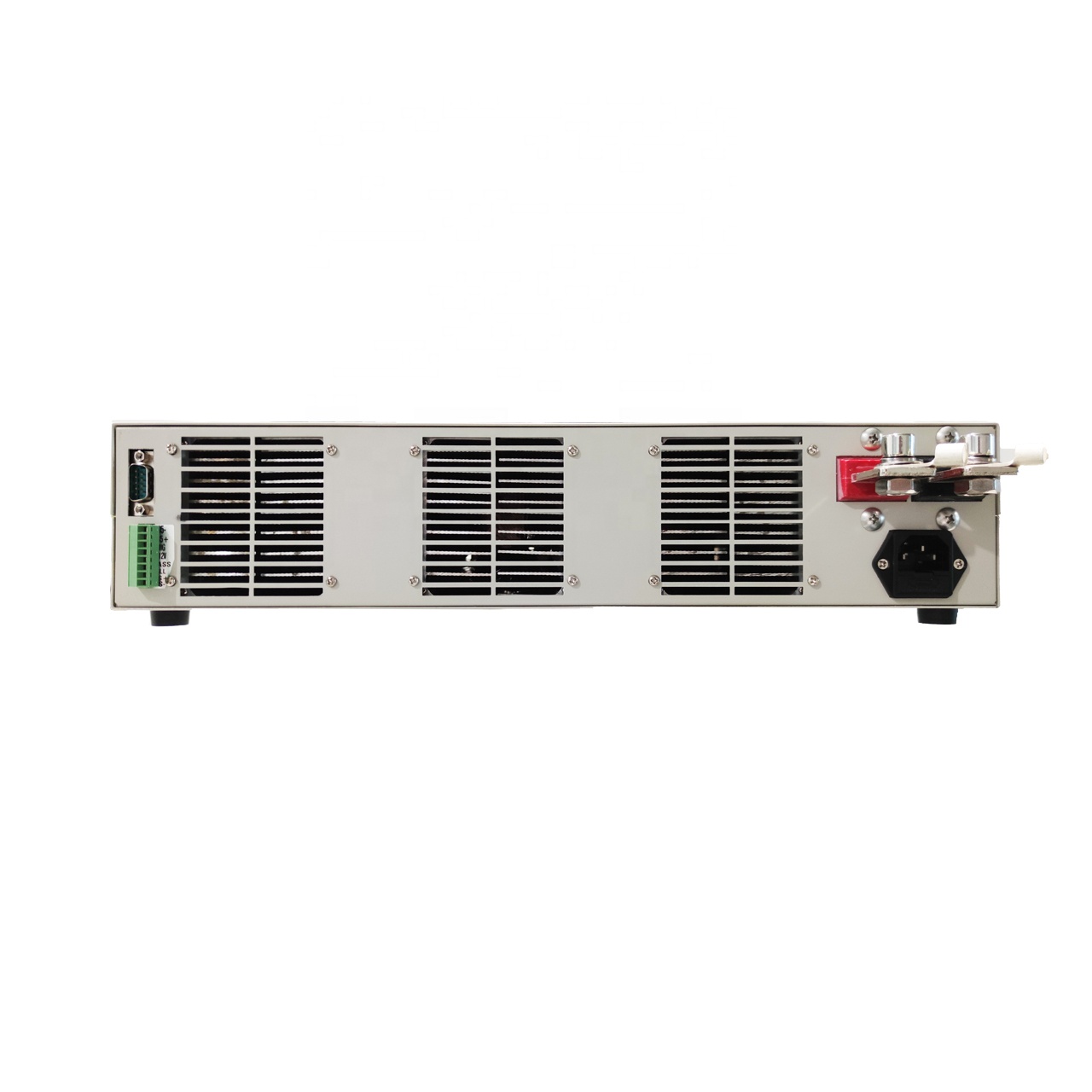

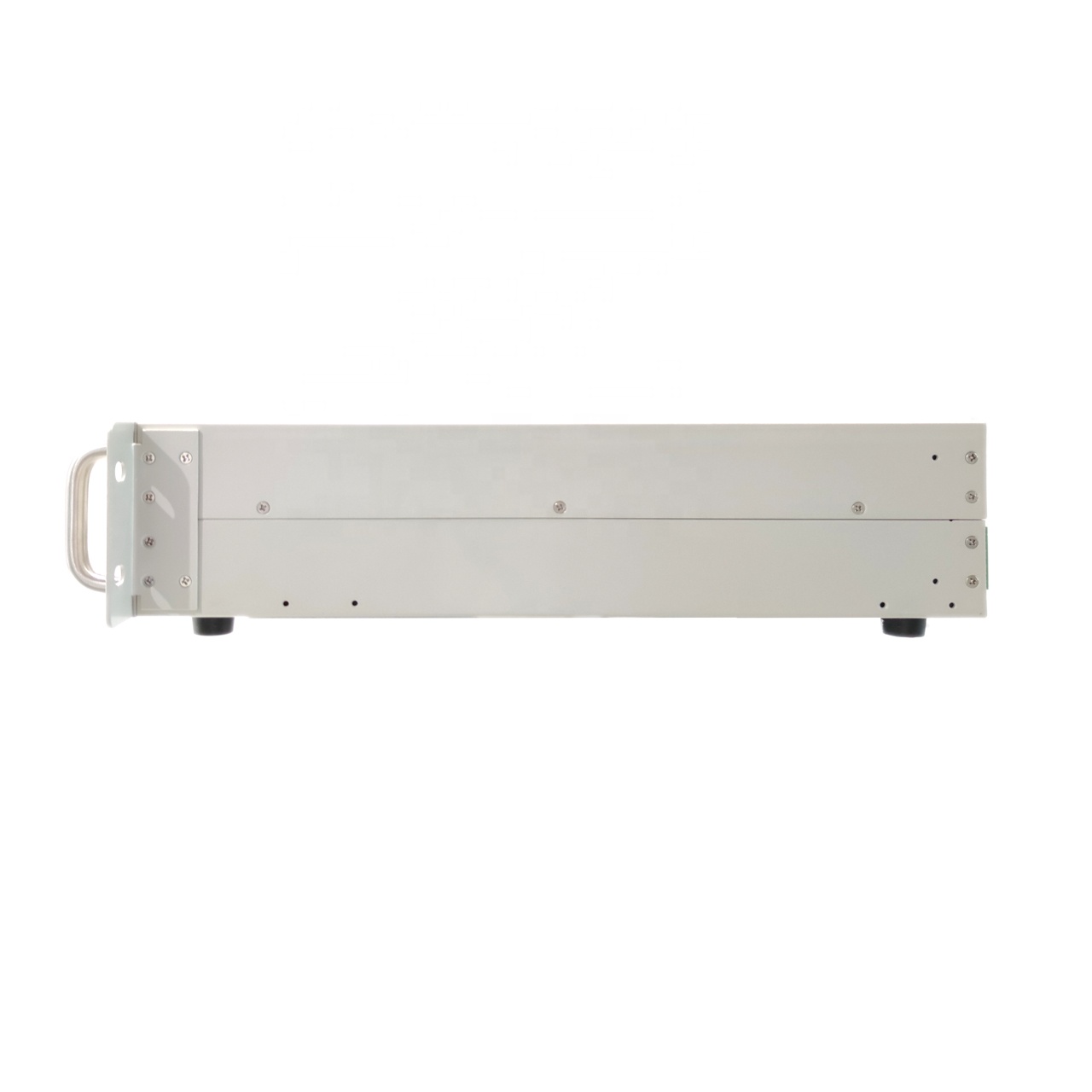

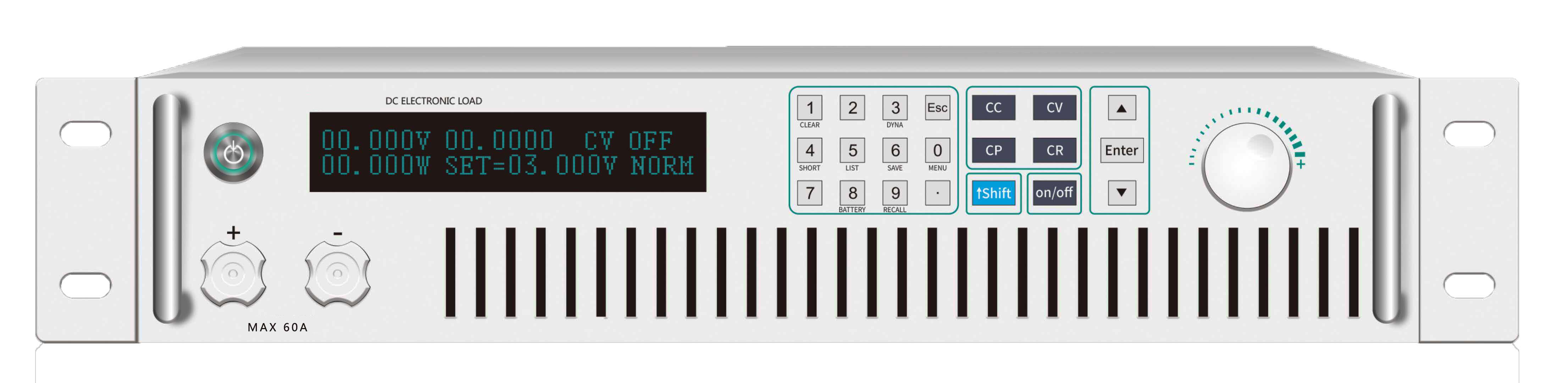

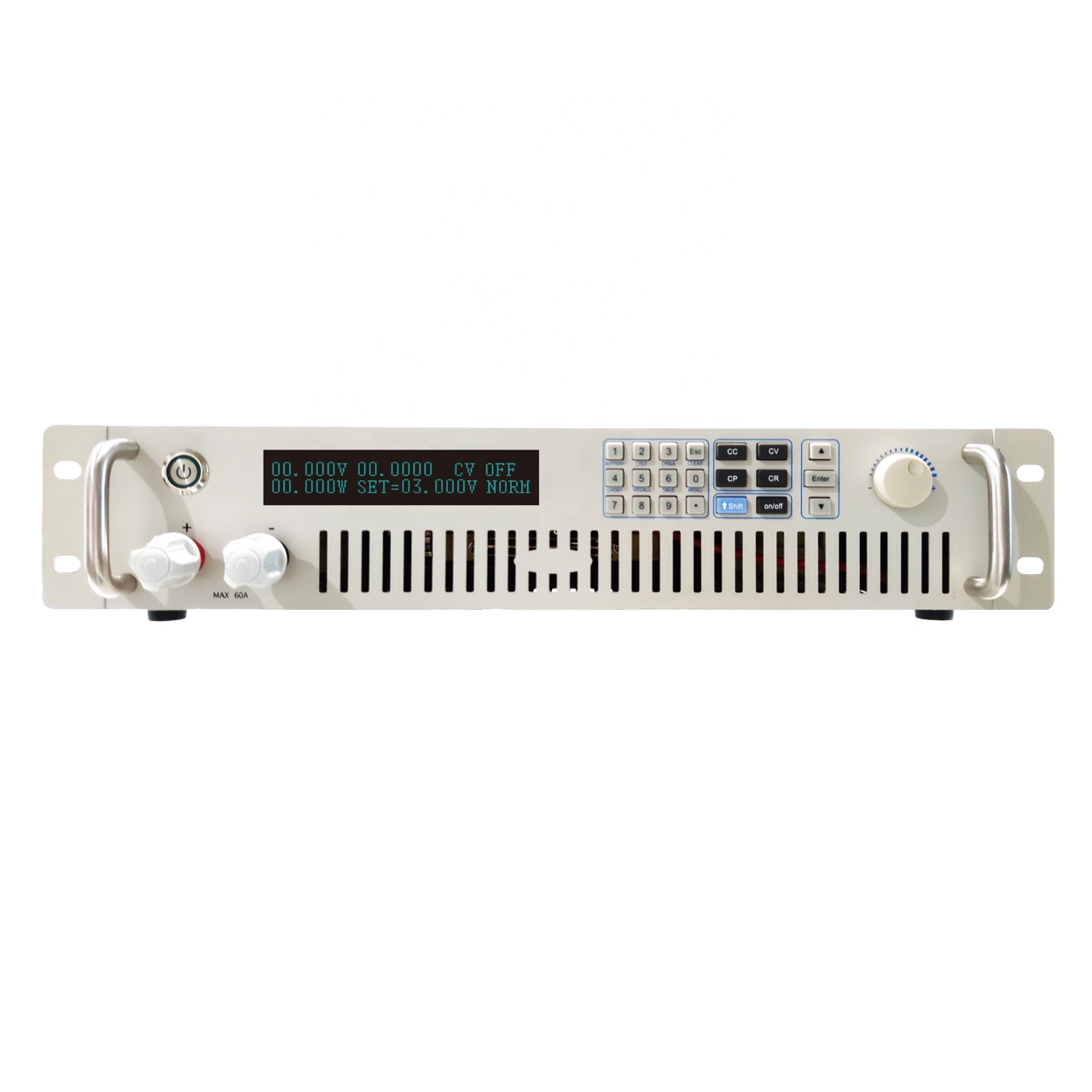

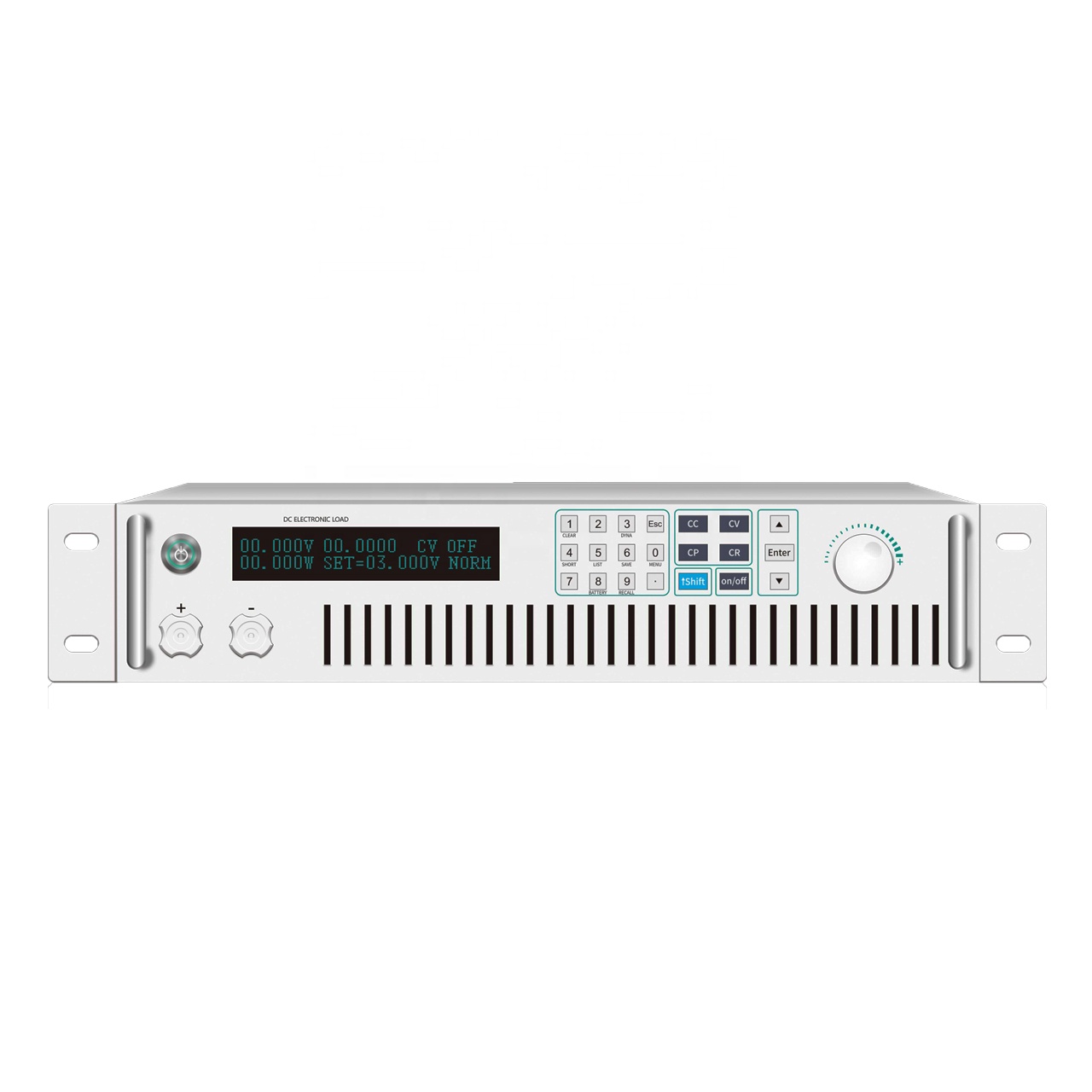

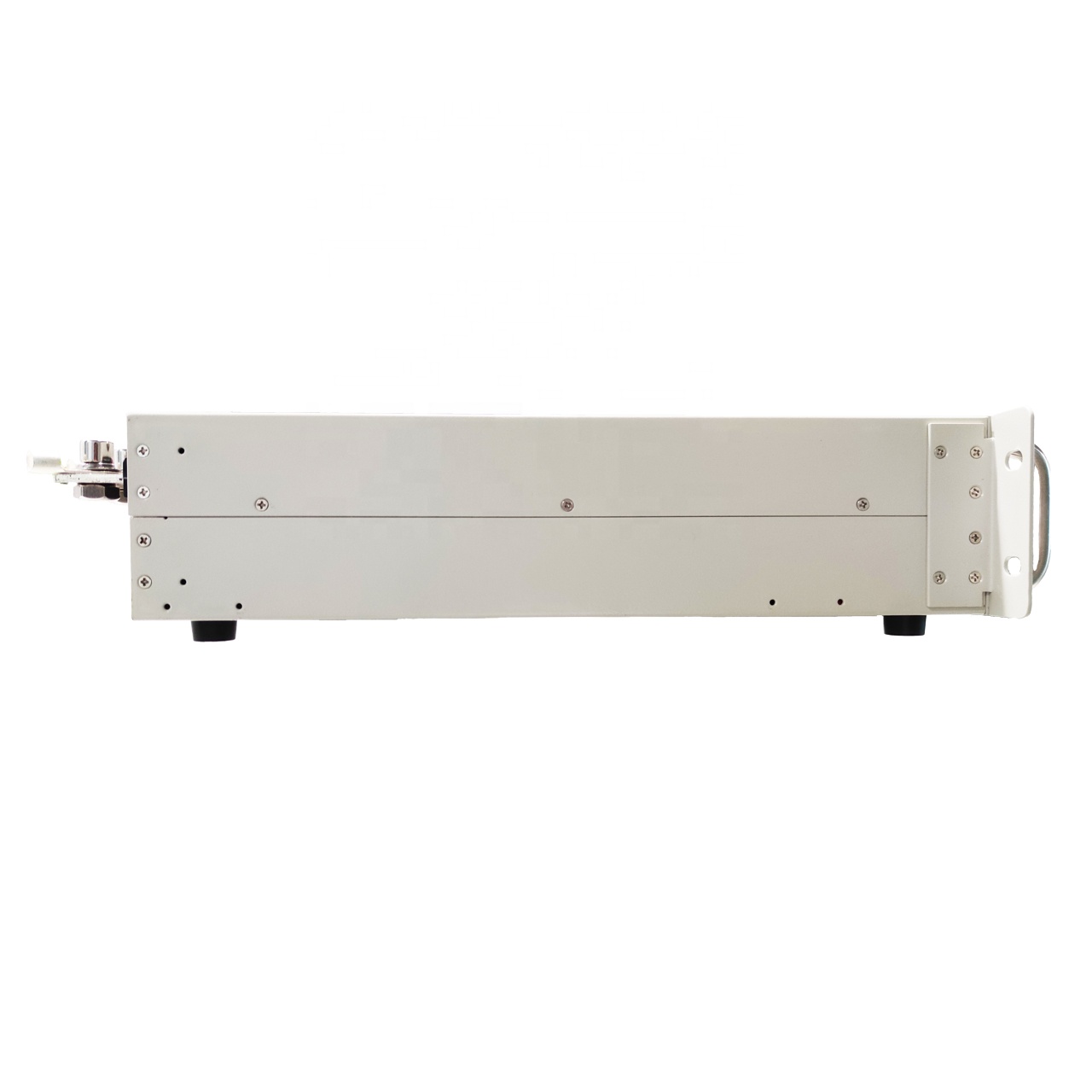

Programmable Dc Electronic Load 150V120A600W
Product Description
⚡
Key Features
✓
High accuracy and resolution
✓
Support remote control
✓
CV / CC / CP / CR working model
✓
Support auto testing and dynamic testing
✓
OVP / OCP / VPP / OTP and Reverse polarity protection
✓
Standard RS232 interface
✓
With power-off memory function
⚙
Applications
▪
Battery / Energy Storage / Ultra Capacitor Testing and Validation
▪
Fuel Cell Durability, Lifetime and Performance Characterization
▪
DC Power Supply and Battery Charger Validation and Testing
▪
Single Cell and Short Stack Fuel Cell Characterization
▪
EIS / Impedance Measurement
▪
Defense / Aerospace and Avionics ATE, Electronics and Power Sources Testing
▪
Thin-film, Single- & Poly-silicone PV Design Validation and Testing
▪
Power Supply, Power Electronics / Components Validation and Testing
▪
Industrial Applications: Generator / Alternator, UPS / Battery Banks, Datacenter Backup Power, and Automotive Power Electronics & Components
▪
Lab / Bench-top Applications: Ideal for R&D, Testing and QC Engineers
▪
Power Electronics / Components, DC Distribution & DC-DC Converters
▪
Universities & National Research Labs
📷
Product Description
📊
Specification
| Parameter Specifications | |
|---|---|
| Model | Sp8713 |
| Input | AC 220V ± 10%, 50/60Hz |
| Load Parameters |
Voltage: 1-150V Current: 0-120A Power: 1200W Resistance: 0.1Ω-10000Ω |
| Measurement Resolution |
Current: 0.001A Voltage: 0.001V Resistance: 0.001Ω Power: 0.001W |
| Measurement Accuracy |
Current: Imax ± 0.05% + 4mA (24bit A/D, 15ppm/°C) Voltage: Vmax ± 0.05% + 4mV (24bit A/D, 15ppm/°C) |
| Control Accuracy |
Current: Imax ± 0.1% + 4mA (16bit D/A, 15ppm/°C) Voltage: Vmax ± 0.1% + 4mV (16bit D/A, 15ppm/°C) Resistance: Rmax ± 0.1% + 0.1Ω (16bit D/A, 15ppm/°C) Power: Pmax ± 0.1% + 0.1W (16bit D/A, 15ppm/°C) |
| Protection | OVP, OTP, OPP, OCP |
| Interface | RS232 |
| Working Models | CC / CV / CR / CP |
| General Functions | Dynamic testing (up to 10KHZ), Short circuit testing, High accuracy battery testing (AH, WH) |
| Auto Testing Functions | Over current protect time testing, Resistance testing, List testing |
| Optional Interface | External trigger, PASS, FAIL, OUTPUT, Remove sense |
| Working Temperature | 0 ~ 30°C at full load, 10 ~ 60%RH |
| Insulation Strength | DC Input to Enclosure: ±250VDC |
| Insulation Resistance |
DC Input to Enclosure: >20MΩ, 500VDC AC Input to Enclosure: >20MΩ, 500VDC |
| Dimension (mm) | 480W x 2U x 400D |
| Weight (Kg) | 8kg |
?
