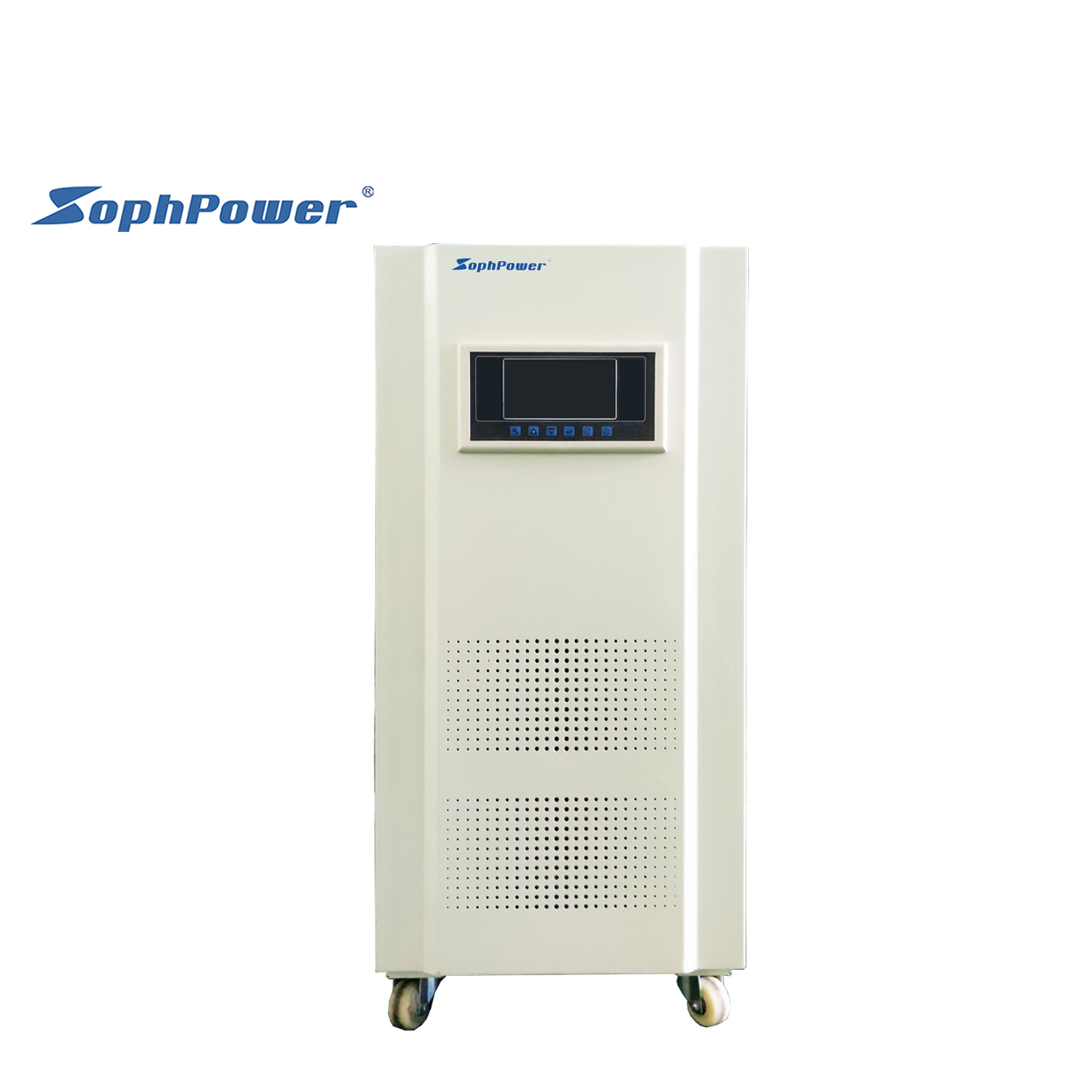

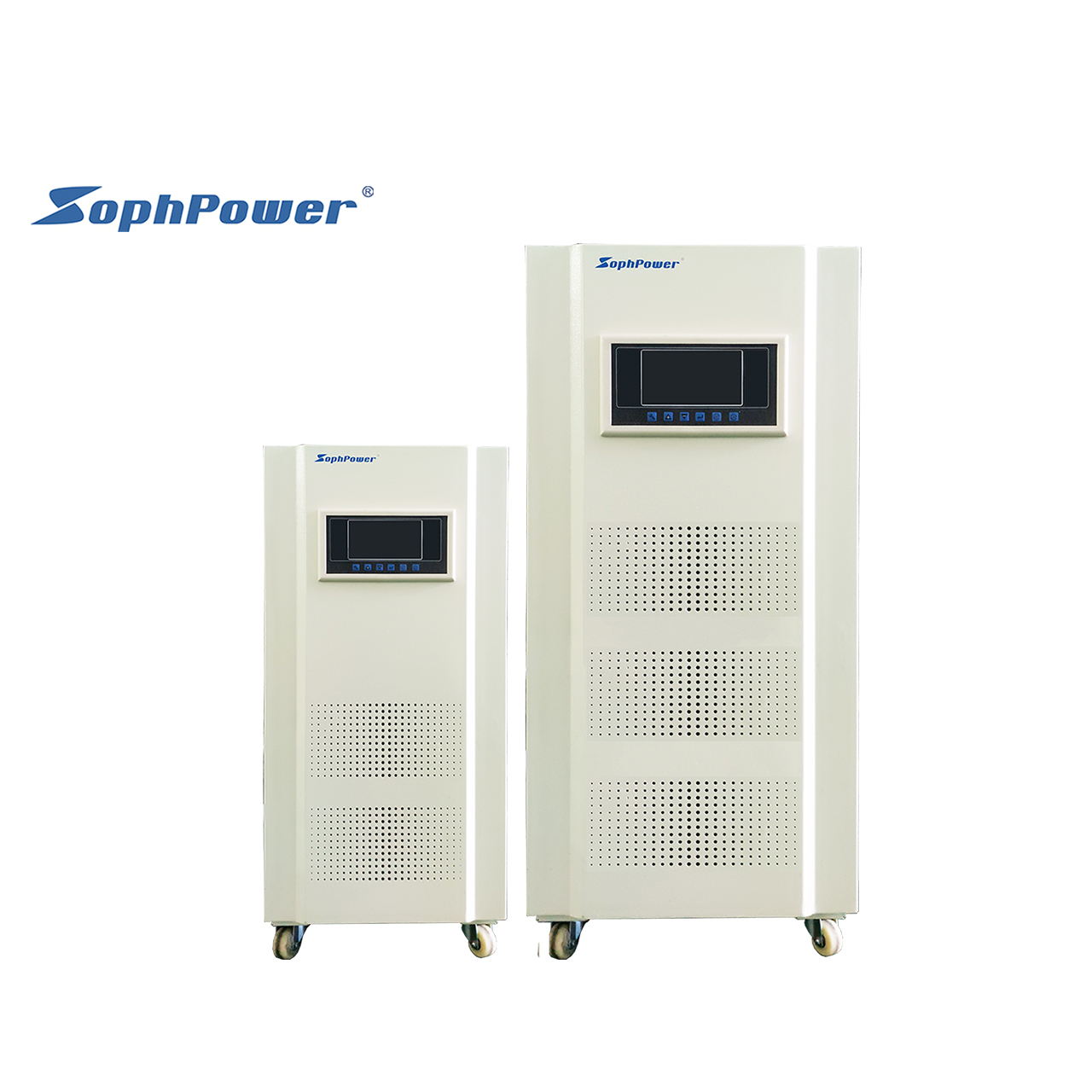

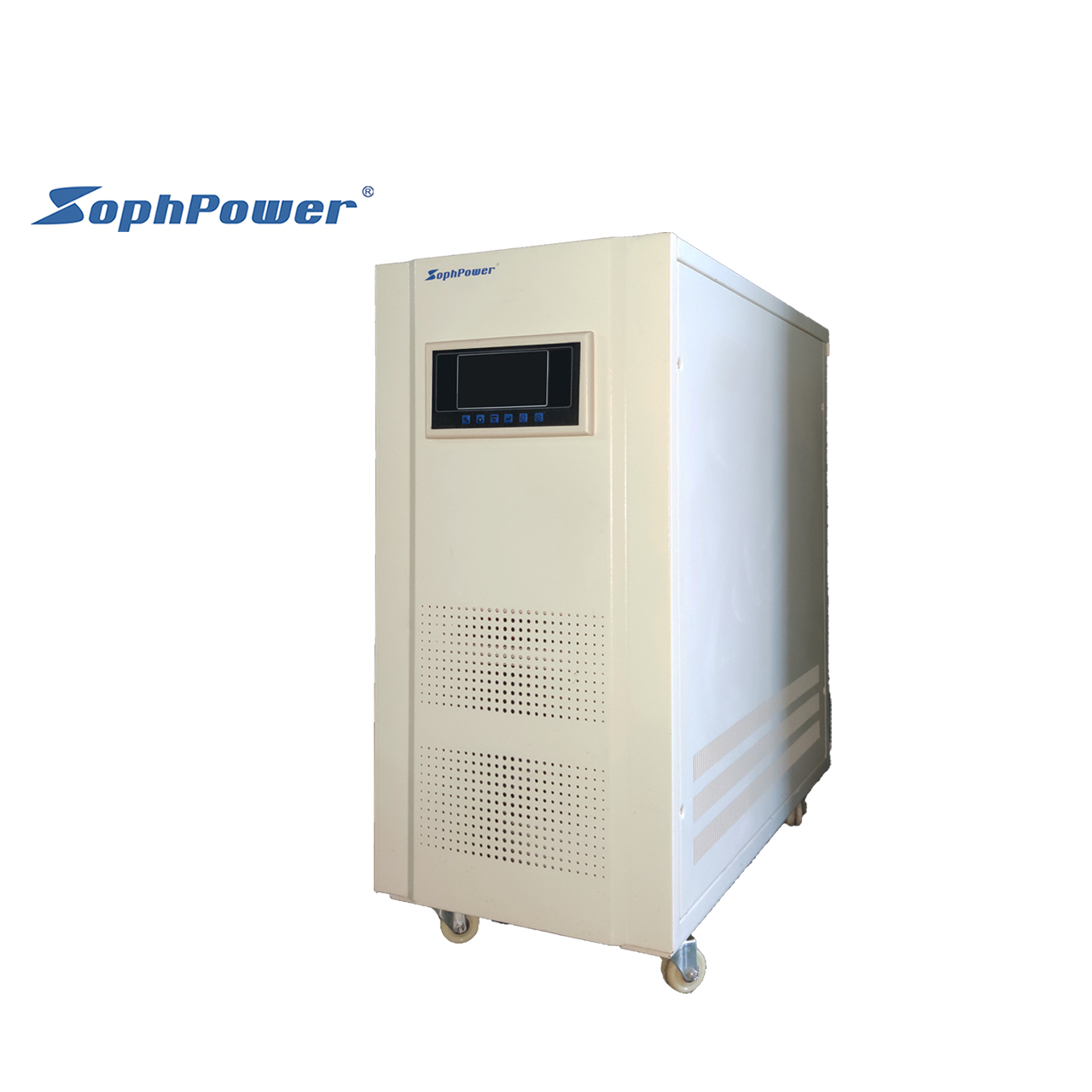

60kVA Automatic Voltage Regulator/stabilizers
Product Description
Features
- Large screen LCD is used to display the working voltage, working current and various working states dynamically.
- Anti-interference, strong purifying ability, no wave distortion.
- Response time ≤ 40ms, compatible with all loads.
- Three phases are regulated independently to ensure the balance of output voltage.
- Modular design, assembly, debugging, replacement and maintenance are simple and quick.
Applications
Aerospace & Defense
Industrial Power Supply
IT / SMT Production Line
Medical Industry
Transportation
Communication Industry
Specs
| Model | AVR-40K | AVR-50K | AVR-60K |
|---|---|---|---|
| Capacity (kVA) | 40kVA | 50kVA | 60kVA |
| Control circuit | SCR contactless (CPU digital circuit) | ||
| Input Specifications | |||
| Input Voltage | 3 Φ 3W+N; 380VAC | ||
| Voltage Range | 380VAC ± 15% | ||
| Frequency | 50/60 Hz | ||
| Output Specifications | |||
| Output Voltage | 3 Φ 3W+N; 380VAC | ||
| Accuracy | ±1% (3%, Opt. 5%) | ||
| Power Factor | PF ≥ 0.8 | ||
| Efficiency | ≥ 98% | ||
| Response Time | ≤ 40ms | ||
| Delay Output | ≤ 5s (Opt.) | ||
| THD | ≤ 1% | ||
| Over-load Capacity | 150%-90s, 200%-20s | ||
| Protection | |||
| Over Voltage | Output > 110% rated voltage, cut off input power in 3~5s | ||
| Under Voltage | Output < 115% rated voltage, cut off input power in 3~5s | ||
| Over Load | Cut off input power within 5s | ||
| Phase Dislocation | Alarm and cut off input power | ||
| Phase Lack | Alarm and cut off input power | ||
| Short Circuit | Cut off input power | ||
| By-pass | Manual or Automatic bypass switch | ||
| Generally | |||
| LCD Display | Input Voltage, Output Voltage, Output Current, Working Status | ||
| Cooling | Air cooling | ||
| Insulation Resistance | ≥ 2MΩ | ||
| Insulation Grade | 2000VAC | ||
| Noise | < 65dB | ||
| Temperature | 0°C - 45°C | ||
| Relative Humidity | 20% - 90% (non-condensation) | ||
| Size (W*H*D) mm | 380 * 852 * 792 | ||
| Weight (Kg) | 100 | 130 | 150 |
About us
Related Products
Choose and Buy Information
| Model | Specification |
|---|---|
| AVR-20K | Voltage regulator (three phase input, three phase output. 20kVA) |
| AVR-30K | Voltage regulator (three phase input, three phase output. 30kVA) |
| AVR-50K | Voltage regulator (three phase input, three phase output. 50kVA) |
| AVR-60K | Voltage regulator (three phase input, three phase output. 60kVA) |
| AVR-80K | Voltage regulator (three phase input, three phase output. 80kVA) |
| AVR-100K | Voltage regulator (three phase input, three phase output. 100kVA) |
| AVR-120K | Voltage regulator (three phase input, three phase output. 120kVA) |
| AVR-150K | Voltage regulator (three phase input, three phase output. 150kVA) |
| AVR-200K | Voltage regulator (three phase input, three phase output. 200kVA) |
| AVR-250K | Voltage regulator (three phase input, three phase output. 250kVA) |
| AVR-300K | Voltage regulator (three phase input, three phase output. 300kVA) |
| AVR-400K | Voltage regulator (three phase input, three phase output. 400kVA) |
| AVR-500K | Voltage regulator (three phase input, three phase output. 500kVA) |
| AVR-600K | Voltage regulator (three phase input, three phase output. 600kVA) |
| AVR-800K | Voltage regulator (three phase input, three phase output. 800kVA) |
| AVR-1000K | Voltage regulator (three phase input, three phase output. 1000kVA) |
Frequently Asked Questions
What are your terms of packing?
Generally, the inner packaging is film, and the outer packaging is standard export carton or wooden case.
What are your terms of payment?
T/T 30% as deposit, and 70% can be paid before delivery. We will show you photos of the products and packages before you pay the balance.
What are your terms of delivery?
EXW, FOB, CIF, or Express delivery.
How about your delivery time?
Generally, it takes 10-20 working days after receiving your deposit or full payment. The specific delivery time depends on the items and quantity of your order.
Do you test all your goods before delivery?
Yes, we perform precise testing on all products before shipment to ensure quality.
Are you a trading company or manufacturer?
We are a professional manufacturer specialized in frequency converters and voltage regulators for years.
