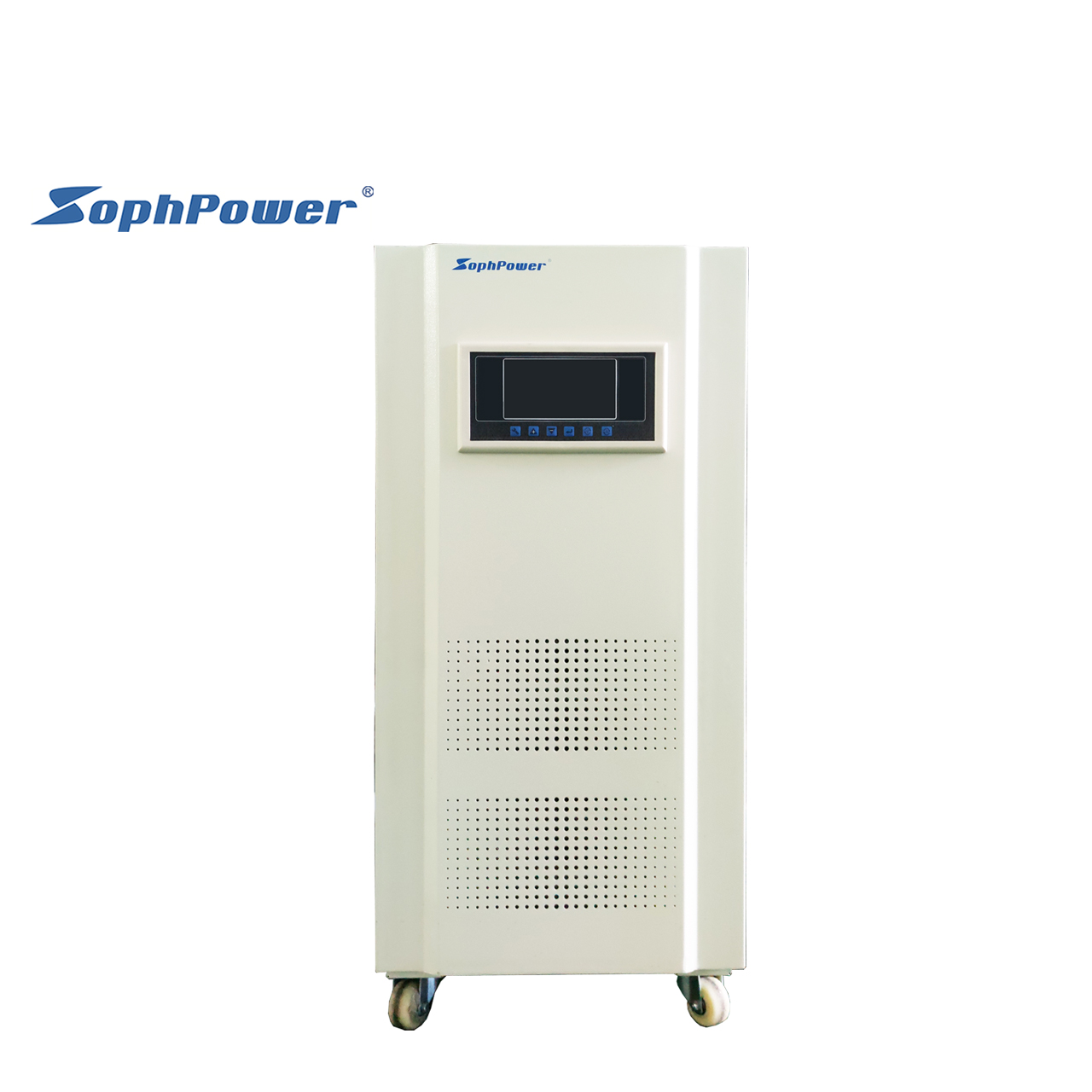

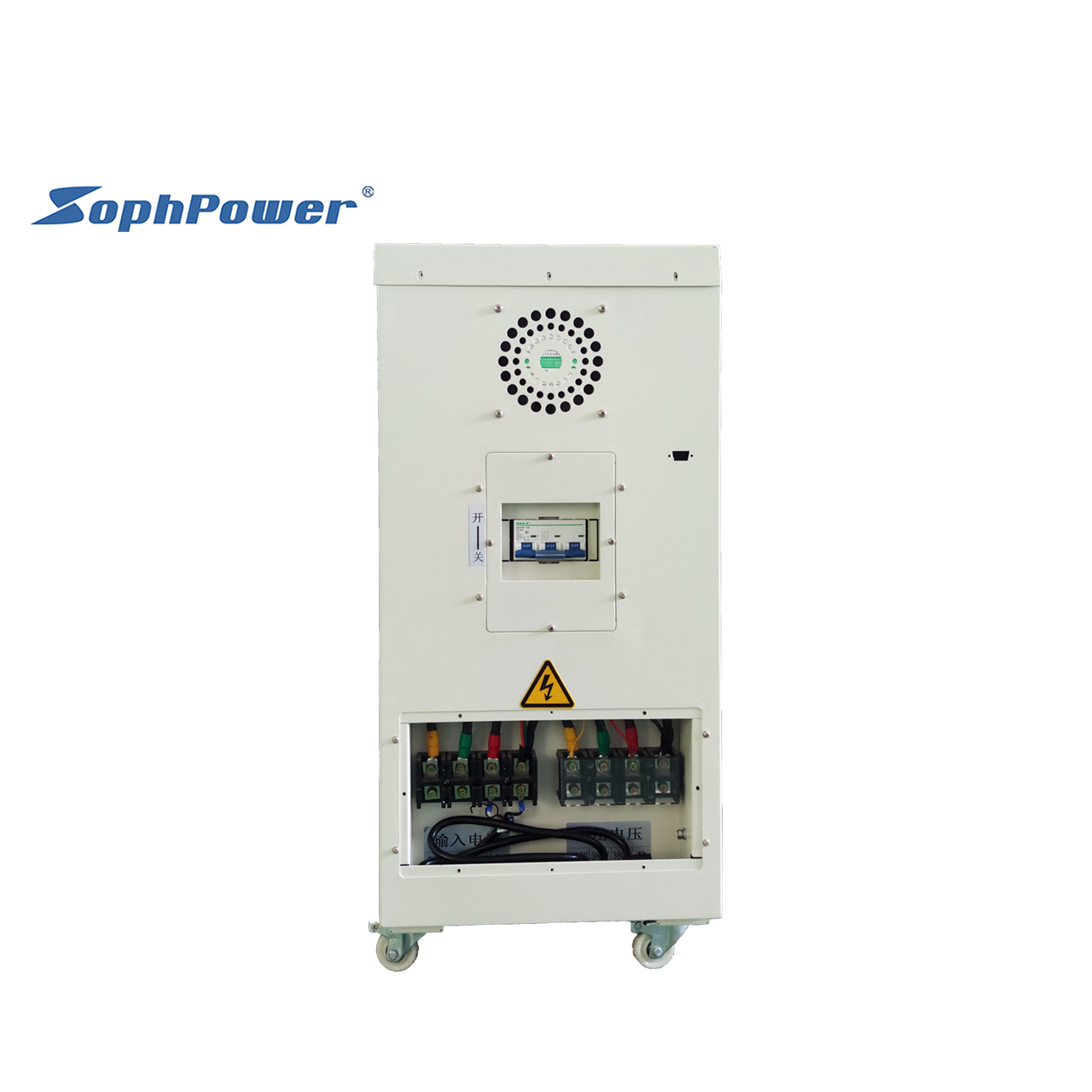

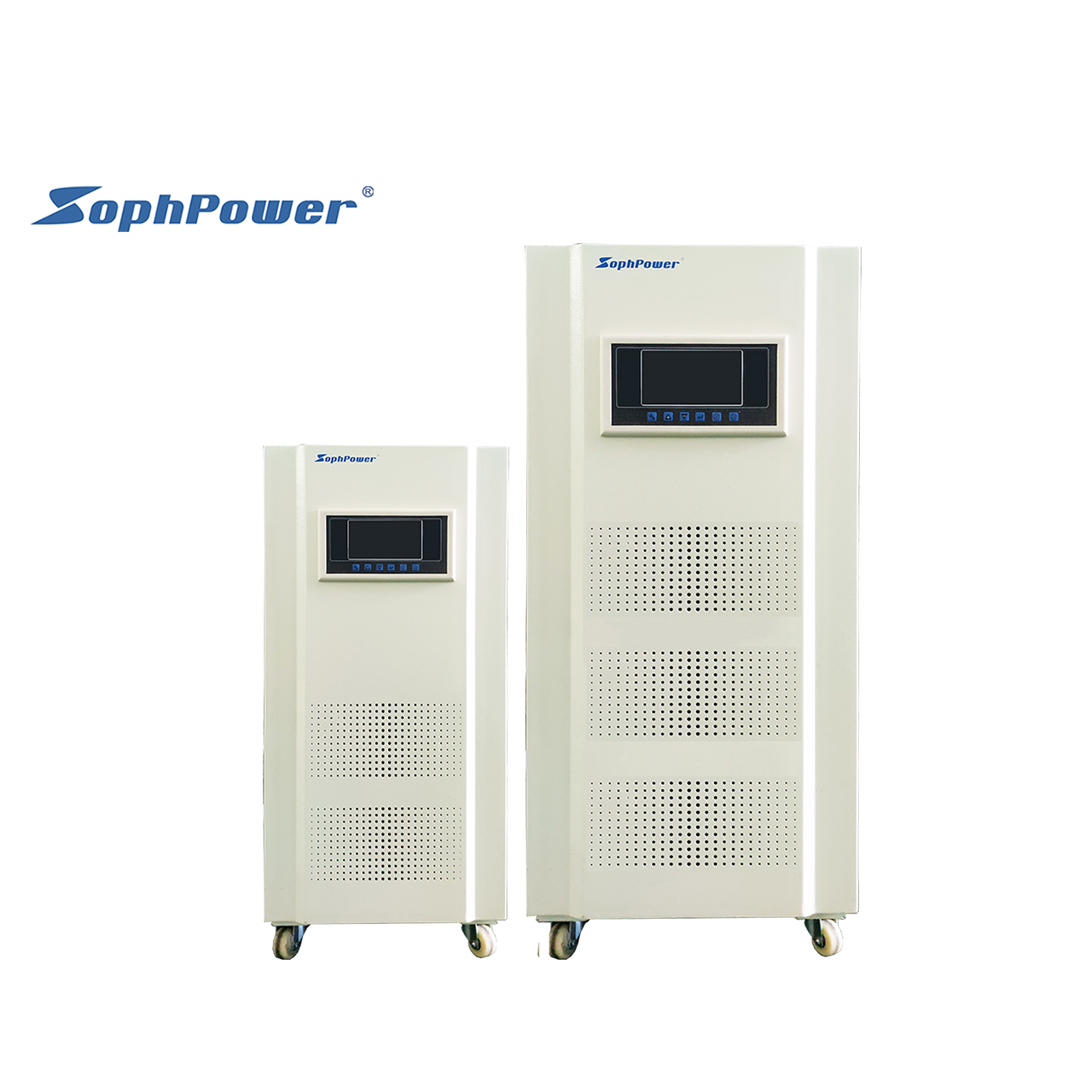

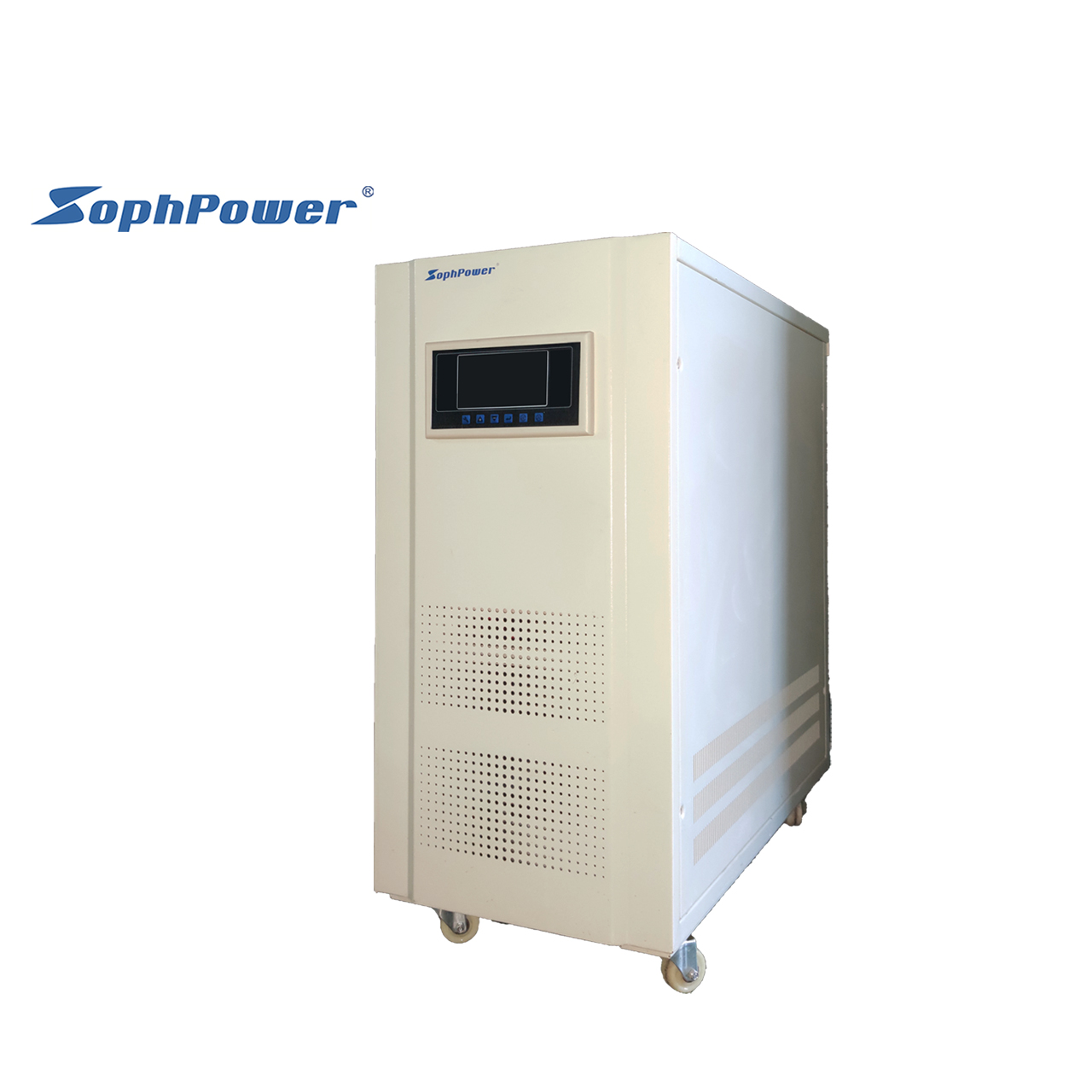

Factory price 20kVA automatic voltage regulator
Product Description
Key Features
Large screen LCD is used to display the working voltage, working current and various working states dynamically.
Anti-interference, strong purifying ability, no wave distortion.
Response time ≤ 40ms, compatible with all loads.
Three phases are regulated independently to ensure the balance of output voltage.
Modular design, assembly, debugging, replacement and maintenance are simple and quick.
Applications
Aerospace & Defense
Industrial Power Supply
IT / SMT Production Line
Medical Industry
Transportation
Communication Industry
Specifications
| Model | AVR-10K | AVR-20K | AVR-30K |
|---|---|---|---|
| Capacity(kVA) | 10kVA | 20kVA | 30kVA |
| Control circuit | SCR contactless (CPU digital circuit) | ||
| Input Specifications | |||
| Input Voltage | 3 Phase 3W+N; 380VAC | ||
| Voltage Range | 380VAC ± 15% | ||
| Frequency | 50/60 Hz | ||
| Output Specifications | |||
| Output Voltage | 3 Phase 3W+N; 380VAC | ||
| Accuracy | ±1% (3%, Opt. 5%) | ||
| Power Factor | PF≥0.8 | ||
| Efficiency | ≥98% | ||
| Response Time | ≤40ms | ||
| Delay Output | ≤5s (Opt.) | ||
| THD | ≤1% | ||
| Over-load Capacity | 150%-90s, 200%-20s | ||
| Protection | |||
| Over Voltage | Output>110% rated voltage, cut off input power in 3~5s | ||
| Under Voltage | Output<115% rated voltage, cut off input power in 3~5s | ||
| Over Load | Cut off input power within 5s | ||
| Phase Dislocation | Alarm and cut off input power | ||
| Phase Lack | Alarm and cut off input power | ||
| Short Circuit | Cut off input power | ||
| By-pass | Manual or Automatic bypass switch | ||
| General Parameters | |||
| LCD Display | Input Voltage, Output Voltage, Output Current, Working Status | ||
| Cooling | Air cooling | ||
| Insulation Resistance | ≥2MΩ | ||
| Insulation Grade | 2000VAC | ||
| Noise | <65dB | ||
| Temperature | 0℃ - 45℃ | ||
| Relative Humidity | 20%-90% (non-condensation) | ||
| Size (W*H*D) mm | 380*852*792 | ||
| Weight (Kg) | 100 | 130 | 150 |
Related Products
ADC3603 Programmable Linear DC Power Supply
AFC-330 30KVA Frequency Converter/AC Power Source
DSP50 50kva Programmable High Power DC Power Supply
Model and Specifications Selection Guide
| Model | Specification Details |
|---|---|
| AVR-20K | Voltage regulator (three phase input, three phase output. 20kVA) |
| AVR-30K | Voltage regulator (three phase input, three phase output. 30kVA) |
| AVR-50K | Voltage regulator (three phase input, three phase output. 50kVA) |
| AVR-60K | Voltage regulator (three phase input, three phase output. 60kVA) |
| AVR-80K | Voltage regulator (three phase input, three phase output. 80kVA) |
| AVR-100K | Voltage regulator (three phase input, three phase output. 100kVA) |
| AVR-120K | Voltage regulator (three phase input, three phase output. 120kVA) |
| AVR-150K | Voltage regulator (three phase input, three phase output. 150kVA) |
| AVR-200K | Voltage regulator (three phase input, three phase output. 200kVA) |
| AVR-250K | Voltage regulator (three phase input, three phase output. 250kVA) |
| AVR-300K | Voltage regulator (three phase input, three phase output. 300kVA) |
| AVR-400K | Voltage regulator (three phase input, three phase output. 400kVA) |
| AVR-500K | Voltage regulator (three phase input, three phase output. 500kVA) |
| AVR-600K | Voltage regulator (three phase input, three phase output. 600kVA) |
| AVR-800K | Voltage regulator (three phase input, three phase output. 800kVA) |
| AVR-1000K | Voltage regulator (three phase input, three phase output. 1000kVA) |
Frequently Asked Questions
What are your terms of packing?
Generally, the inner packaging consists of a protective film, and the outer packaging is a standard export carton or wooden case.
What are your terms of payment?
T/T 30% as deposit, and the remaining 70% can be paid before delivery. We will provide photos of the products and packages before you pay the balance.
What are your terms of delivery?
Our delivery terms include EXW, FOB, CIF, or Express delivery.
How long is the delivery time?
Generally, it takes 10 to 20 working days after receiving your deposit or full payment. The specific delivery time depends on the items and quantity of your order.
Can you produce items based on samples?
Yes, we can manufacture products according to your physical samples or technical drawings.
Do you test all your goods before delivery?
Yes, we perform precise testing on all goods to ensure quality before dispatch.
