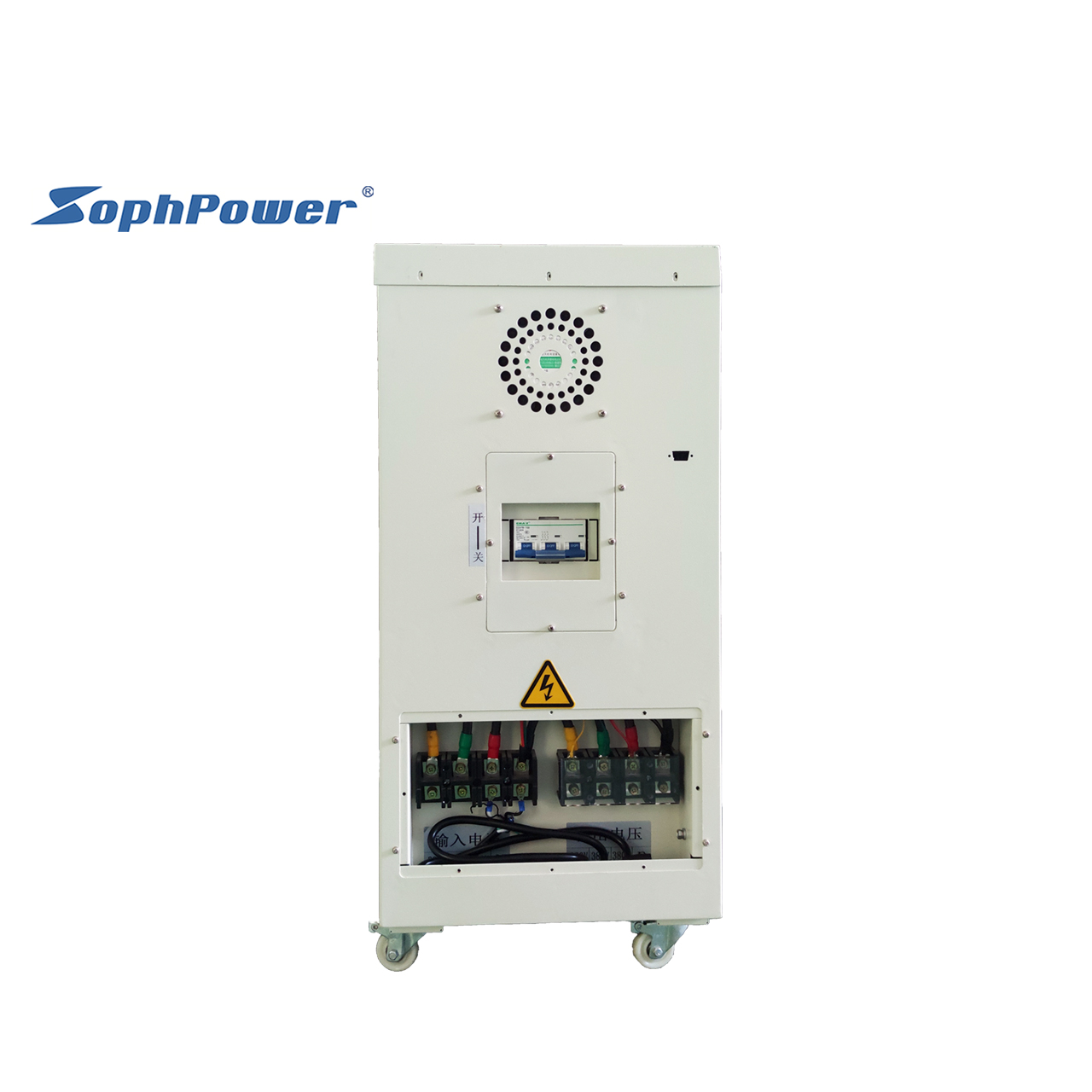

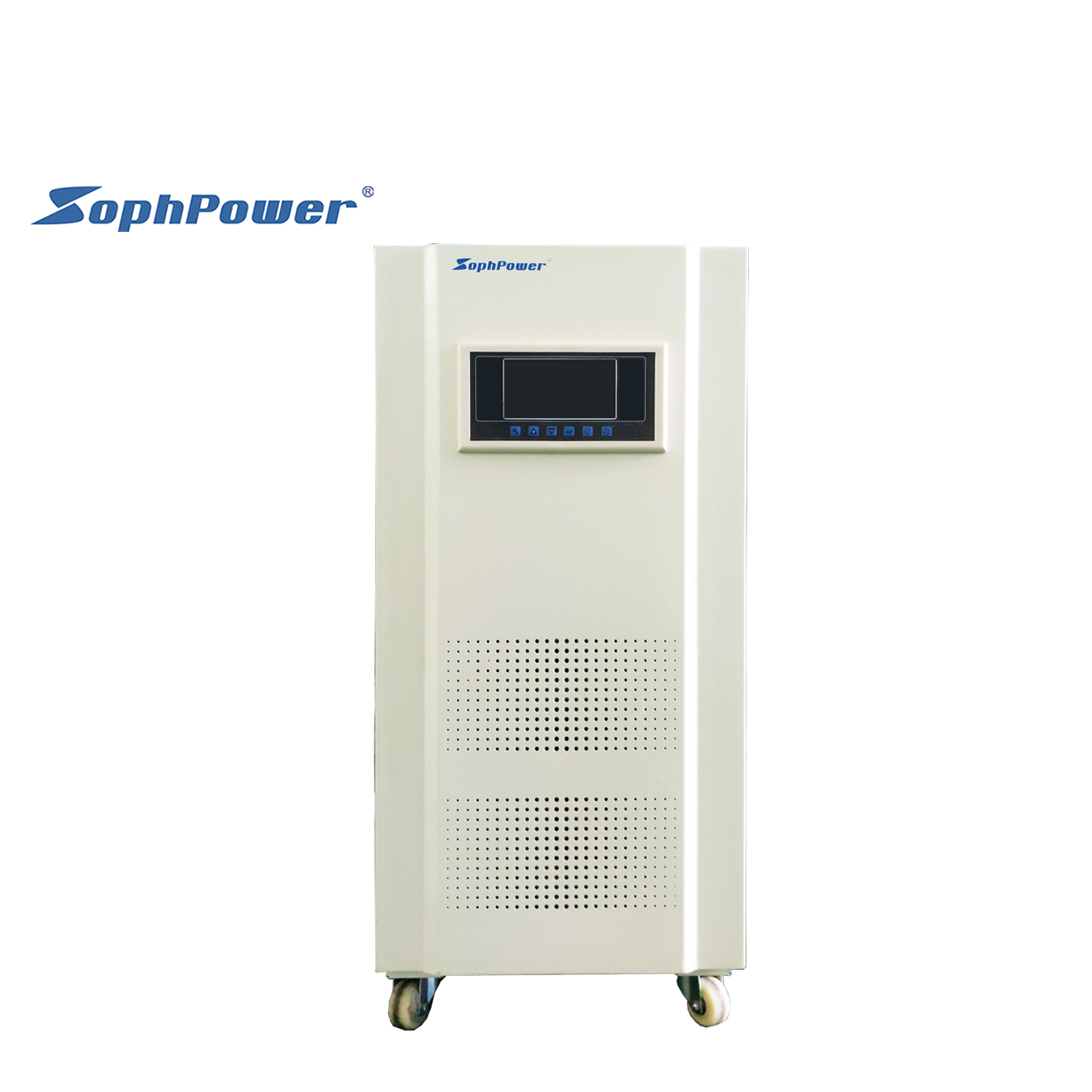

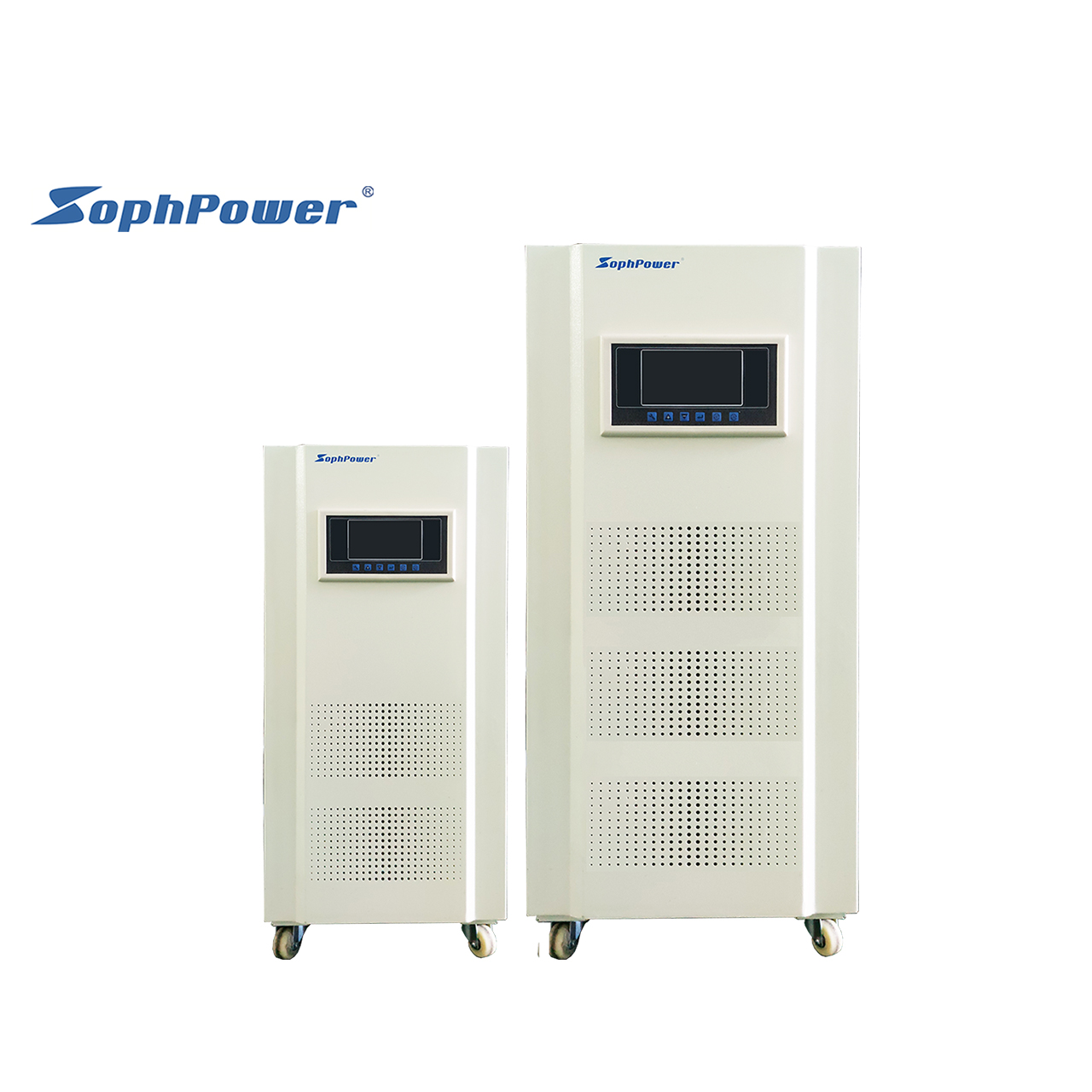

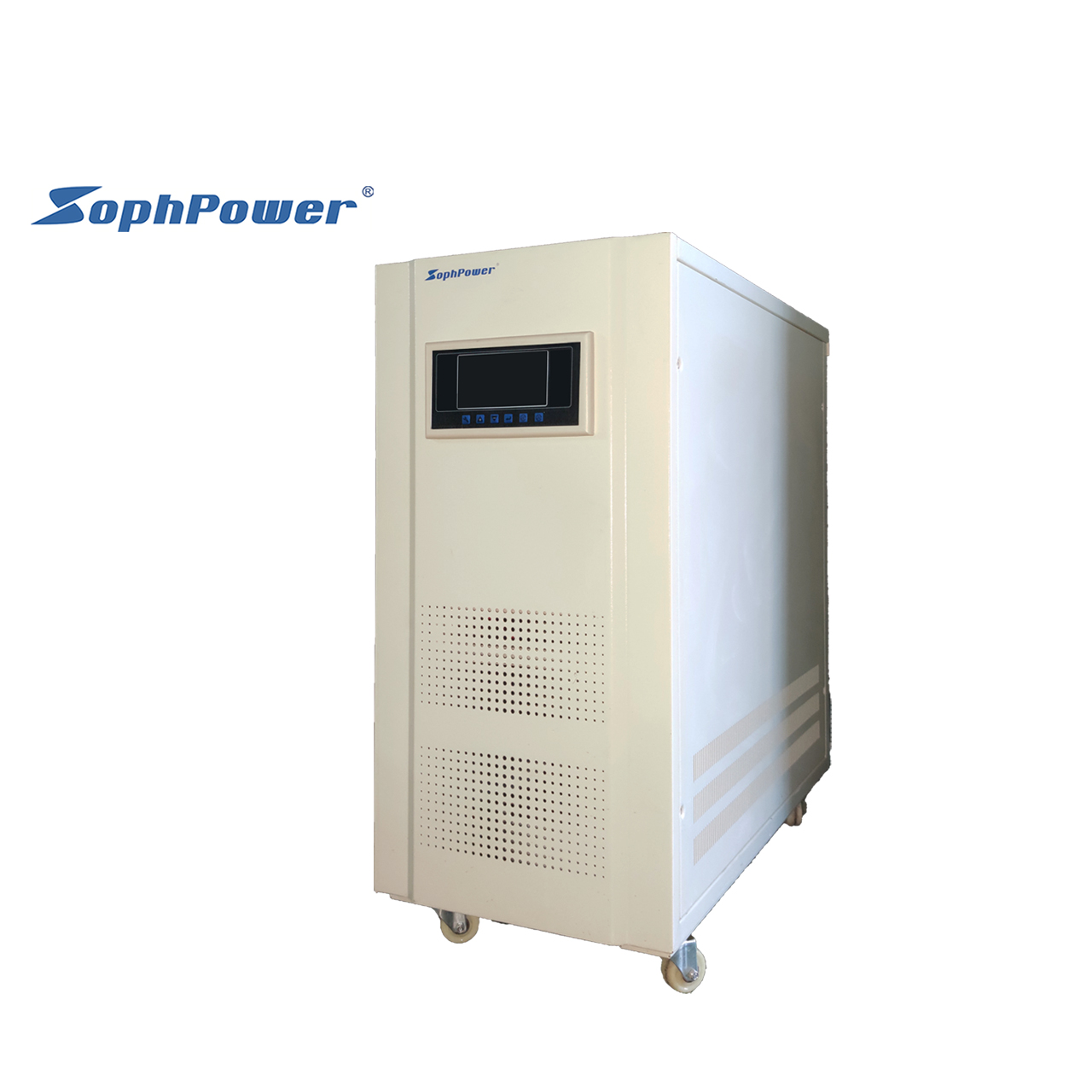

100kVA 3 phase automatic voltage regulator/stabilizers
Product Description
Key Features
-
1Large screen LCD is used to display the working voltage, working current and various working states dynamically.
-
2Anti-interference, strong purifying ability, no wave distortion.
-
3Response time ≤ 40ms, compatible with all loads.
-
4Three phases are regulated independently to ensure the balance of output voltage.
-
5Modular design, assembly, debugging, replacement and maintenance are simple and quick.
Applications
01
Aerospace & Defense
02
Industrial Power Supply
03
IT / SMT Production Line
04
Medical Industry
05
Transportation
06
Communication Industry
Technical Specs
| Model | AVR-100K | AVR-120K | AVR-150K |
|---|---|---|---|
| Capacity(kVA) | 100kVA | 120kVA | 150kVA |
| Control circuit | SCR contactless (CPU digital circuit) | ||
| Input Specifications | |||
| Input Voltage | 3 ϼ 3W+N; 380VAC | ||
| Voltage Range | 380VAC ± 15% | ||
| Frequency | 50/60 Hz | ||
| Output Specifications | |||
| Output Voltage | 3 ϼ 3W+N; 380VAC | ||
| Accuracy | ±1% (3%, Opt. 5%) | ||
| Power Factor | PF≥0.8 | ||
| Efficiency | ≥98% | ||
| Response Time | ≤40ms | ||
| Delay Output | ≤5s (Opt.) | ||
| THD | ≤1% | ||
| Over-load Capacity | 150%-90s, 200%-20s | ||
| Protection | |||
| Over Voltage | Output>110% rated voltage, cut off input power in 3~5s | ||
| Under Voltage | Output<115% rated voltage, cut off input power in 3~5s | ||
| Over Load | Cut off input power within 5s | ||
| Phase Dislocation | Alarm and cut off input power | ||
| Phase Lack | Alarm and cut off input power | ||
| Short Circuit | Cut off input power | ||
| By-pass | Manual or Automatic bypass switch | ||
| Generally | |||
| LCD Display | Input Voltage, Output Voltage, Output Current, Working Status | ||
| Cooling | Air cooling | ||
| Insulation Resistance | ≥2MΩ | ||
| Insulation Grade | 2000VAC | ||
| Noise | <65dB | ||
| Temperature | 0°C-45°C | ||
| Relative Humidity | 20%-90% (non-condensation) | ||
| Size (W*H*D)mm | 430*780*1170 | ||
| Weight (Kg) | 196 | 254 | 270 |
Related Products
ADC3603 Programmable Linear Dc Power Supply

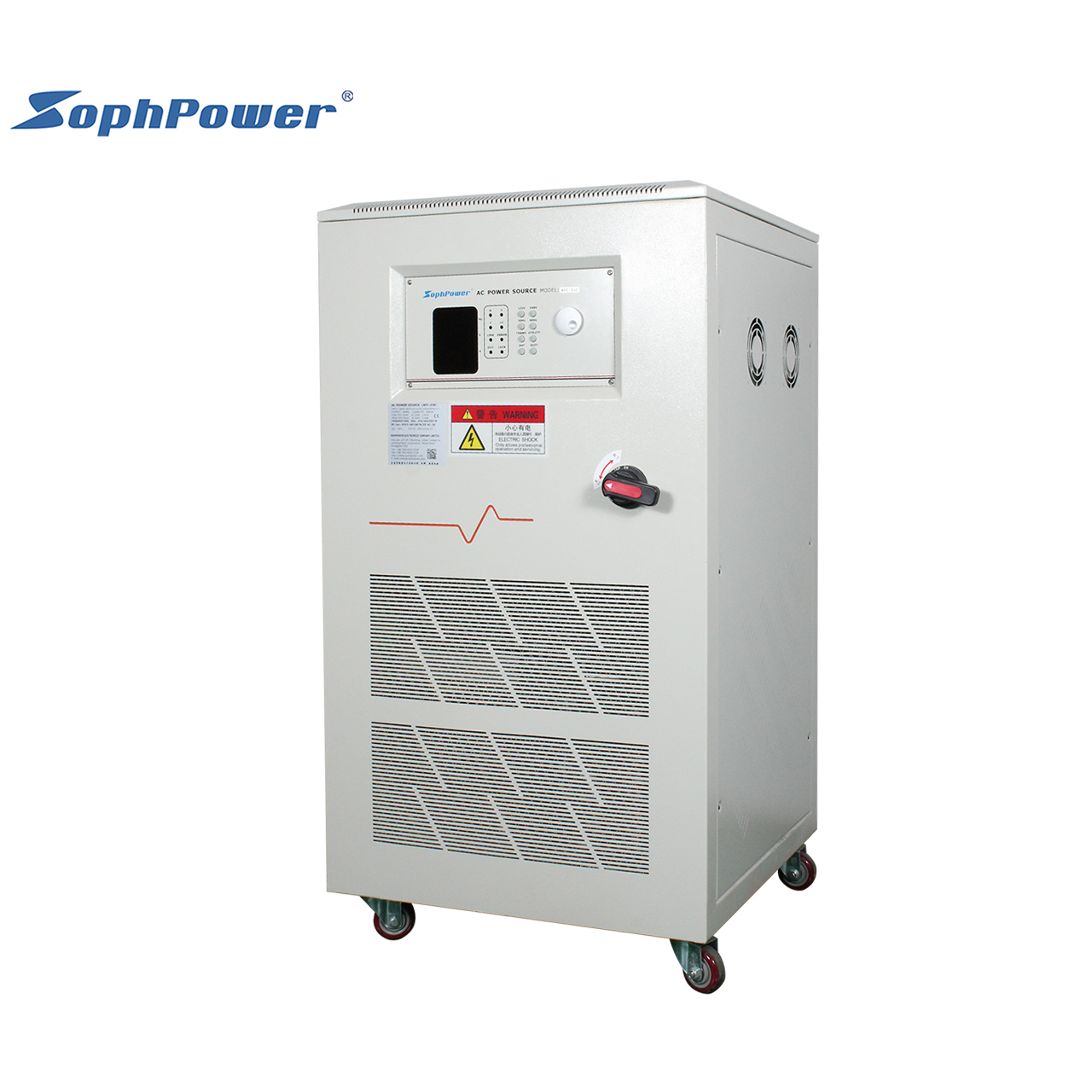

AFC-330 30KVA Frequency Converter/Ac Power Source
DSP50 50kva Programmable High Power Dc Power Supply
Ordering Information
| Model | Specification |
|---|---|
| AVR-20K | Voltage regulator ( three phase input, three phase output. 20kVA) |
| AVR-30K | Voltage regulator ( three phase input, three phase output. 30kVA) |
| AVR-50K | Voltage regulator ( three phase input, three phase output. 50kVA) |
| AVR-60K | Voltage regulator ( three phase input, three phase output. 60kVA) |
| AVR-80K | Voltage regulator ( three phase input, three phase output. 80kVA) |
| AVR-100K | Voltage regulator ( three phase input, three phase output. 100kVA) |
| AVR-120K | Voltage regulator ( three phase input, three phase output. 120kVA) |
| AVR-150K | Voltage regulator ( three phase input, three phase output. 150kVA) |
| AVR-200K | Voltage regulator ( three phase input, three phase output. 200kVA) |
| AVR-250K | Voltage regulator ( three phase input, three phase output. 250kVA) |
| AVR-300K | Voltage regulator ( three phase input, three phase output. 300kVA) |
| AVR-400K | Voltage regulator ( three phase input, three phase output. 400kVA) |
| AVR-500K | Voltage regulator ( three phase input, three phase output. 500kVA) |
| AVR-600K | Voltage regulator ( three phase input, three phase output. 600kVA) |
| AVR-800K | Voltage regulator ( three phase input, three phase output. 800kVA) |
| AVR-1000K | Voltage regulator ( three phase input, three phase output. 1000kVA) |
