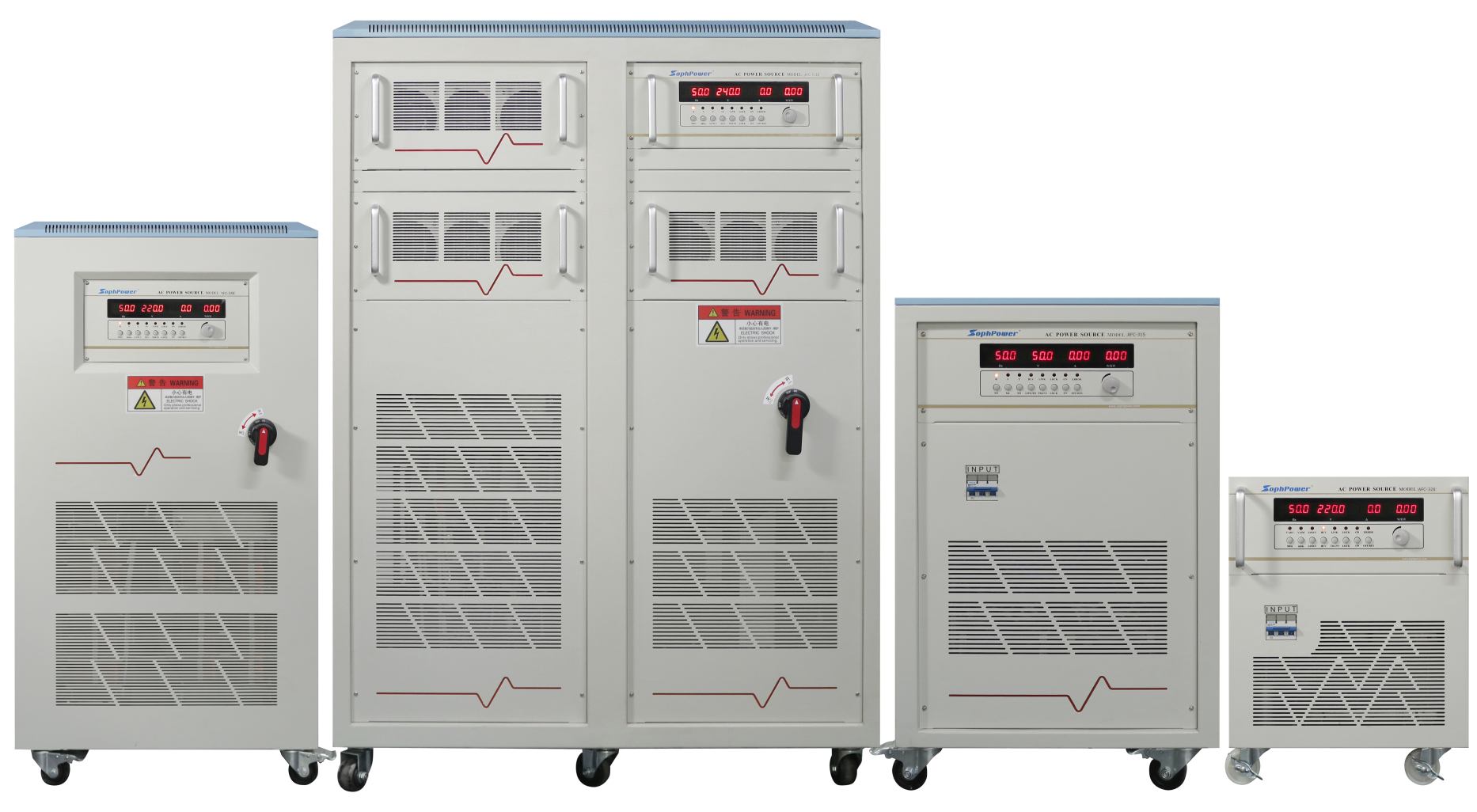

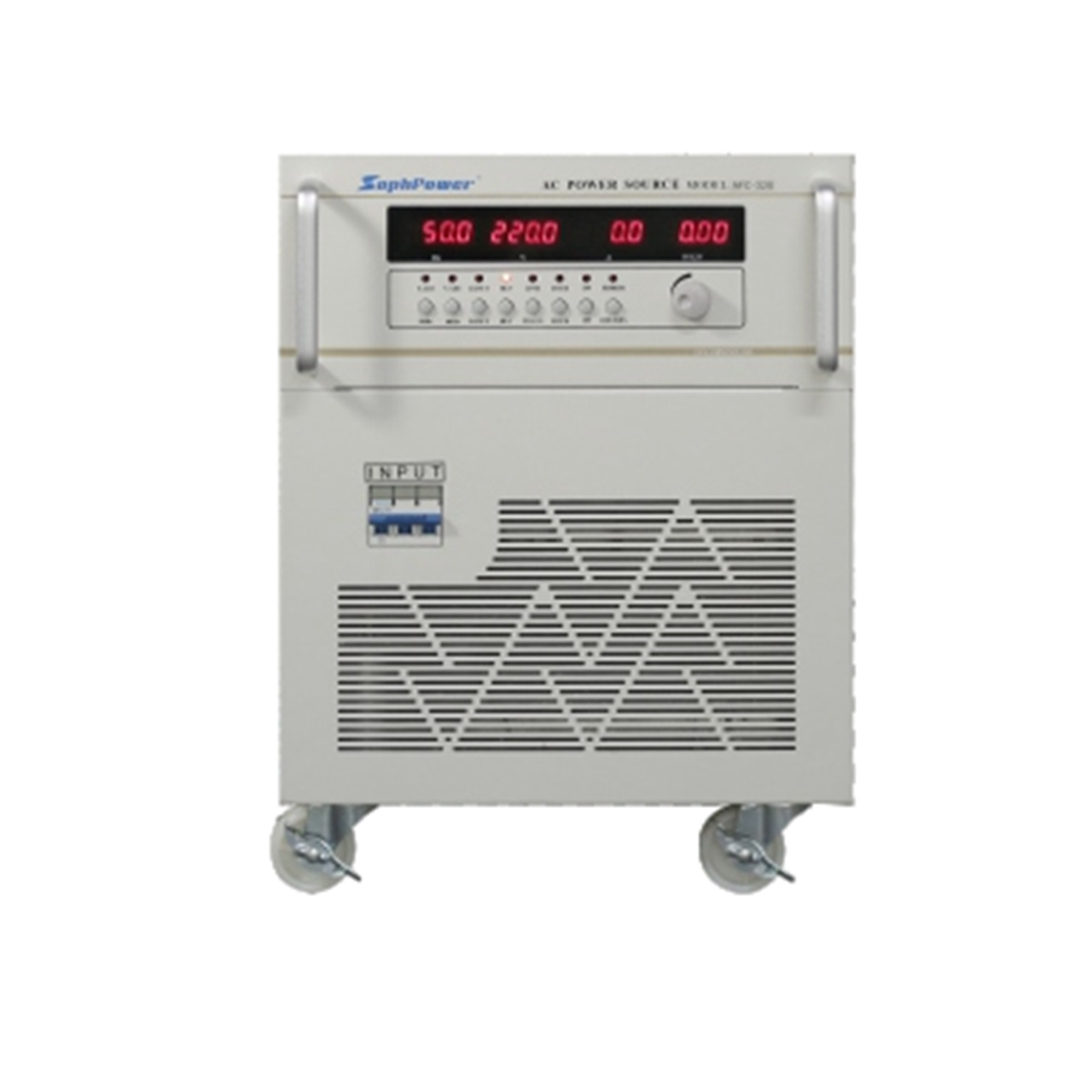

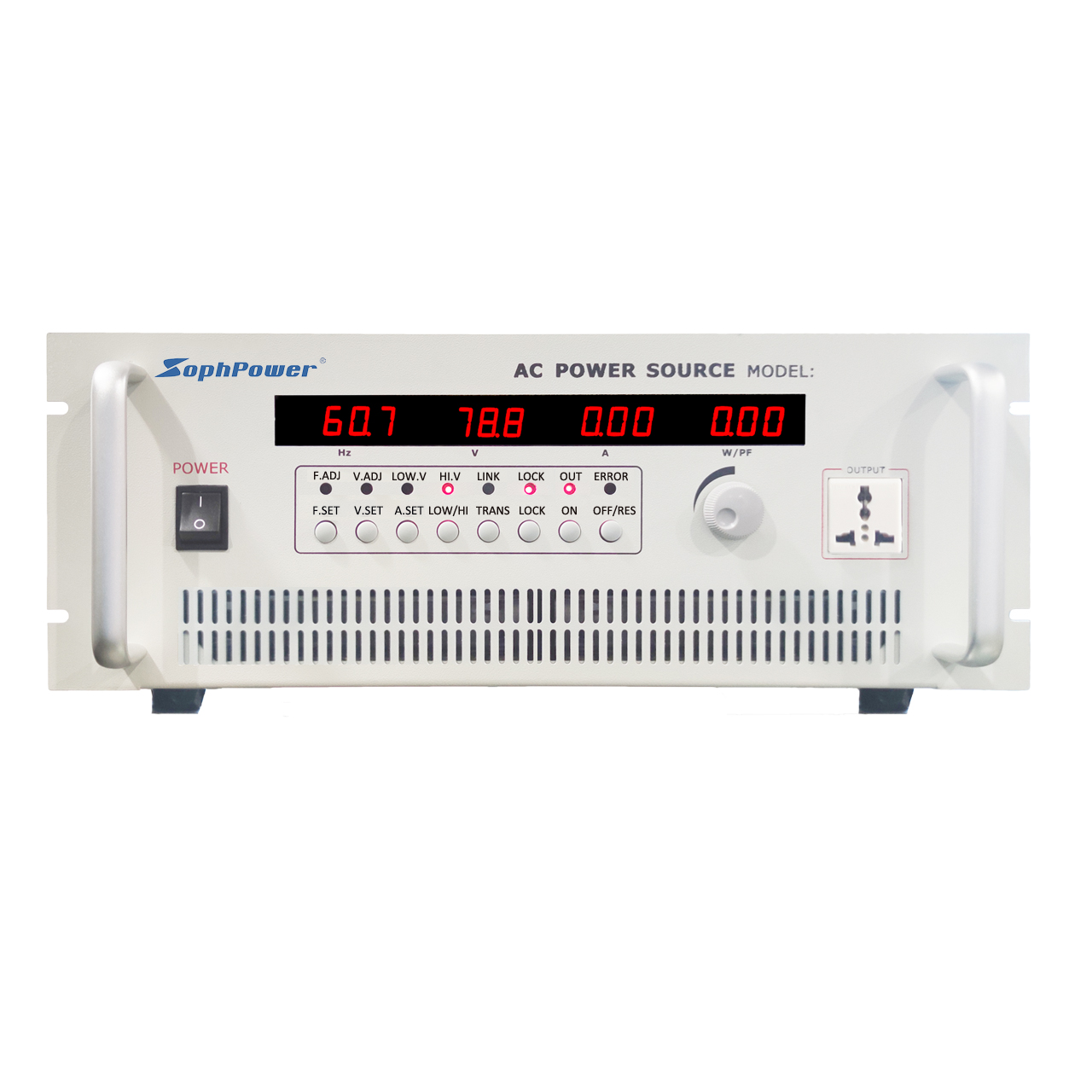

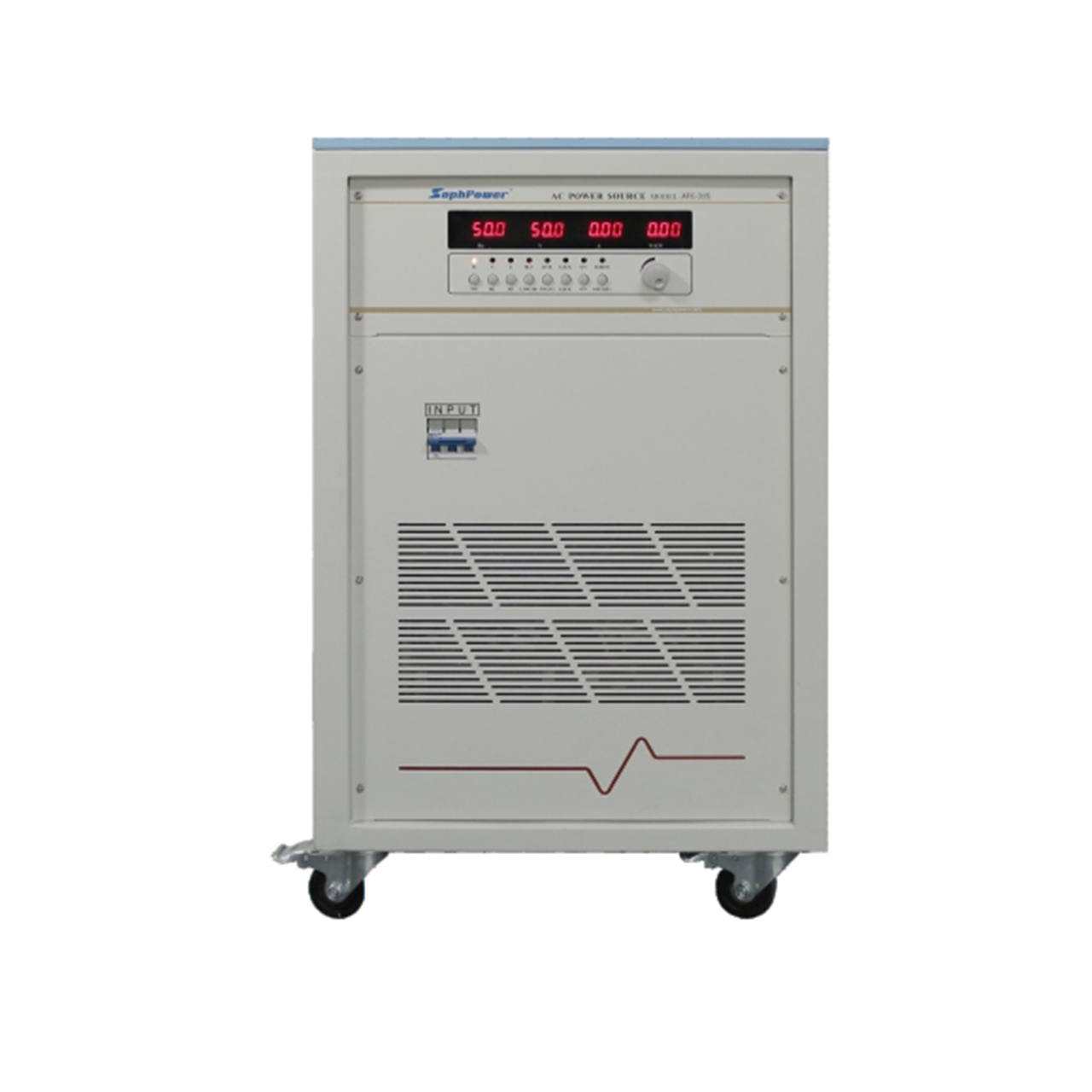

Single Phase 15kVA AC Power Source Ac Variable Frequency Converter AC Power Supply
Product Description
Overview
The AFC Series AC Power Source is integrated with the IGBT/SPWM technology, simple operation but provides cleaner and reliable output voltage and frequency to achieve all kinds of industrial requirements.
This AFC Series Ac Power Source offers high quality pure sine wave with output power rating from 500VA to 2000kVA, which THD less than 1% at resistive load. Additionally, this Ac Source provides dual output voltage ranges of 0-150V or 0-300V (Opt.0-600V), output frequency 45-65Hz adjustable (opt. 45-400Hz). Users are allowed to remotely control this equipment via standard RS232 interface.
Key Features
- Single phase output from 500VA-100kVA, three phase output from 10kVA-2000kVA.
- 4 LED display measurements of voltage, current, frequency and power/PF.
- Automatic high and low range voltage: 0-150V/150.1-300V automatic switch, or 1-300V high range locked.
- Comprehensive protection includes over voltage, over current, over load, input under voltage and over temperature with corresponding error codes.
- Strong shock resistance, able to start the loads of 1/3 rated power of the AC power supply directly.
- Three phase independent loading, and able to start each phase separately.
- Output voltage and frequency adjustable at output state.
- Simple operate with lock key, shortcut key and knob.
- Standard RS232 interface, optional RS485, Ethernet and GPIB interface.
- With power-off memory function, remember the last output parameters automatically.

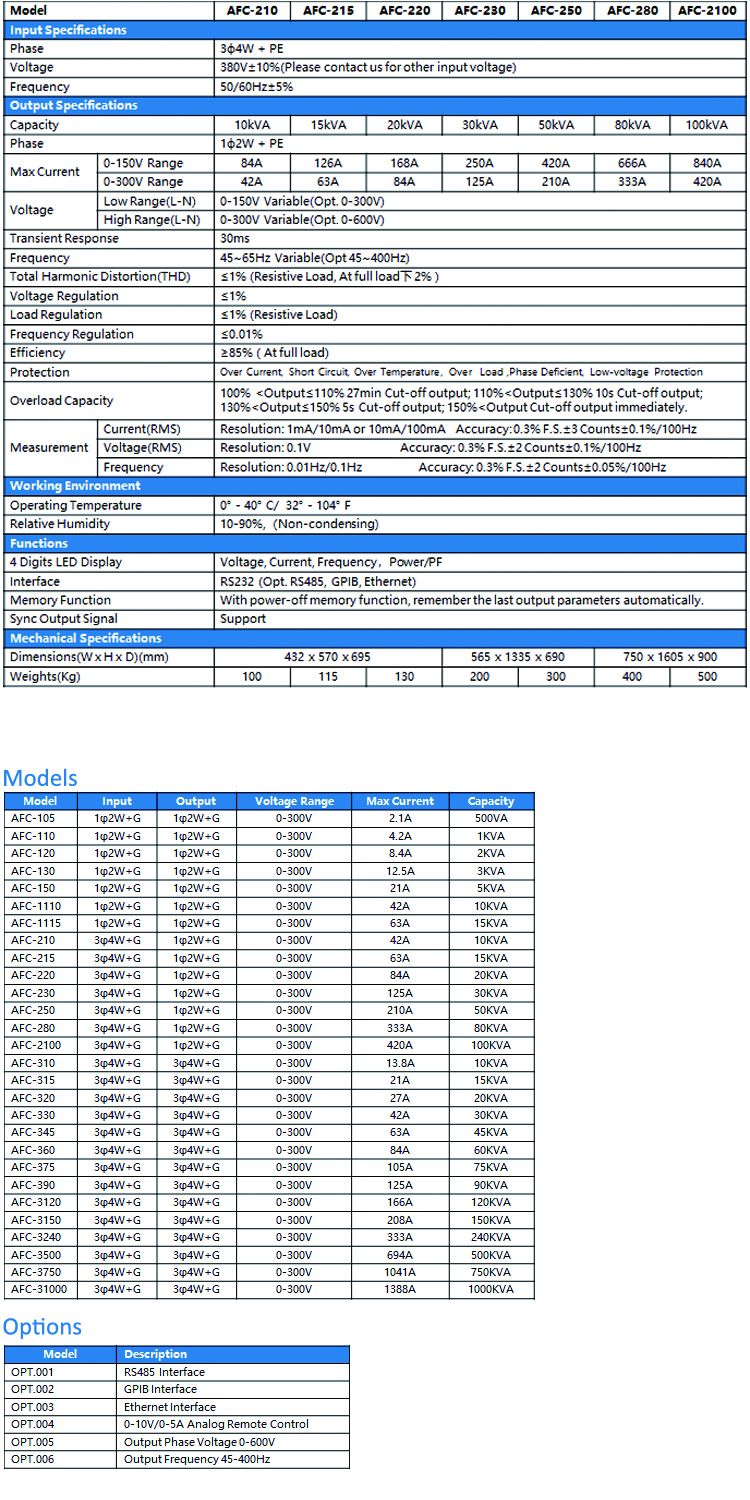

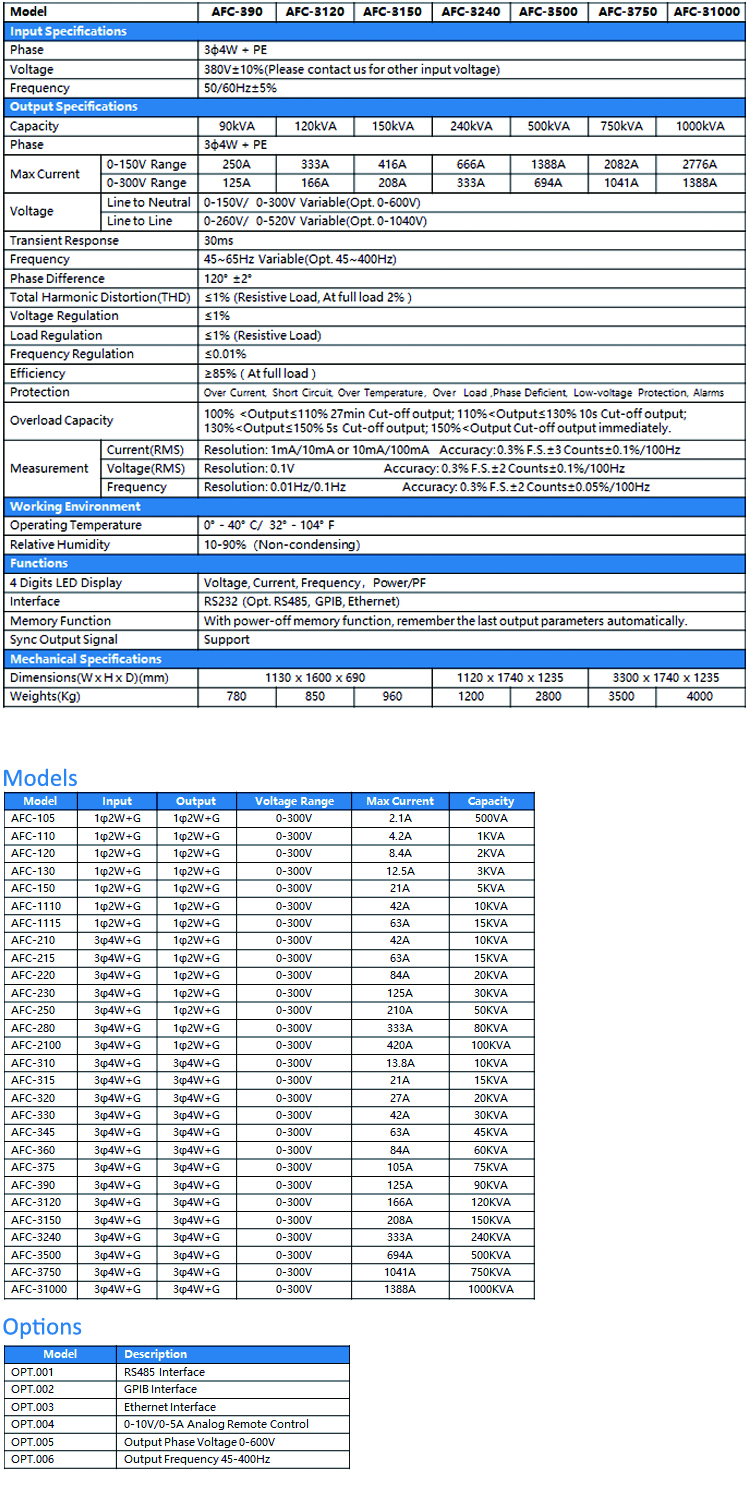

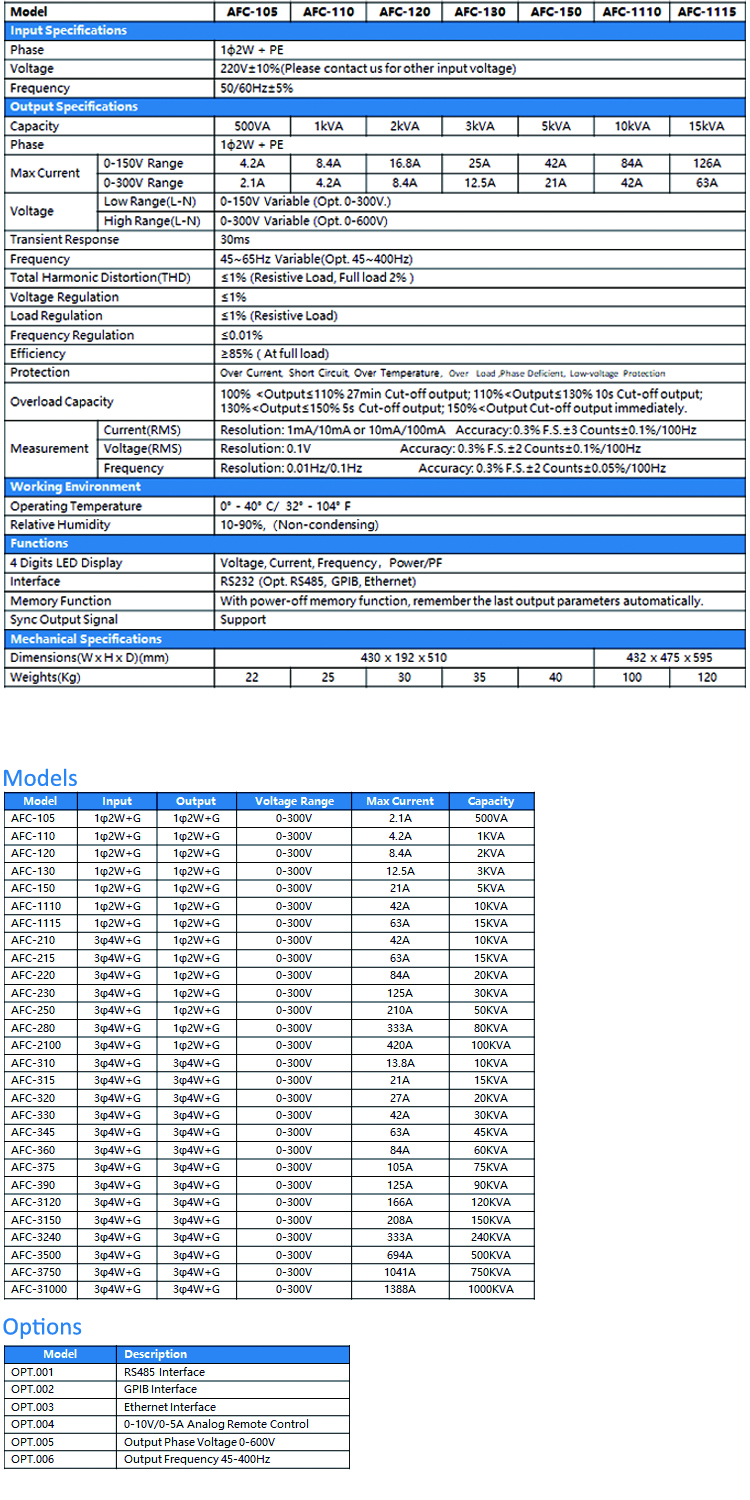

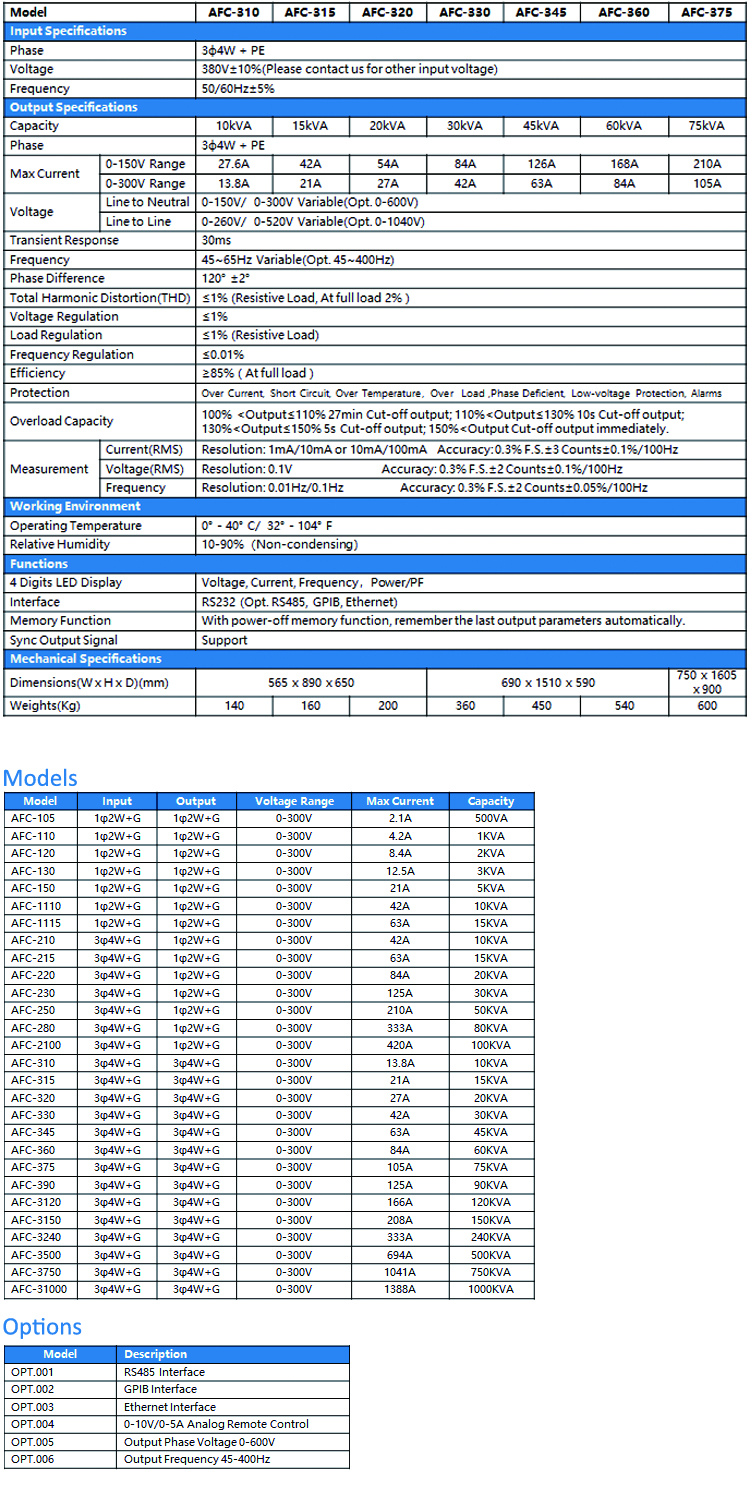

Specs
Models
Photos
Related Products
5v 200 amps Adjustable dc power supply
36v Programmable linear dc power supply
600 watt Programmable dc switching power supply
The ordering instructions:
In order to allow customers to more accurately select the DC power supply, listed the following custom parameters for reference:
- Input voltage, frequency, and range of the dc power supply.
- The output voltage and adjustable range of the dc power supply.
- The output current or power and adjustable range of the dc power supply.
