115V 400Hz Ac Power Source 1Kva Ac Power Supply AFC-110
Product Description
Overview
The AFC Series
The AFC Series single phase AC power source is a high-performance, fast, and steady speed frequency converter. It consists of compact and cost-effective units that offer excellent performance and ease of use. Utilizing IGBT/SPWM switching mode technology for efficient operation and high precision, these units come in power levels ranging from 500VA to 1000kVA.
The AFC Series is generally designed for testing industrial equipment, aircraft equipment, and household applications in technical fields. The frequency can be adjusted to 400 Hertz for applications such as testing military/avionics equipment or operating 400 Hz electronics onboard aircraft or military vessels.
The frequency can be adjusted from 45 to 400 Hz in accordance with the dual voltage ranges of 0-150 volts or 0-300 volts. While specifications and modes are optional, the series retains optimized functionality, flexible application, and stable performance.
Key Features
1
Simple Front Panel Controls & Easy Operation
2
Low Voltage Distortion
3
Current Limit & Safety Protections
4
Precision Speed Control
5
Up to 0-300Vac Voltage Output (600V Optional)
6
45-500 Hz Full Power Bandwidth
7
RS232/RS485 or GPIB Interface Options
8
Clear LED Display: Voltage, Current & Frequency
Applications
AC Test Power
Provides stable speed and high precision. It can be programmed to supply various power conditions to test different devices and meter all output parameters.
Frequency/Voltage Conversion
Provides an adjustable frequency range of 45 to 500Hz with stable AC voltage. Output voltages up to 300 VAC or 600 VAC are available with quartz-crystal stabilization.
Product Dev & Export Testing
Delivers any single-phase voltage and frequency combination found globally. Ideal for high-volume testing of household appliances destined for export to diverse utility grid markets.
Avionics Power
Meets the rigorous requirement of 400Hz, 115Vac single phase to power up shipboard or airborne equipment. Up to 500A of current is available for larger setups.
Specifications
| Parameter | Range / Option | AFC-110 Specifications |
|---|---|---|
| INPUT SPECIFICATIONS | ||
| Phases | - | 1-phase / 2-wire + Ground |
| Voltage | - | 220V, 110V ± 10% |
| Frequency | - | 50/60Hz ± 5% |
| OUTPUT SPECIFICATIONS | ||
| Rated Power | - | 1kVA |
| Max Current | 150V Range | 8.4A |
| 300V Range | 4.2A | |
| Phases | - | 1-phase / 2-wire + Ground |
| Voltage | Low Range | 0 - 150V |
| High Range | 0 - 300V | |
| Resolution | 0.1V | |
| Frequency | Range | 50Hz, 60Hz, 45 - 400Hz Variable |
| Resolution | 0.1 Hz | |
| Harmonic Distortion | - | ≤ 1% (Full Load ≤ 2%) |
| Crest Factor | - | ≥ 3 : 1 |
| Load Regulation | - | ≤ 1% |
| Protection | - | Over Current, Short Circuit, Over Temperature, Over Load, Phase Deficient, Low-voltage Protection, Alarms |
| Efficiency | - | ≥ 85% (at full load) |
| ENVIRONMENTAL | ||
| Operating Temperature | - | 0° - 40° C / 32° - 104° F |
| Relative Humidity | - | 10 - 90%, non-condensing |
| DISPLAYS AND CONTROLS | ||
| 3 Digit LED Meters | - | Voltage, Current, Frequency, Power or Power factor (Optional) |
| Interface | - | Standard RS-232 or RS-485 |
| MECHANICAL SPECIFICATIONS | ||
| Dimensions (W*H*D) | - | 520 * 107 * 480 mm |
| Weights | - | 28 Kg |

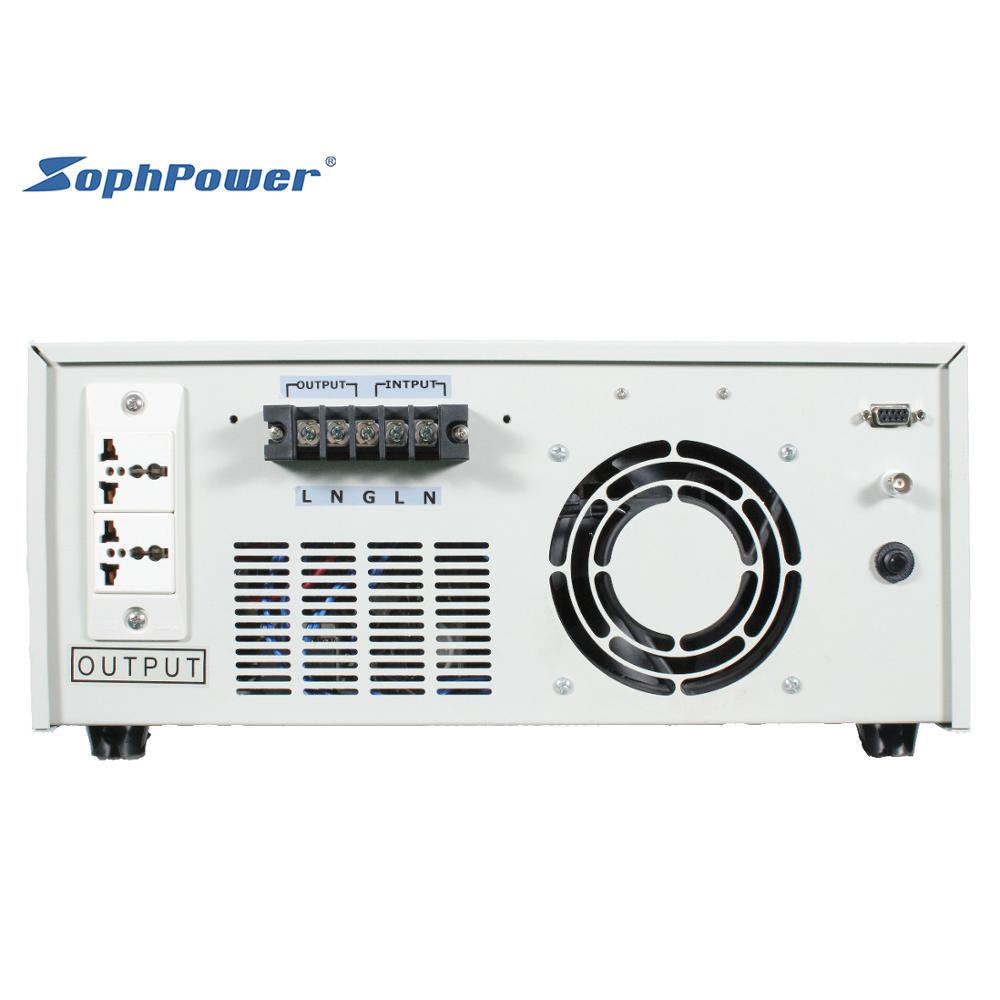

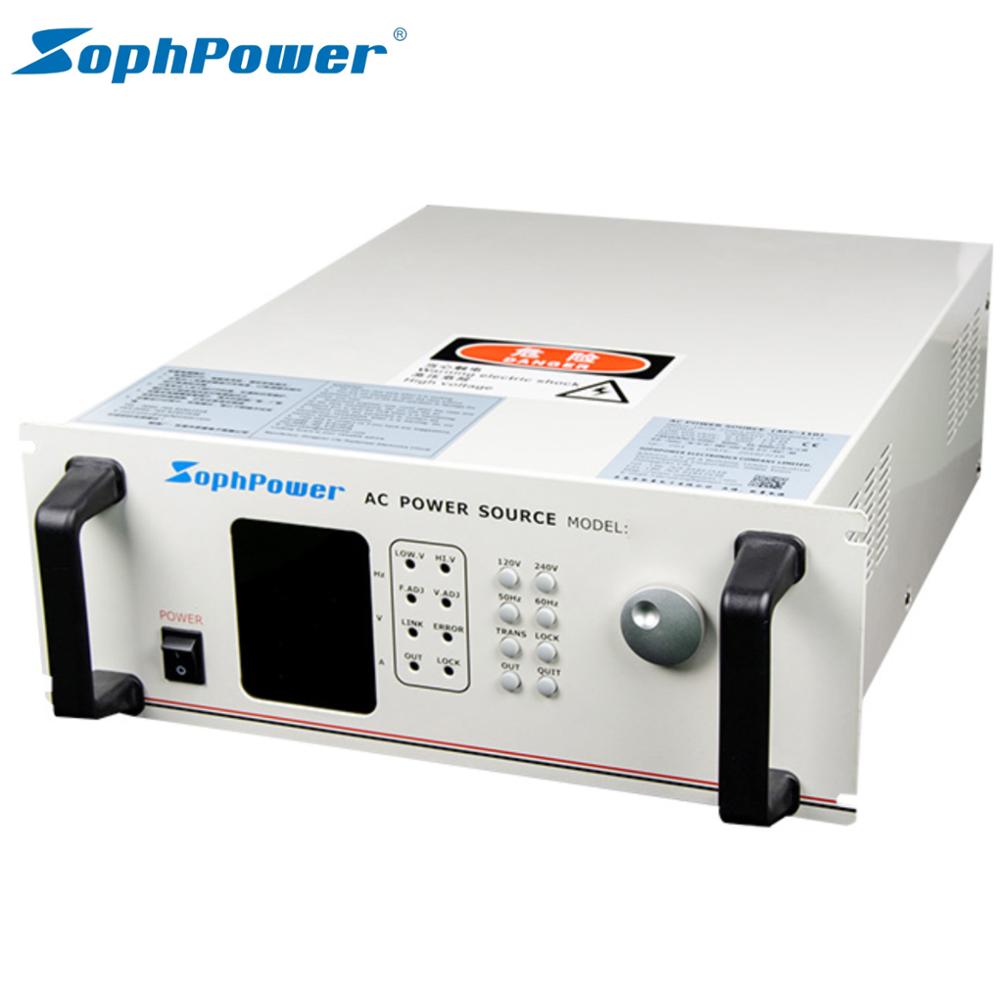

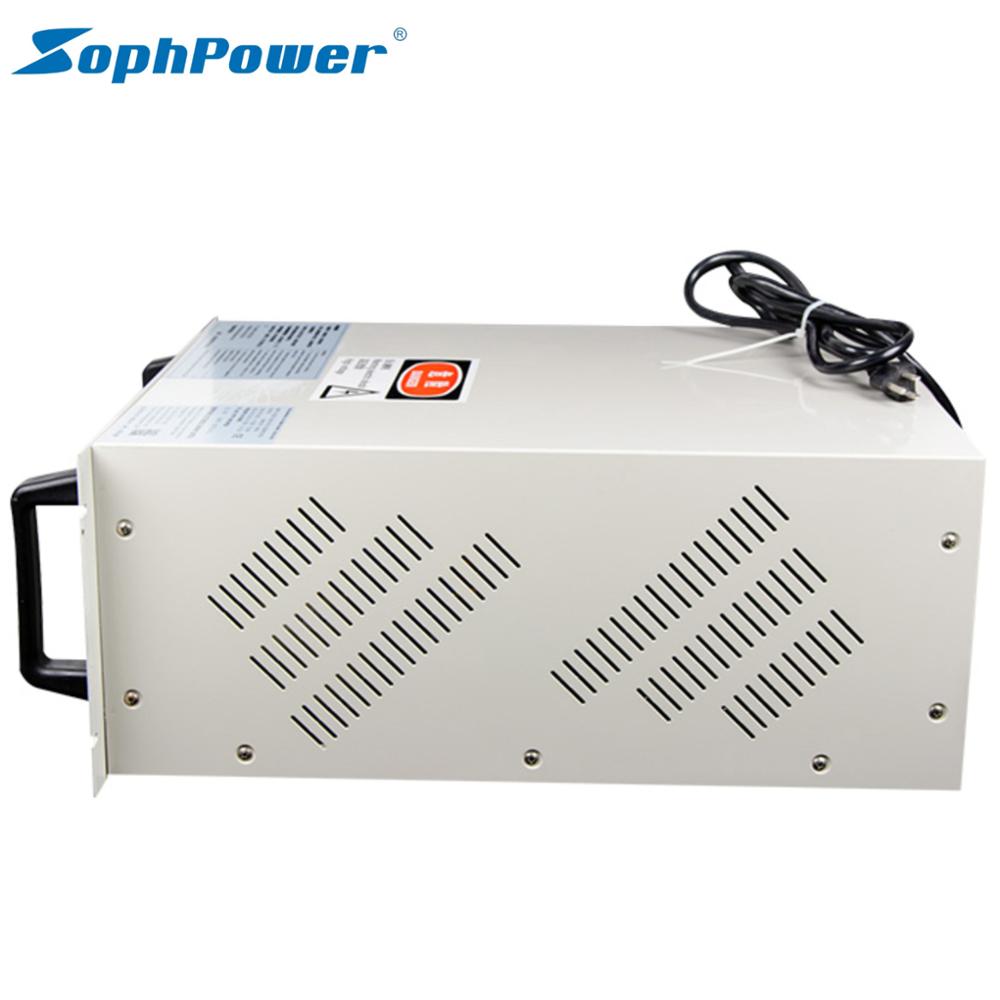

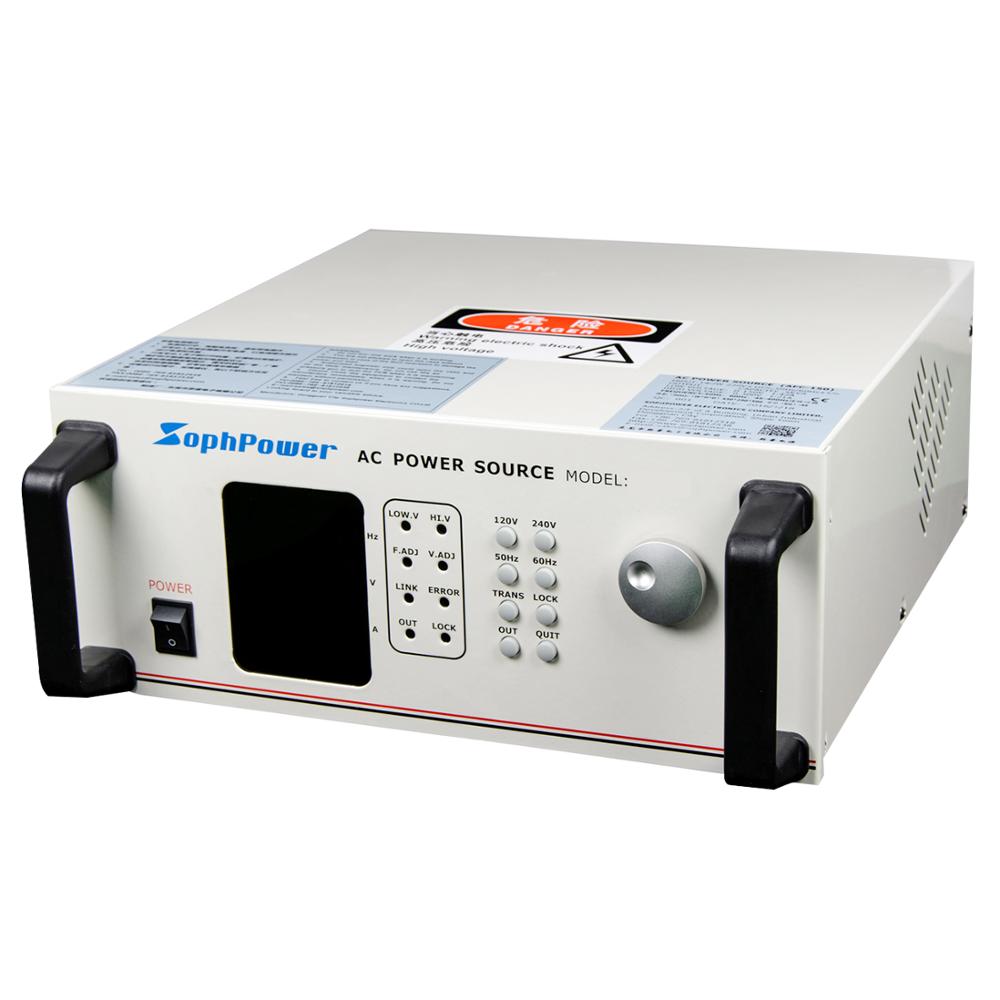

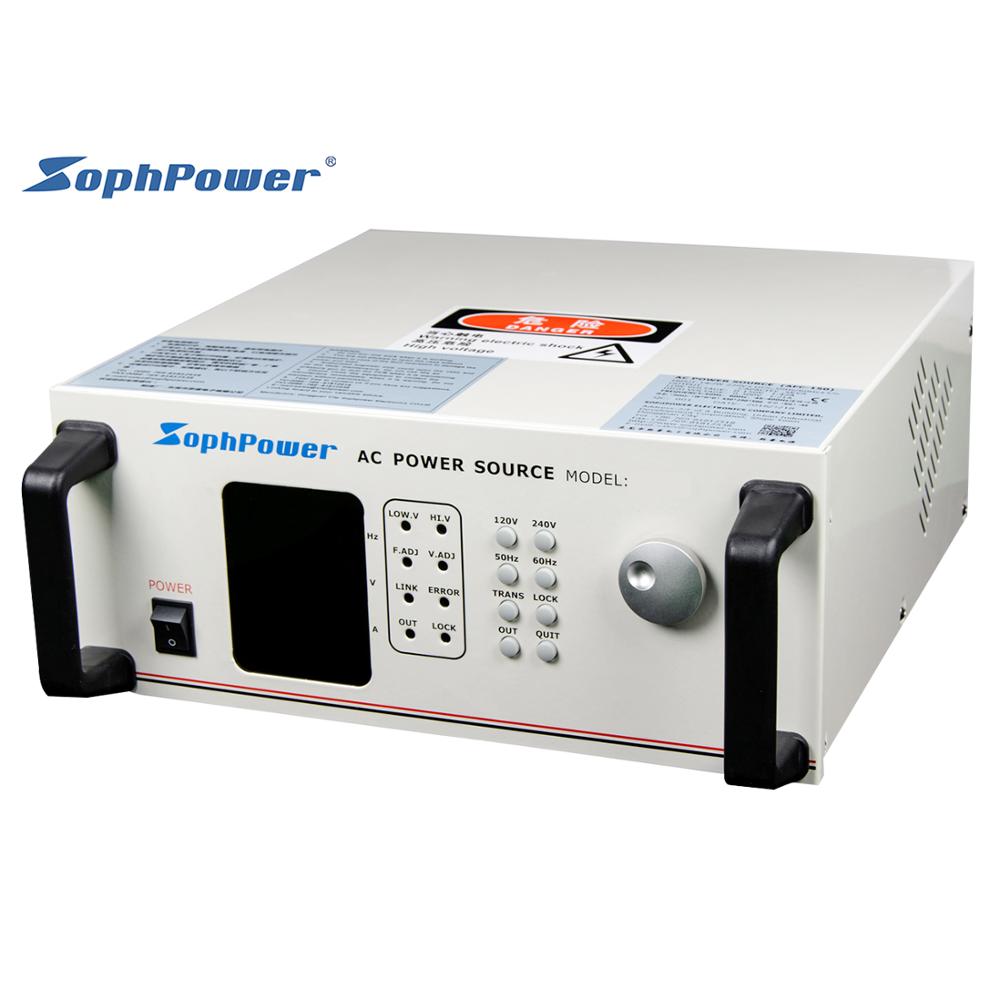

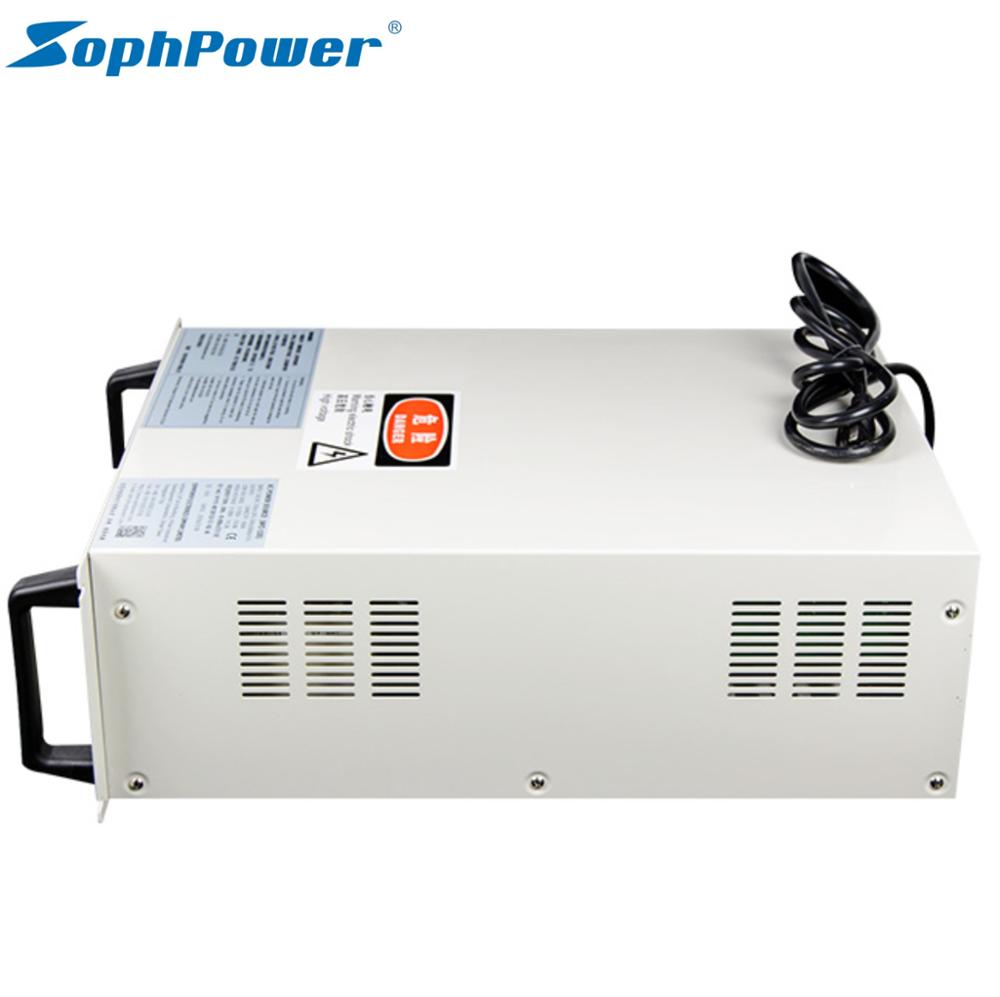

Product Photos
Related Products

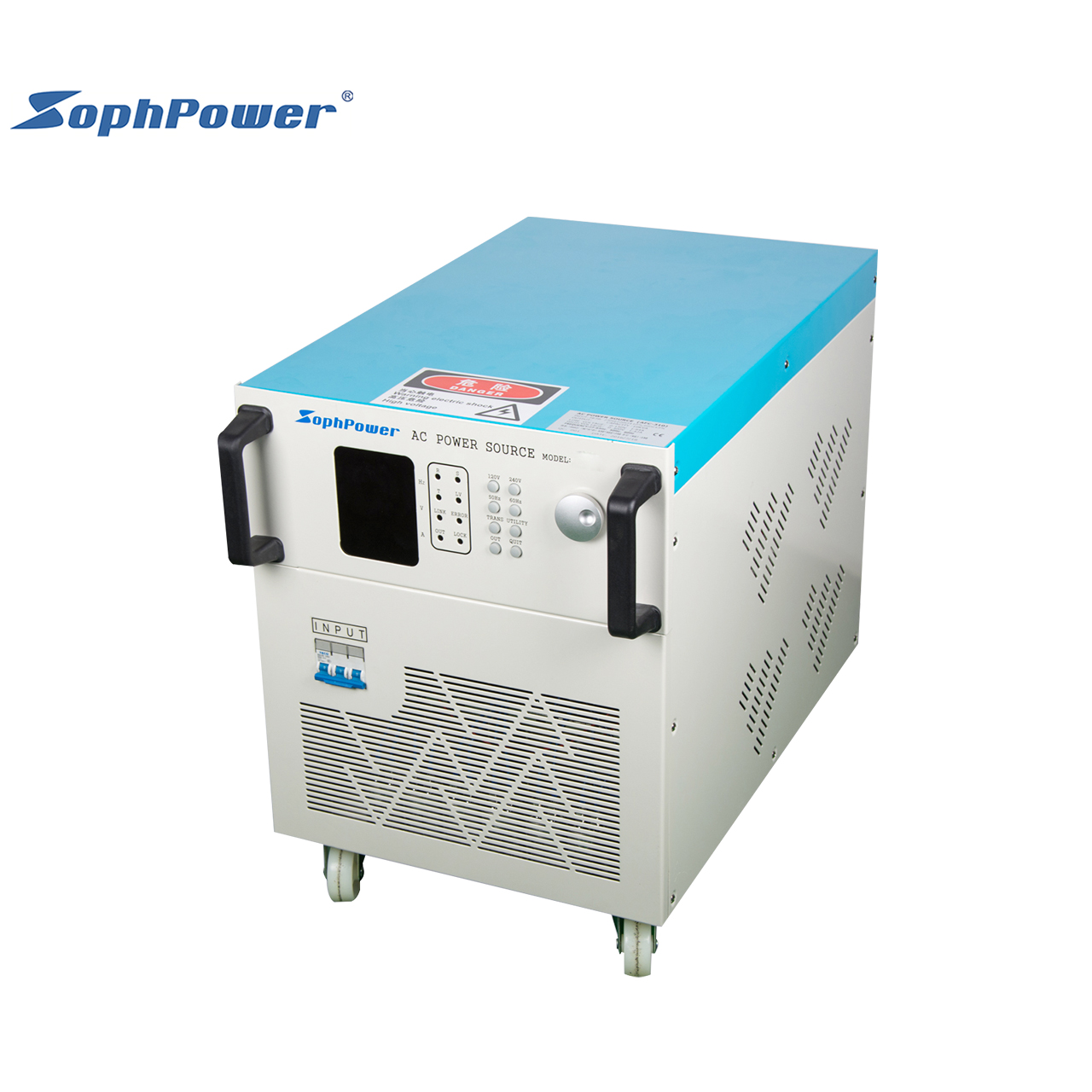

AFC-210 10kVA Frequency Converter/Ac Power Source
1-phase Variable Frequency Converter Ac Power Source 5kVA

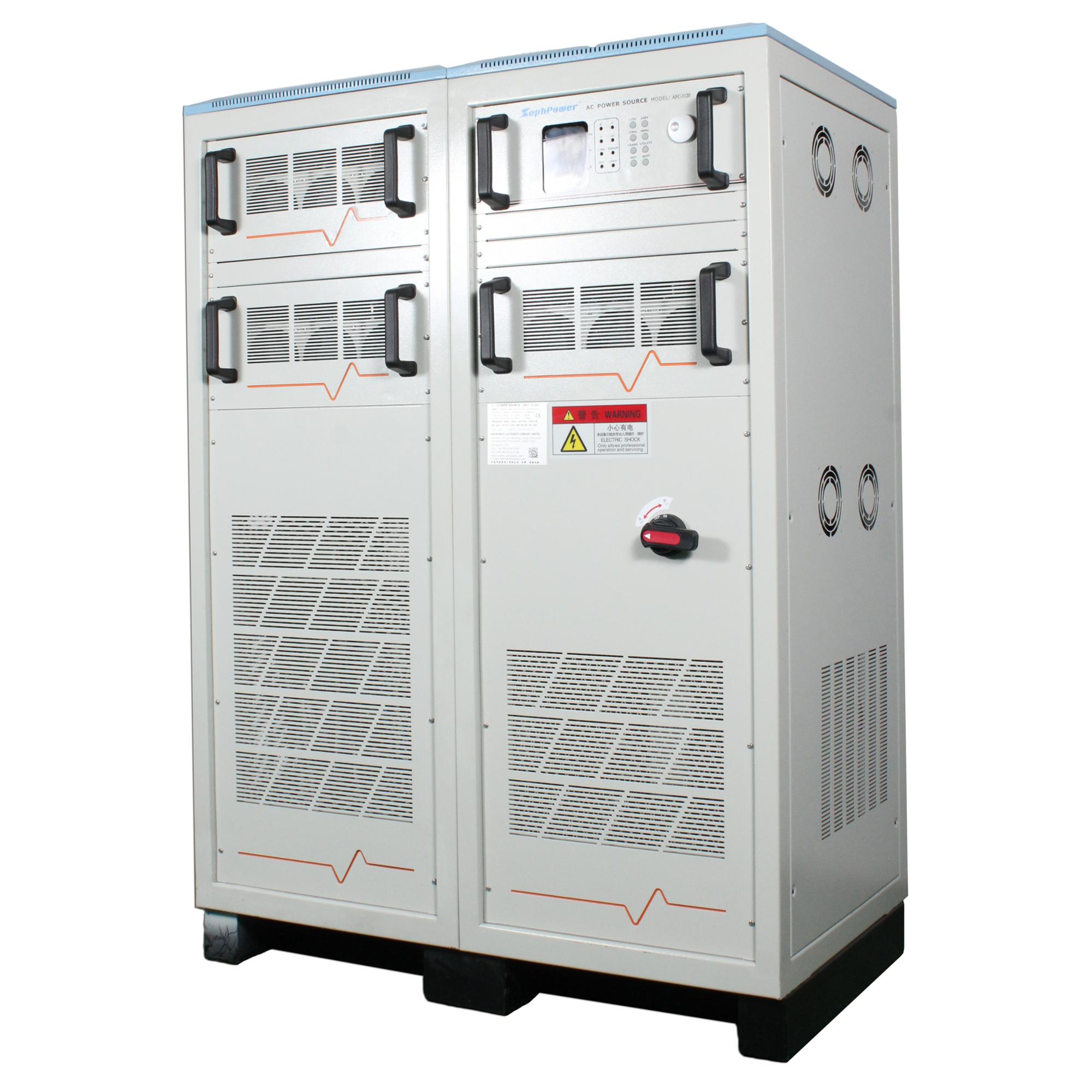

AFC-2100 100kVA 50/60Hz AC Power Source Frequency Converter
