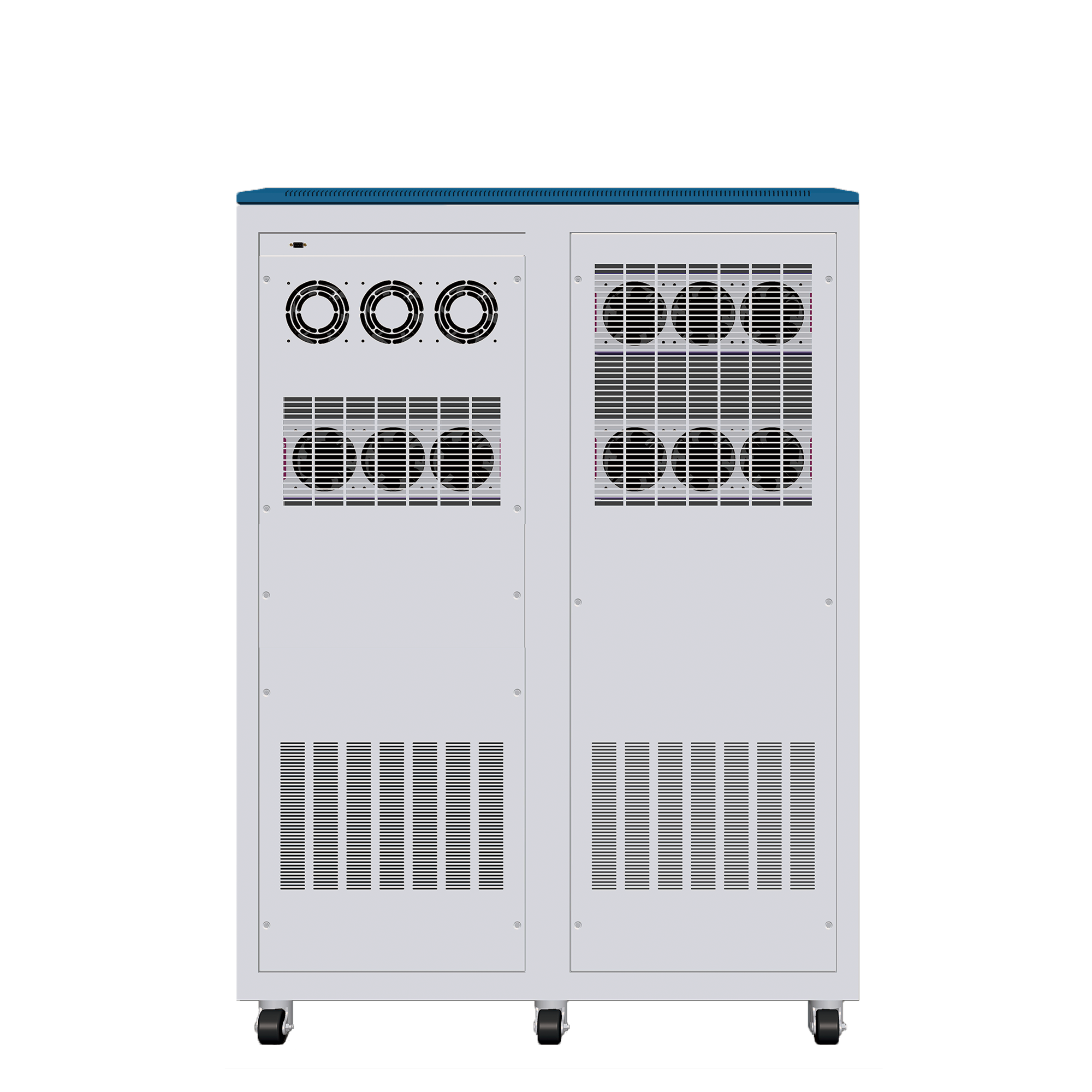

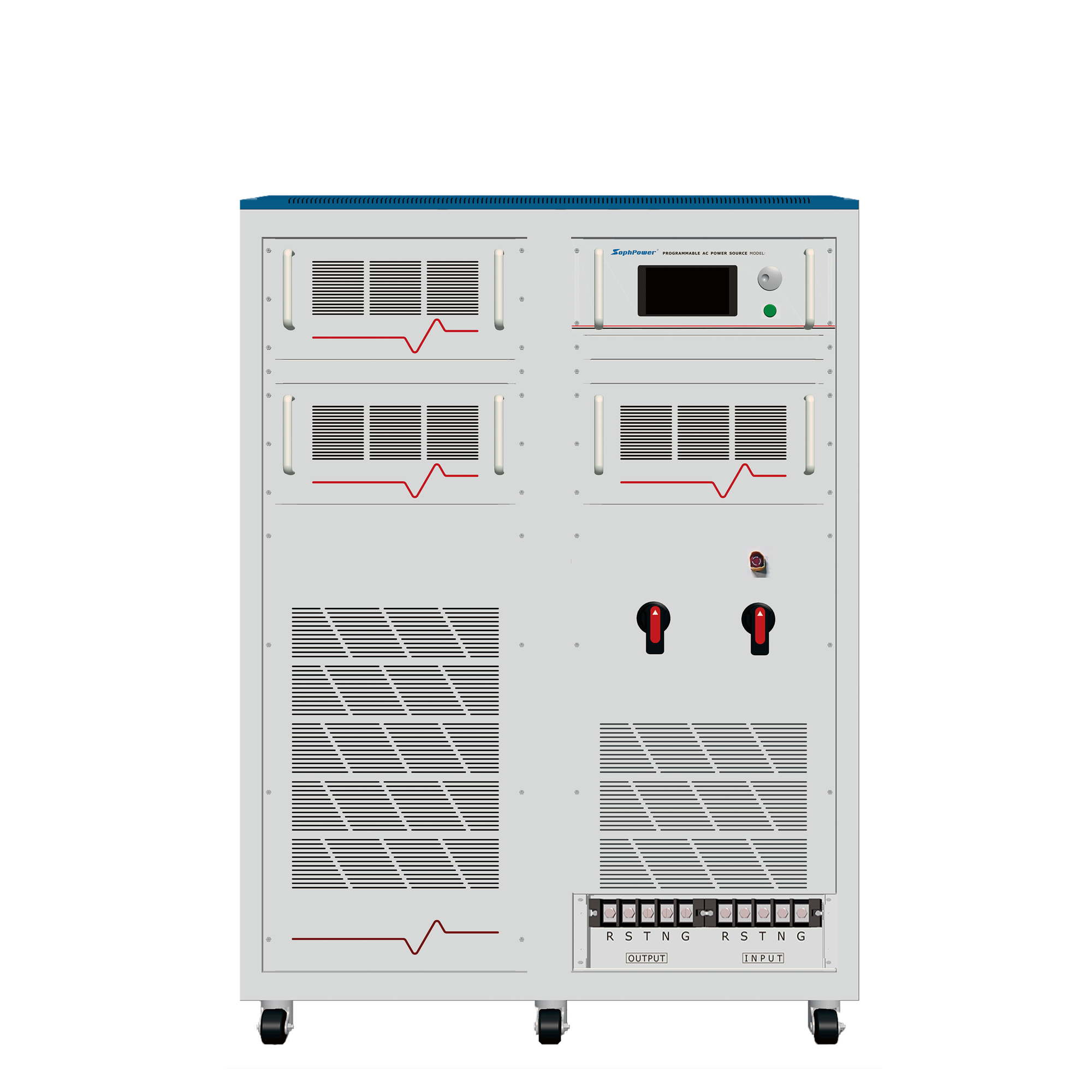

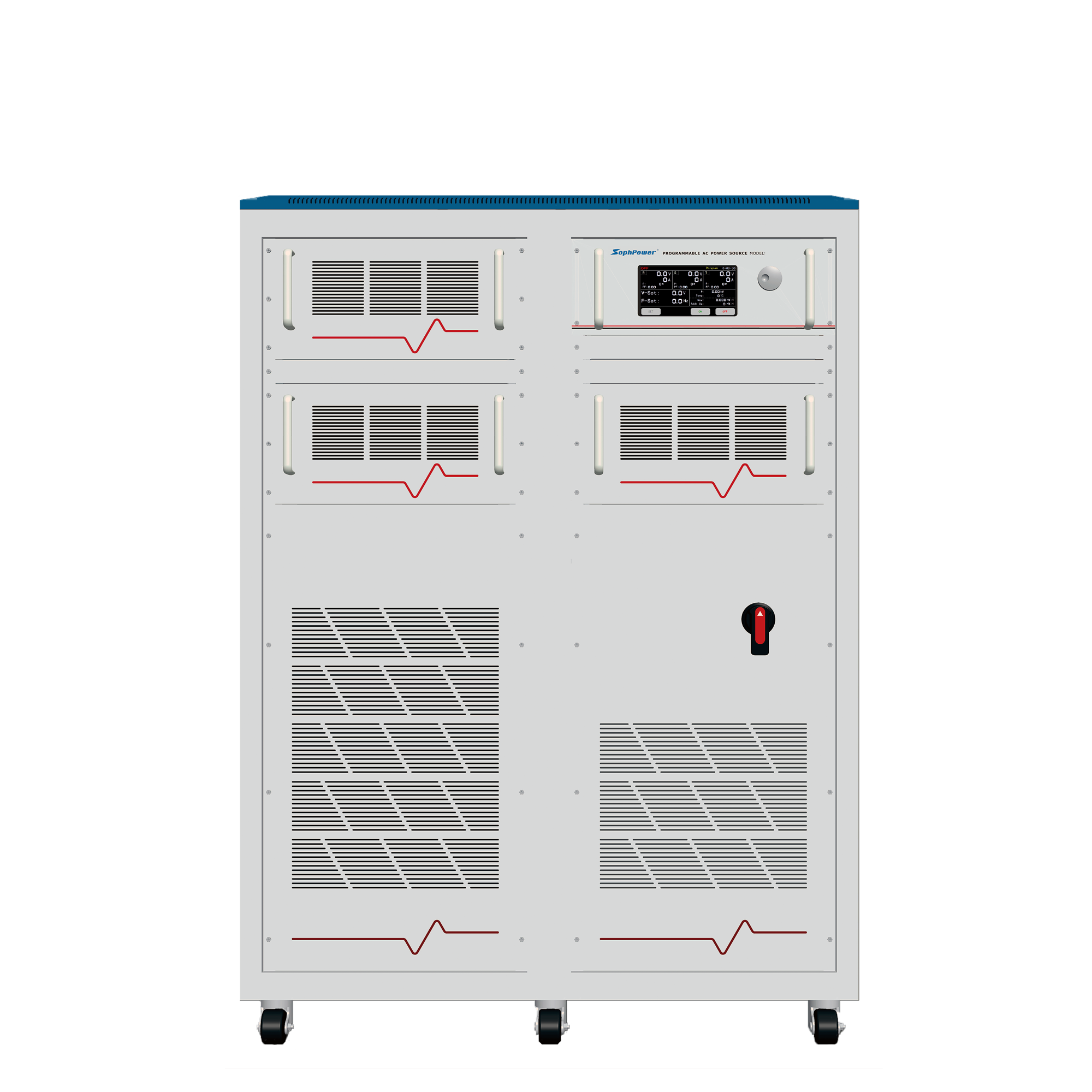

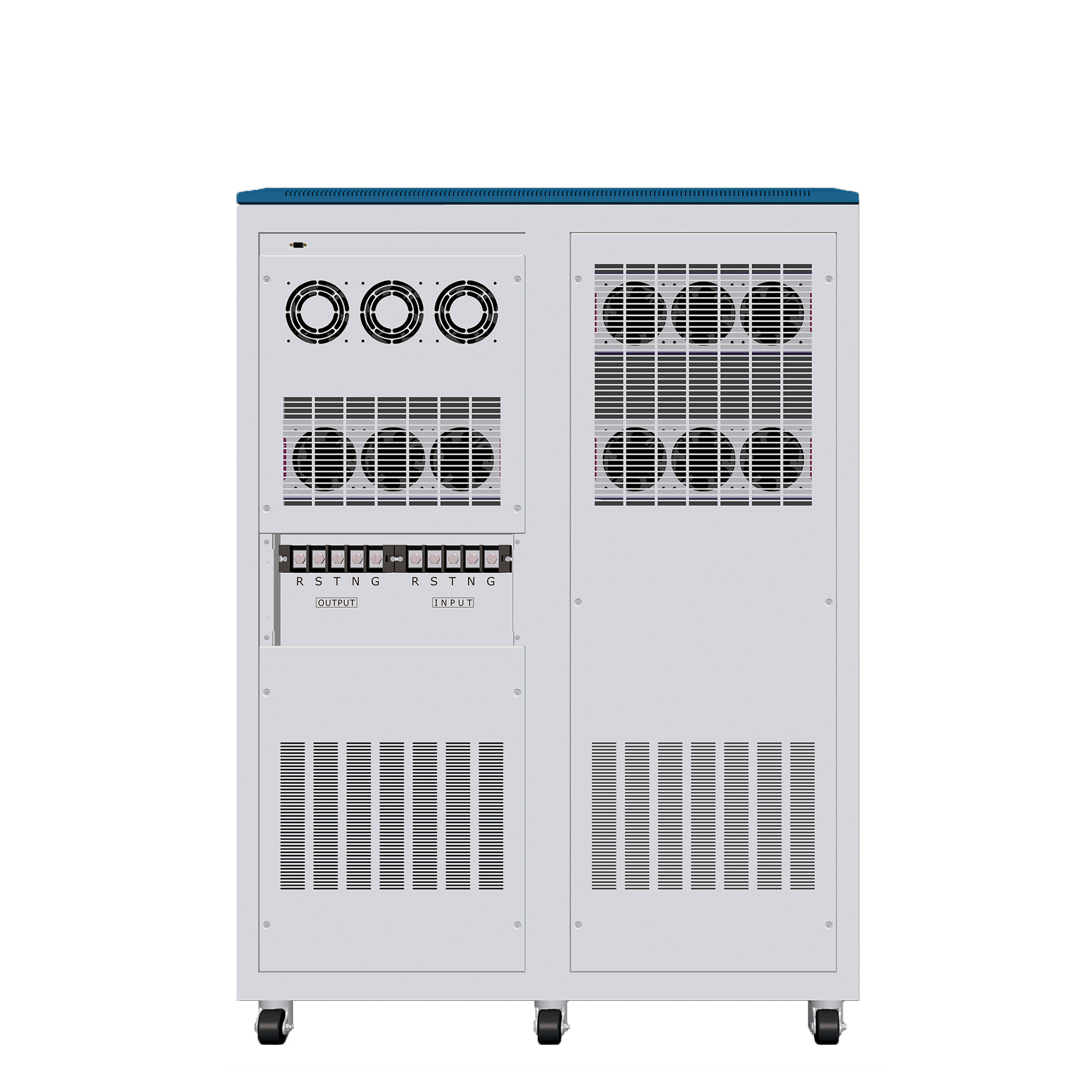

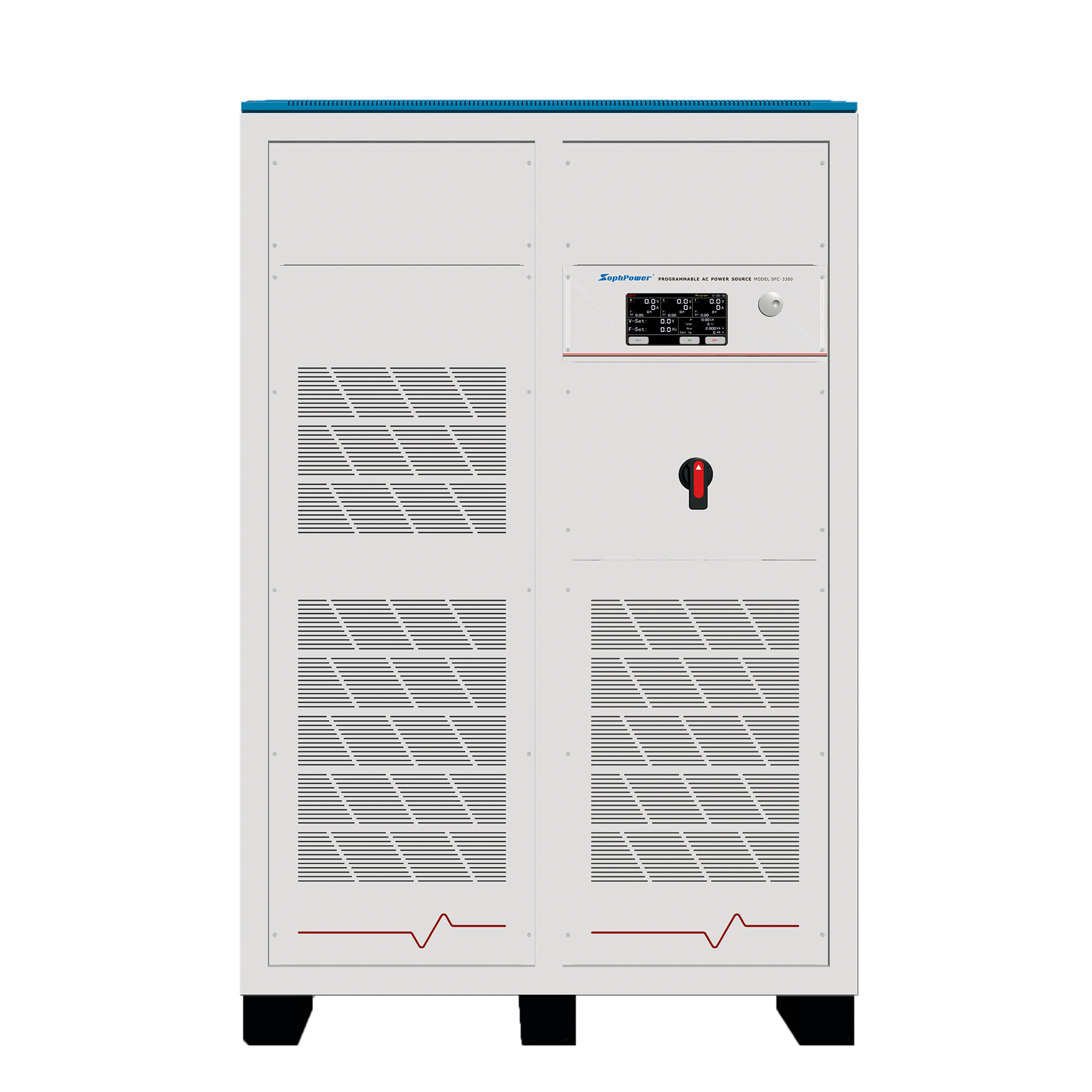

Three Phase 120kVA Programmable AC Power Supply 45Hz-400Hz Variable Frequency AC Power Source
Product Description
Overview
The SFC Series Programmable AC Power Source is integrated with the IGBT/SPWM technology, has the advantages of fast response speed, high output precision and superior waveform quality to achieve all kinds of industrial requirements.
The SFC Series Ac Power Source offers output power rating from 1kVA to 2000kVA, which has Three-phase Synchronous and independent modes and Parallel single phase mode (Opt.).
Key Features
- Output capacity from 1kVA-2000kVA.
- 7” touch panel and rotary knob operation.
- Three phase independent mode, three phase synchronous mode and parallel single phase mode (Opt.).
- Automatic high and low range voltage：0-150V/150.1-300V automatic switch, or 1-300V high range locked.
- Strong shock resistance, able to start the loads of 1/3 rated power of the AC power supply directly.
- Output voltage and frequency adjustable at output state.
- Three phase Independent adjustable.
- Phase Angel adjustable for each phase.
- Standard RS232 interface, optional RS485, GPIB and Ethernet interface.
- With power-off memory function, remember the last output parameters automatically.
- IP/OP Isolation transformer design.
Specifications
Product Photos
Related Products
5v 200 amps Adjustable dc power supply
36v Programmable linear dc power supply
600 watt Programmable dc switching power supply
The Ordering Instructions:
In order to allow customers to more accurately select the DC power supply, listed the following custom parameters for reference:
- Input voltage, frequency, and range of the dc power supply.
- The output voltage and adjustable range of the dc power supply.
- The output current or power and adjustable range of the dc power supply.
Frequently Asked Questions
What is your terms of packing?
Generally, the inner is film, outer packing is standard export carton or wooden case.
What is your terms of payment?
T/T 30% as deposit, and 70% can be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.
What is your terms of delivery?
EXW, FOB, CIF or Express.
How about your delivery time?
Generally it takes 10-20 working days after receive your deposit or full payment. The specific delivery time depends on the items and the quantity of your order.
Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings.
Do you test all your goods before delivery?
Yes, we will test precisely before delivery.
