Single Phase 2kVA Programmable Linear AC Power Source Frequency Converter AC Power Supply
Product Description
Overview
The SLFC series Linear AC Power Source is integrated with linear amplification circuit to ensure low noise and high stability. With low distortion less than 0.3% and linear design, the linear AC Power Source is suitable for low noise testing requirements.
The SLFC series Programmable Linear AC Power Source output power range from 500VA to 5kVA, output voltage range 0-300V (Opt.0-600V), and output frequency range 45-65Hz adjustable (Opt. 45-500Hz).
Key Features
- ✓Output from 500VA-15kVA.
- ✓7” LCD display, number keys and rotary knob operation, 19” standard cabinet.
- ✓Automatic high and low range voltage：0-150V/150.1-300V automatic switch， or 1-300V high range locked.
- ✓Three phase independent mode, three phase synchronous mode and parallel single phase mode (Opt.).
- ✓Low noise and high stability design.
- ✓Strong shock resistance, able to start the loads of equal rated power of the AC power supply directly.
- ✓Output voltage and frequency adjustable at output state.
- ✓Standard RS232 interface, optional RS485, GPIB and Ethernet interface.
- ✓With power-off memory function, remember the last output parameters automatically, 5 groups of quick memory.
- ✓On/Off Angle settable.
Specifications

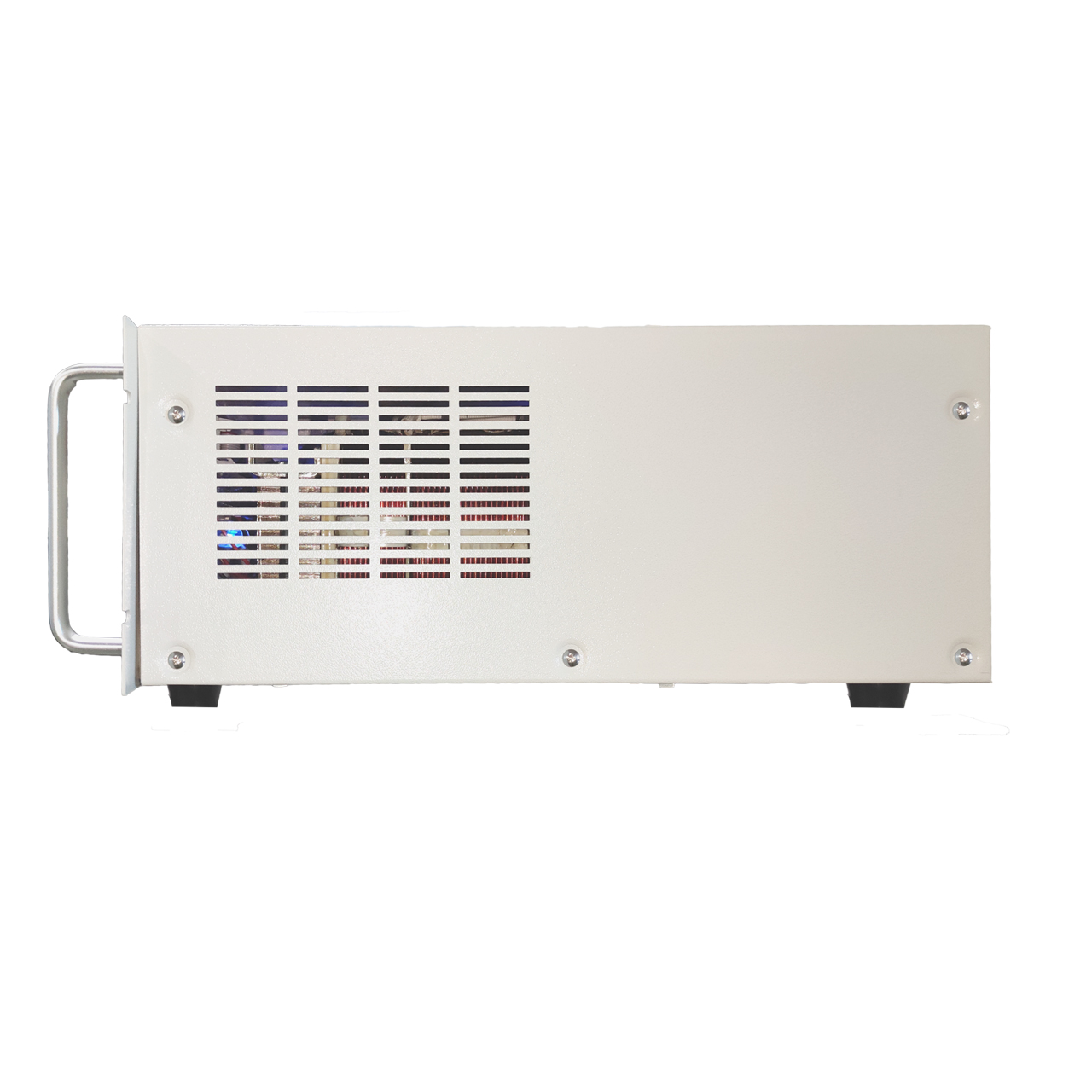

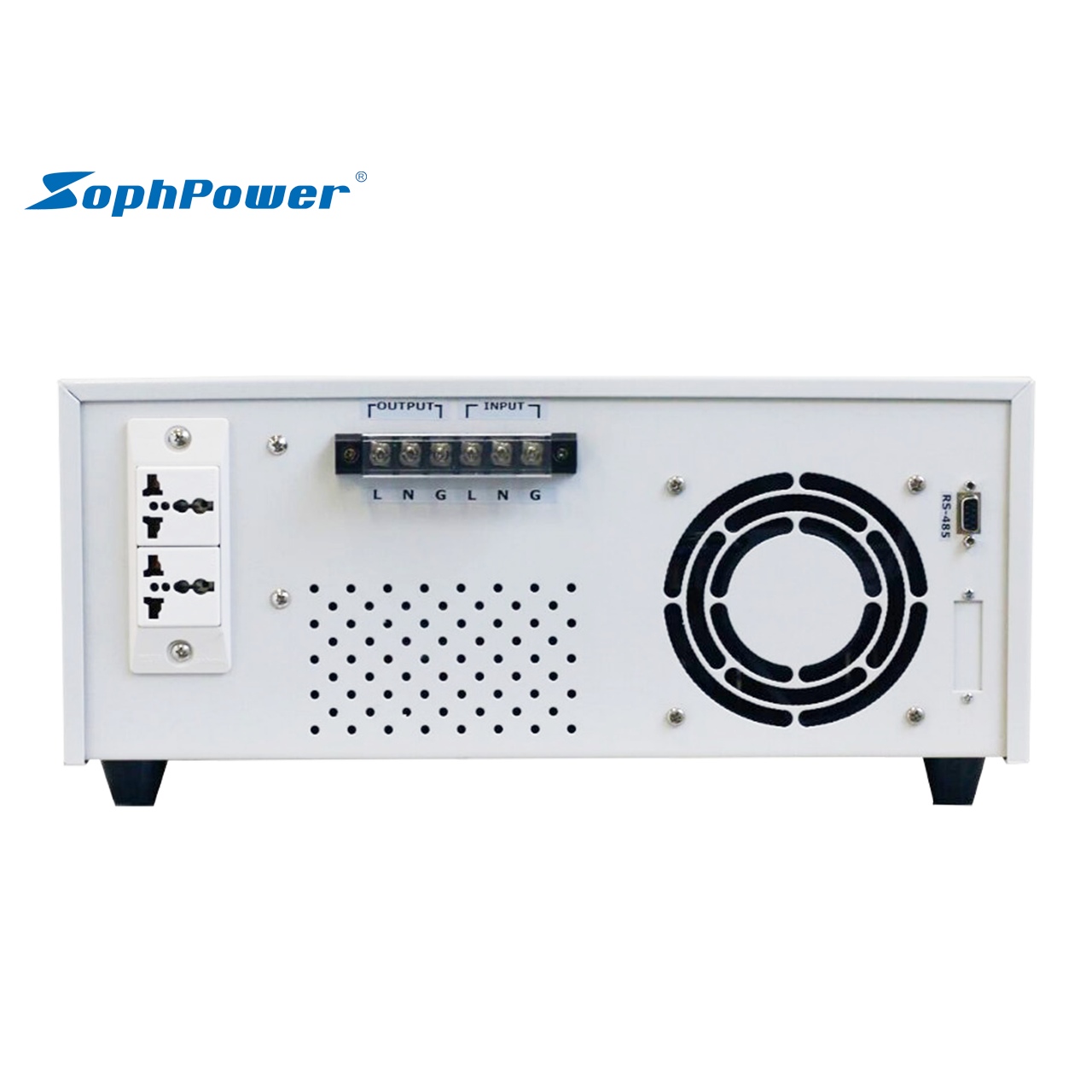

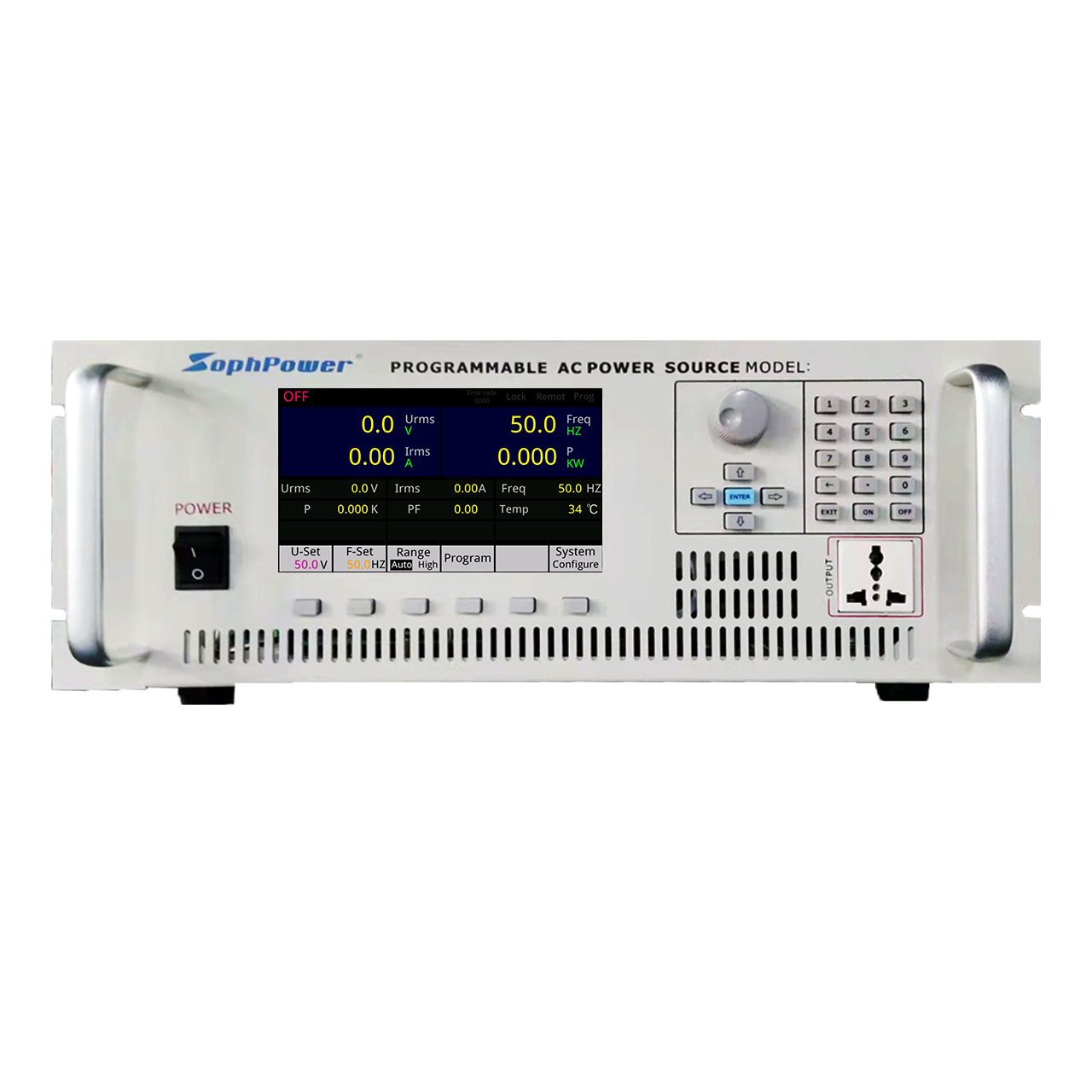

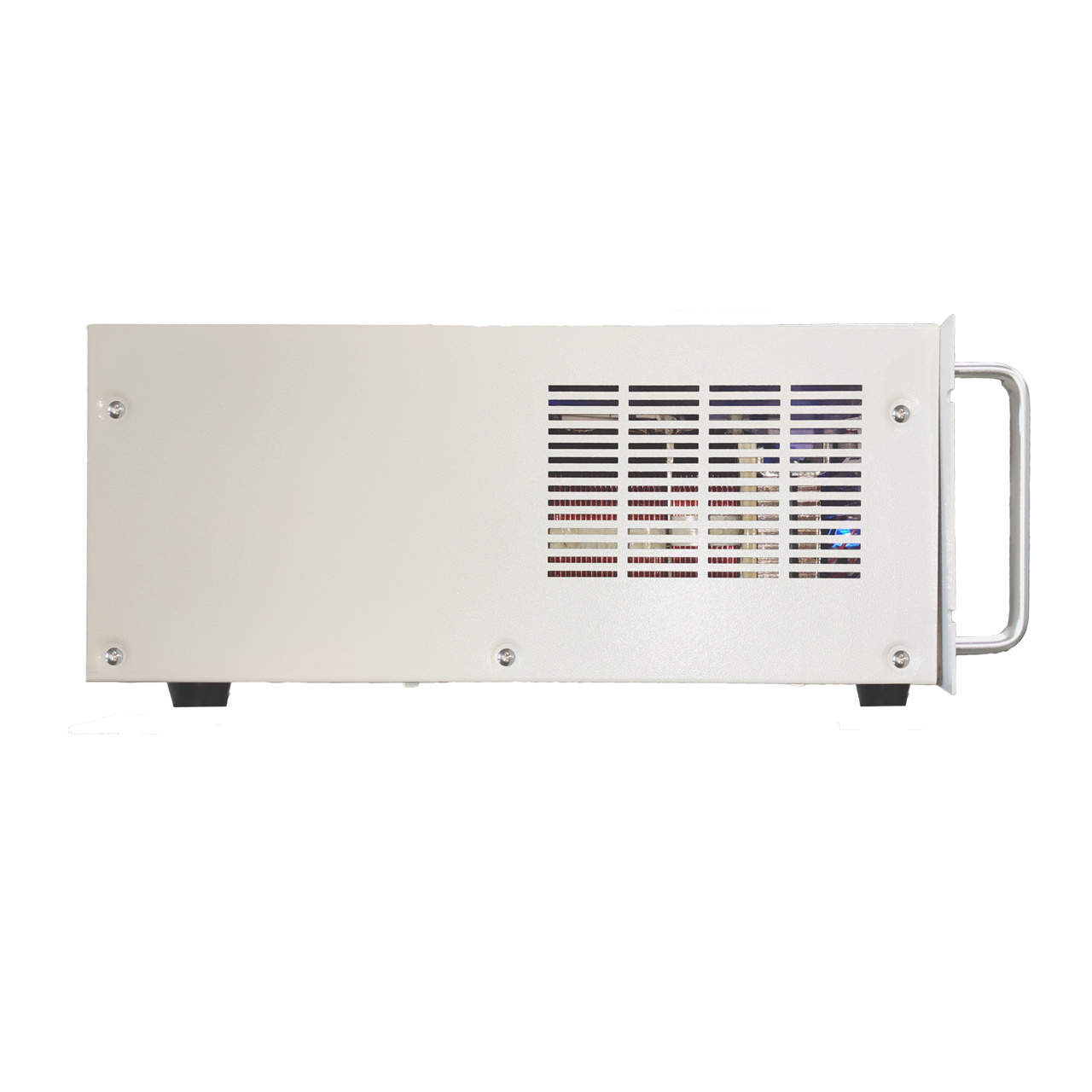

Product Photos
Related Products
5v 200 amps Adjustable dc power supply
36v Programmable linear dc power supply
600 watt Programmable dc switching power supply
Ordering Instructions
In order to allow customers to more accurately select the DC power supply, listed the following custom parameters for reference:
- 1. Input voltage, frequency, and range of the dc power supply.
- 2. The output voltage and adjustable range of the dc power supply.
- 3. The output current or power and adjustable range of the dc power supply.
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, the inner is film, outer packing is standard export carton or wooden case.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% can be paid before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF or Express.
Q4. How about your delivery time?
A: Generally it takes 10-20 working days after receive your deposit or full payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. Do you test all your goods before delivery?
A: Yes, we will test precisely before delivery.
