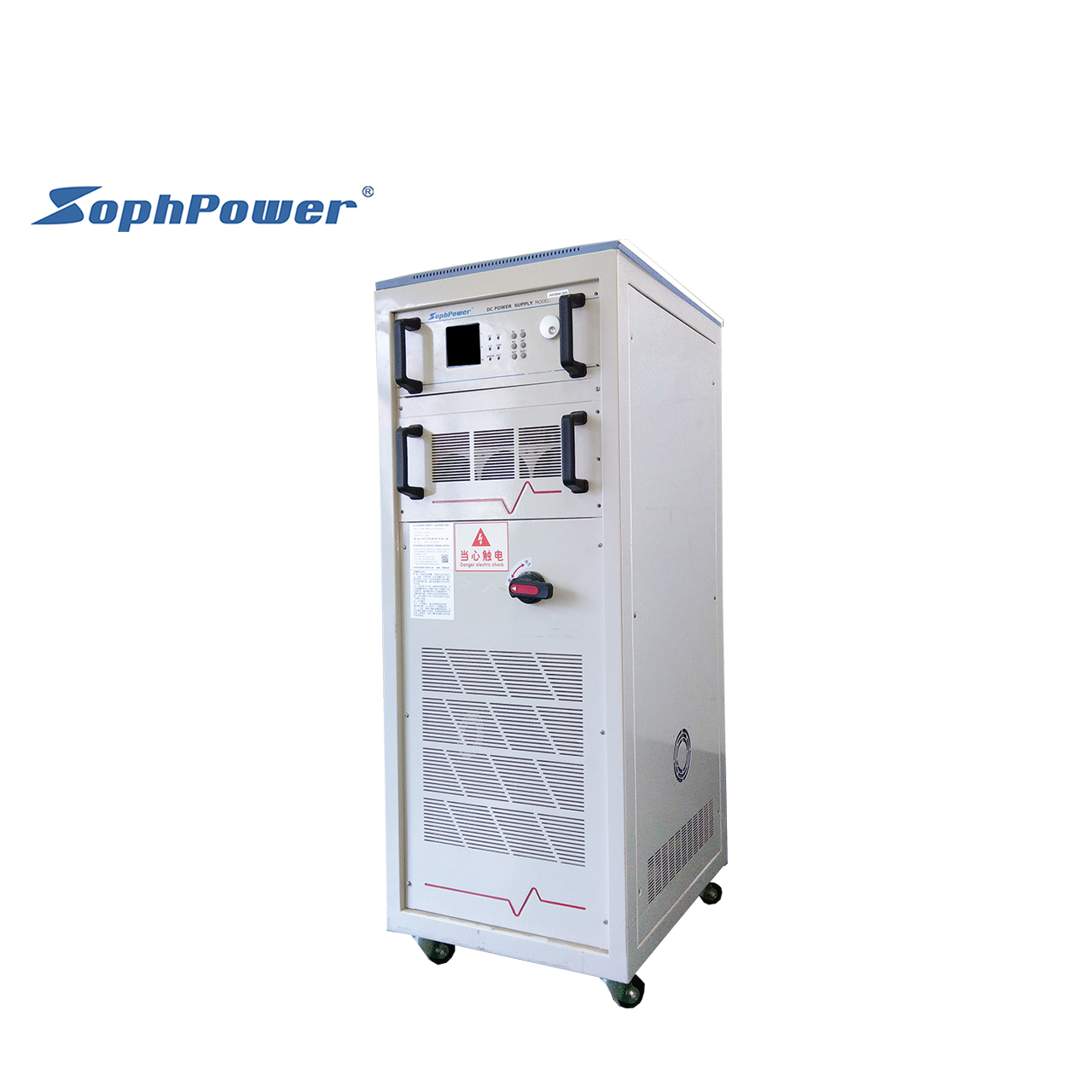

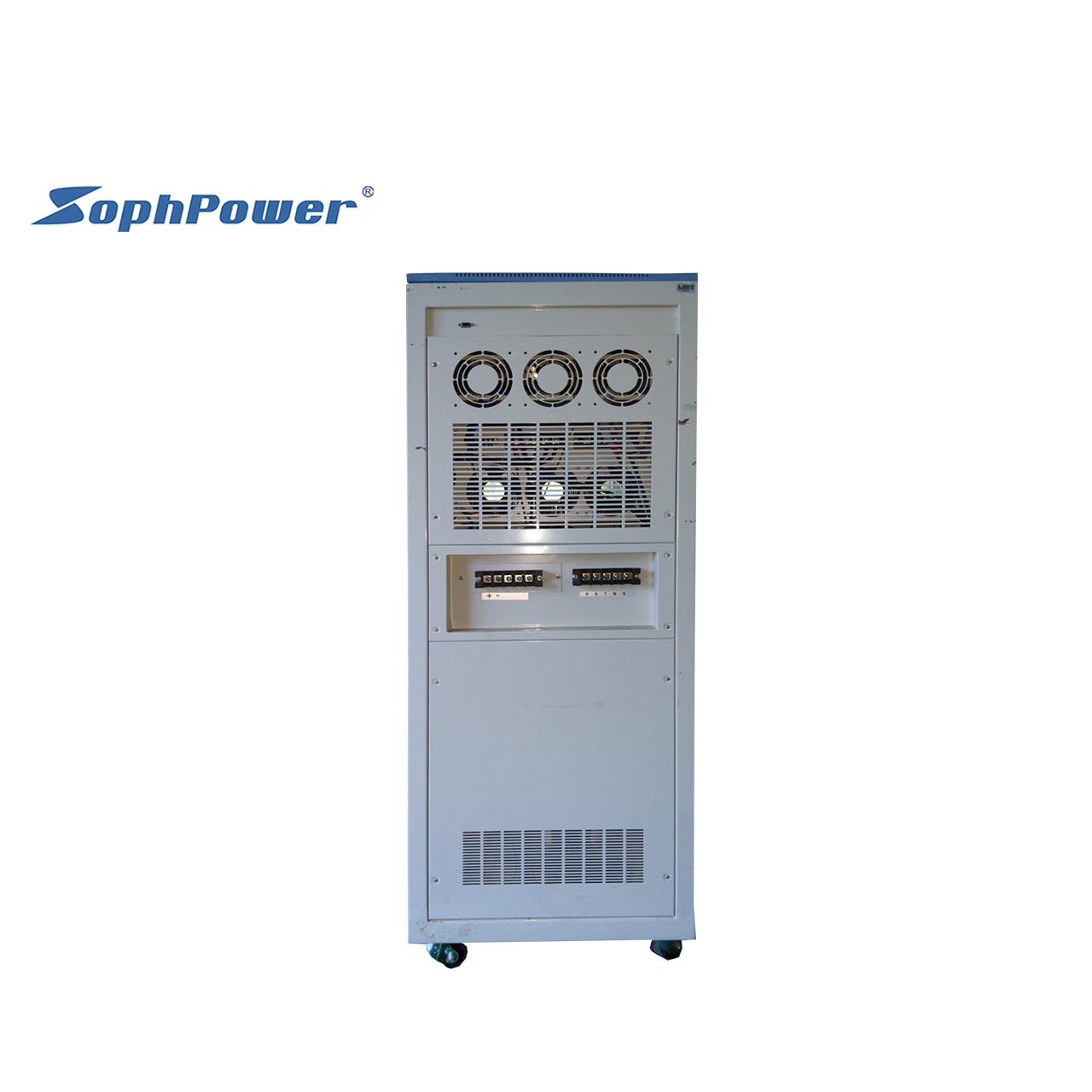

1000v 100 Amp Programmable Dc Power Supply
Product Description
Overview
The DSP Series is designed to satisfy the improving requirements of the power capacity with the rapid development of industrial manufacturers. More and more customers like it because of its small size, light weight, high efficiency, reliable quality, stable performance and easy maintenance.
They can offer output voltage and current is up to 1600V and 2000A respectively. With its high performance, DSP series fits testing requirement of EV, aerospace, renewable energy, server and battery for R&D testing, quality burning test, or facility power perfectly.
Key Features

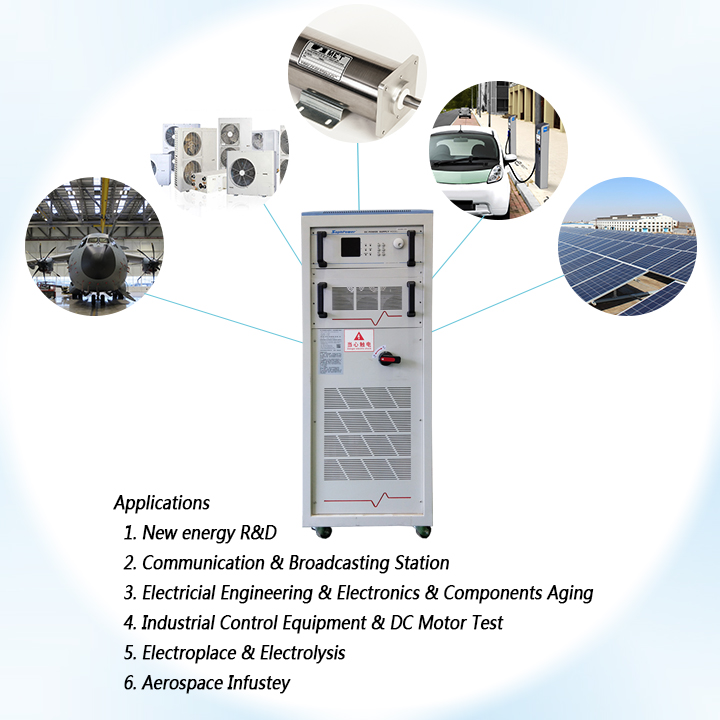

Applications
Specs
| INPUT SPECIFICATIONS | DSP1000-100D | |
|---|---|---|
| Phase | 3 Phase 4 Wire + G | |
| Voltage | 220V / 380V ± 10% | |
| Frequency | 47Hz-63Hz | |
| OUTPUT SPECIFICATIONS | ||
| Output Power | 0~100kw | |
| Output Voltage | 0~1000v | |
| Output Current | 0~100a | |
| Line Regulation | voltage | ≤ ± 0.05% of full scale |
| current | ≤ ± 0.08% of full scale | |
| Load Regulation | voltage | ≤ ± 0.2% of full scale |
| current | ≤ ± 0.3% of full scale | |
| Voltage Ripple(rms) | CV | ≤ 0.3% of rating |
| CC | ≤ 0.3% of rating | |
| Voltage Noise(p-p) | CV | ≤ 0.3% of rating |
| CC | ≤ 0.3% of rating | |
| Slew Rate | voltage | 10 to 100% < 300ms |
| current | 10 to 100% < 500ms | |
| Transient Response | 4~12ms (at Resistance load 10%~90%) | |
| Protection | OVP, OTP, OCP, Reverse voice prompts, Light prompts | |
| Efficiency | 85% (Full Load) | |
| Noise | ≤ 65DB (1M) | |
| HIGH-VOLTAGE INSULATION TEST | ||
| Input to Enclosure | AC 2000V / 1 minute | |
| Input to Output | AC 2000V / 1 minute | |
| Output to Enclosure | DC 1500V / 1 minute | |
| INSULATION RESISTANCE | ||
| Input to Enclosure | DC 500V over 20 MΩ | |
| Input to Output | DC 500V over 20 MΩ | |
| DISPLAYS AND CONTROLS | ||

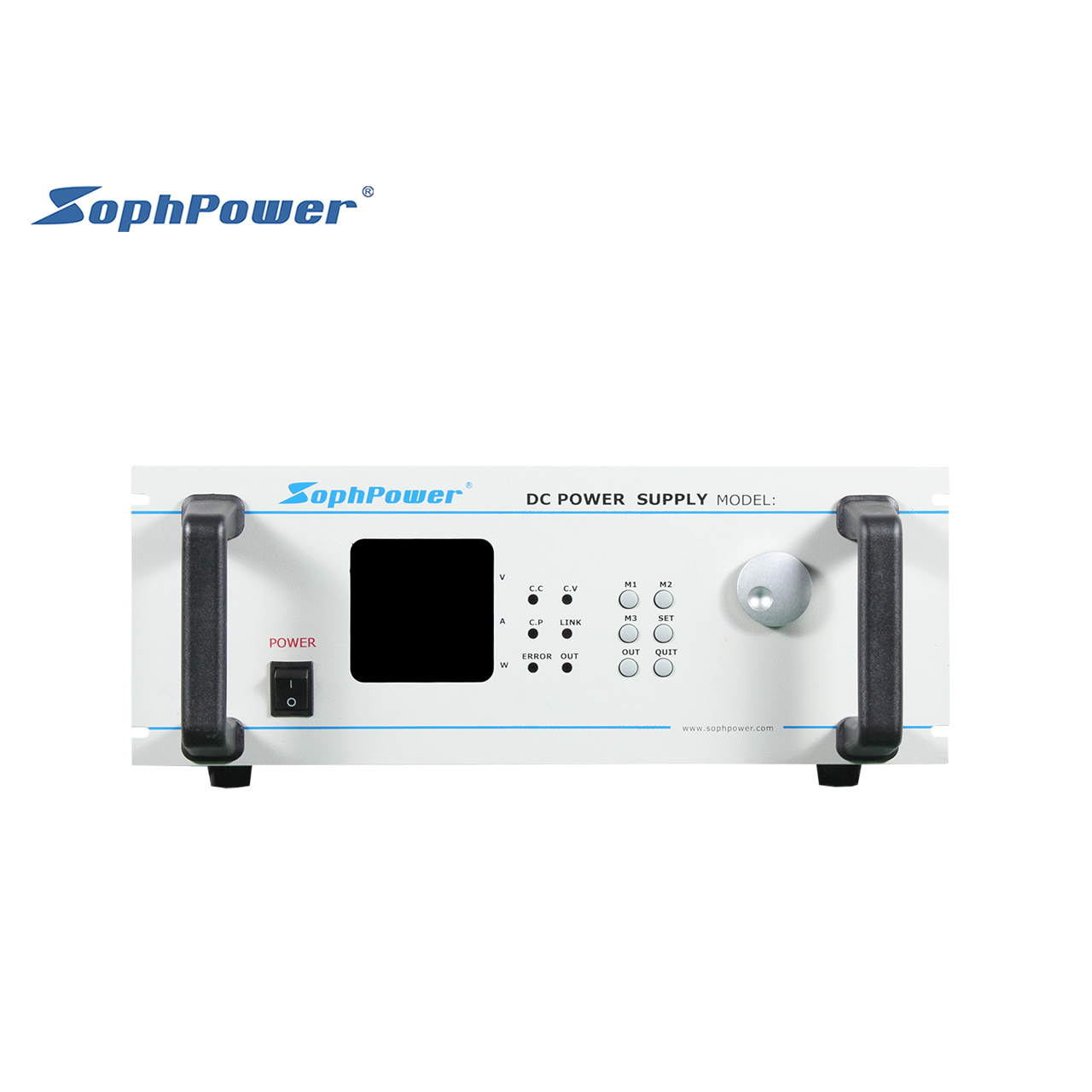

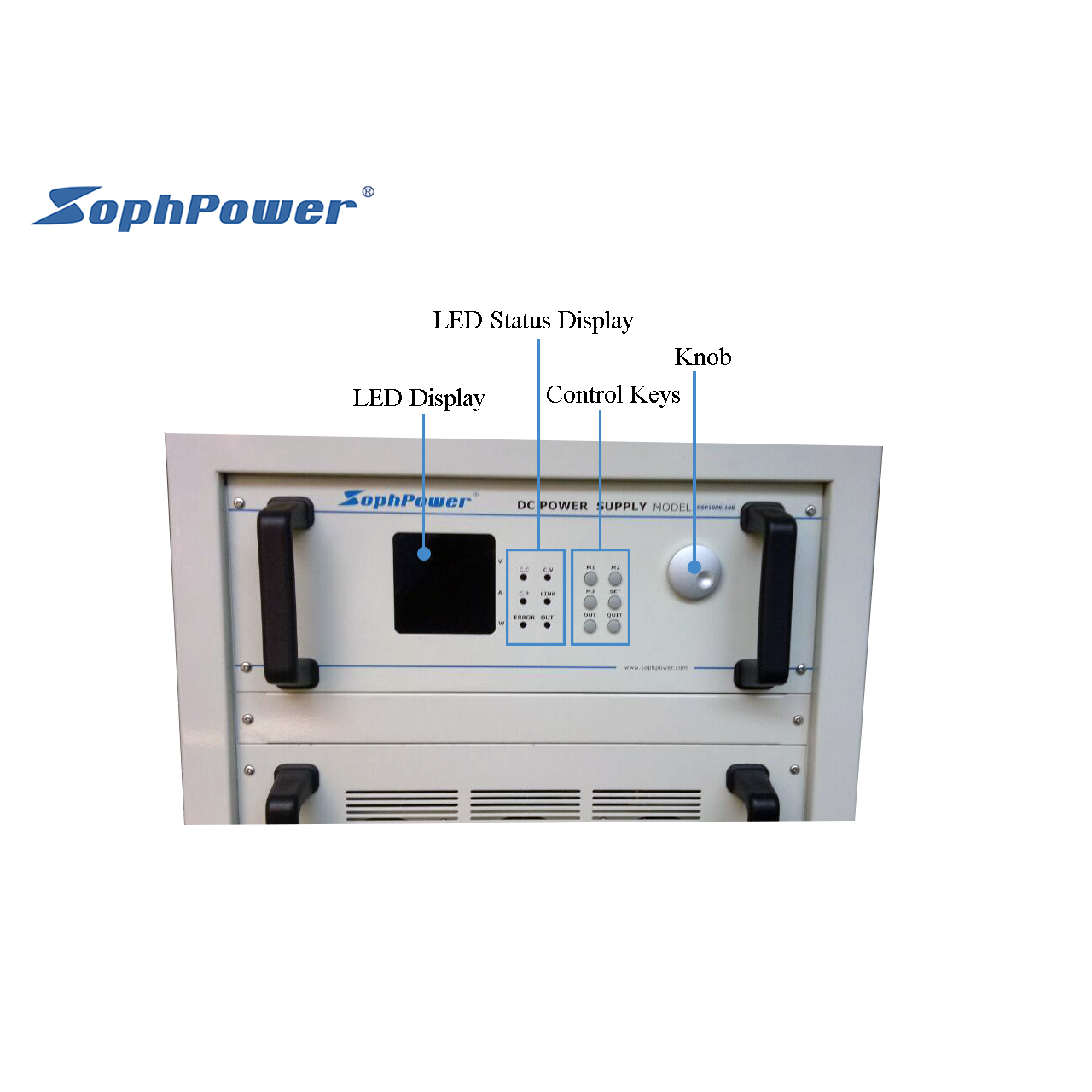

| Display | LED display output voltage and current | |

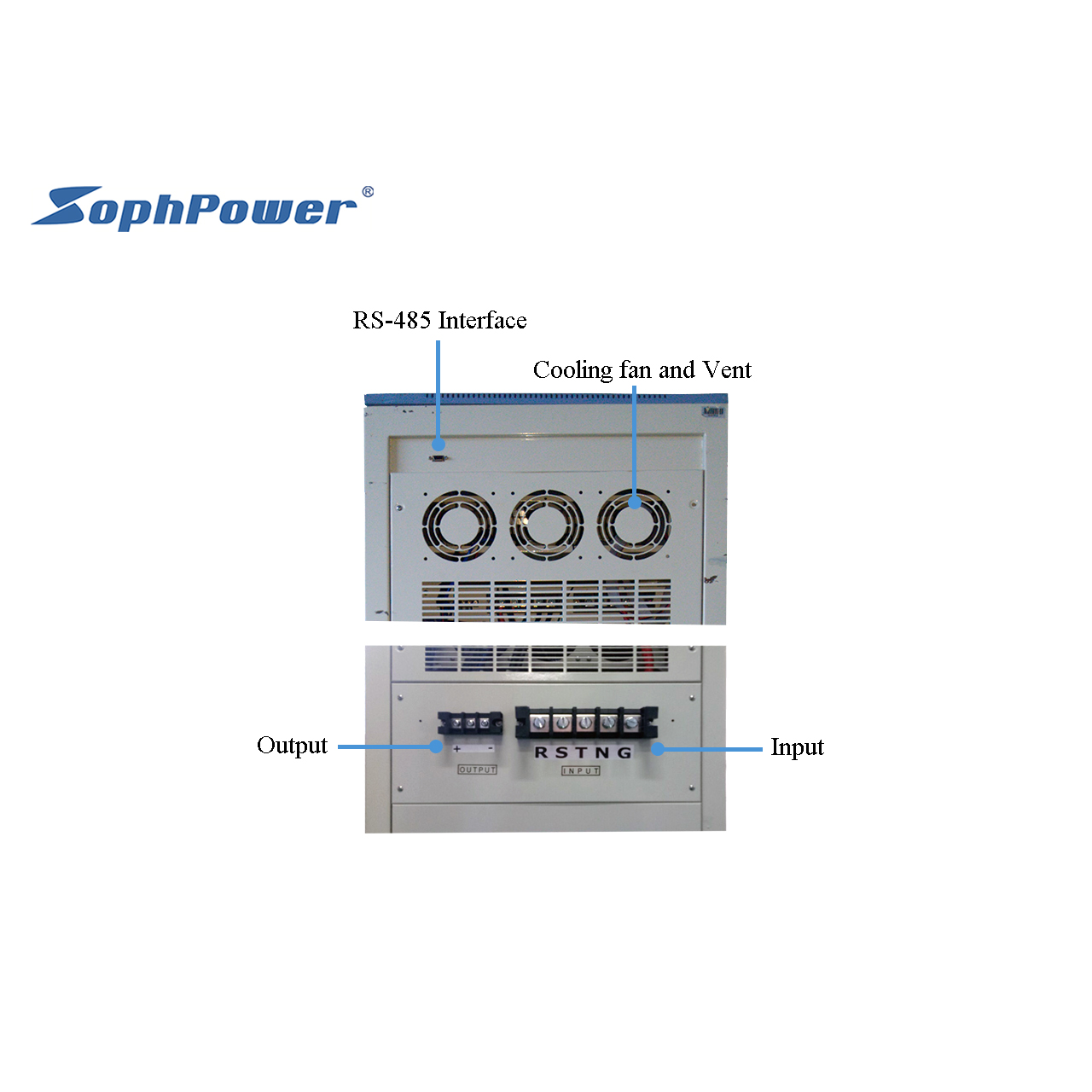

| Interface | Standard RS-232 or RS-485 | |
| WORKING ENVIRONMENT | ||
| Operation place | For indoor use | |
| Temperature | -10℃~40℃ | |
| Humidity | ≤ 80% | |
| MEASUREMENT | Range | Resolution | Accuracy |
|---|---|---|---|
| Voltage | 0-100% Umax of Customize | 0.2V | ± 0.2% ± 6 Count at rated voltage |
| Current | 0-100% Imax of Customize | 0.1A | ± 0.5% ± 3 Count at rated current |
| Power | 0-100% of rated power | 0.01KW | ± 1% ± 3 Count at rated power |

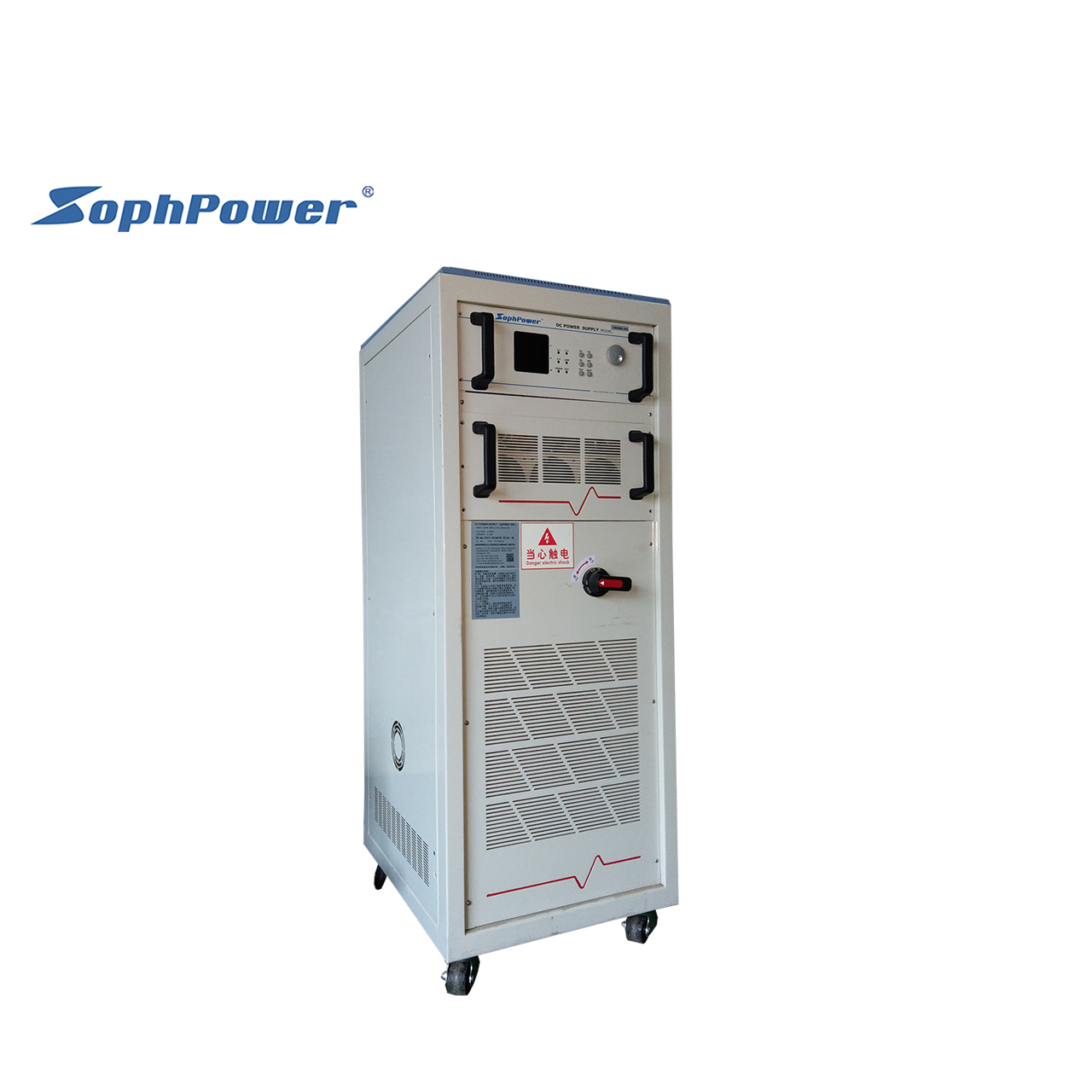

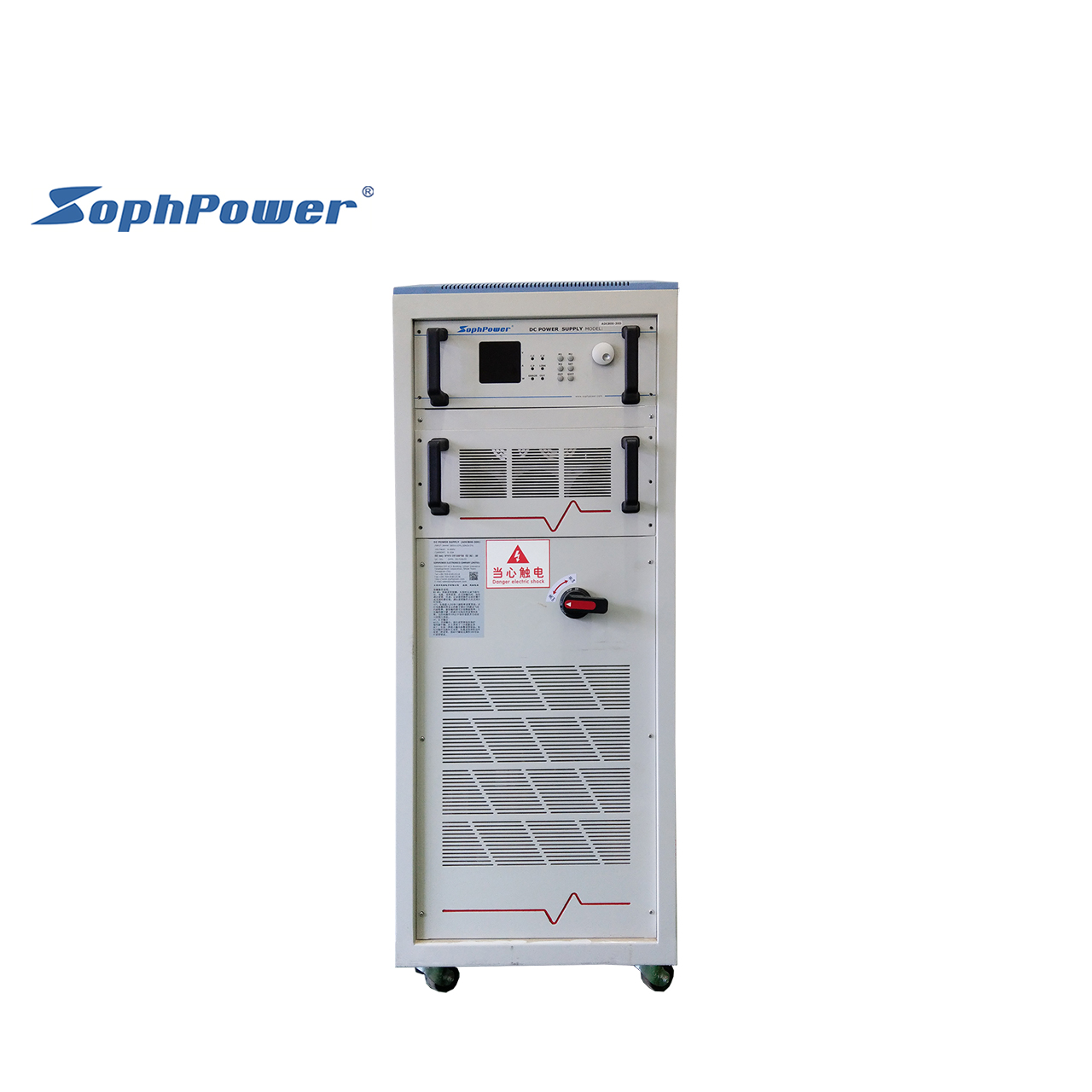

Photos
Related Products

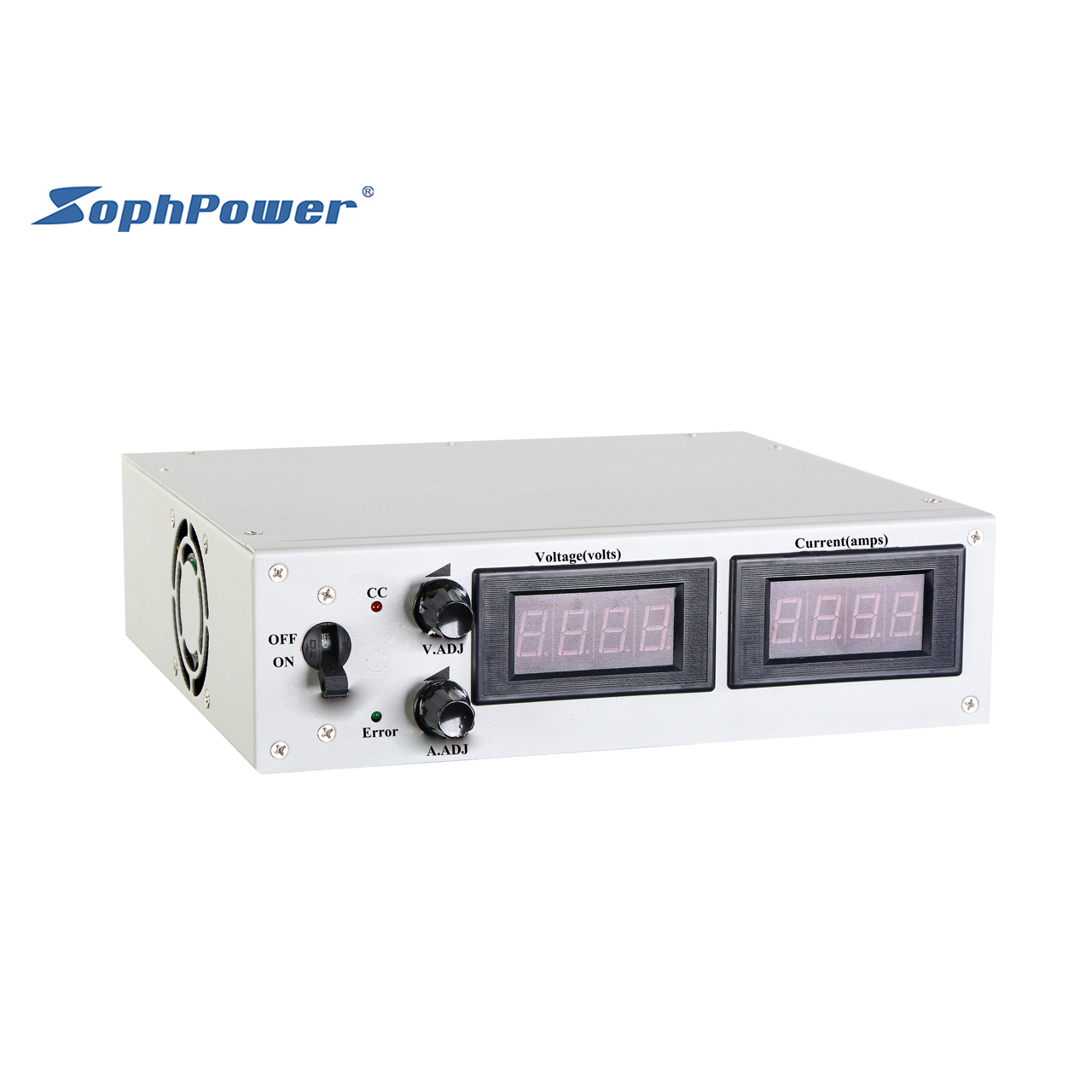

5v 200 amps Adjustable dc power supply
