40v 30 Amps Dc Regulated Power Supply Adjustable
Product Description
Key Features

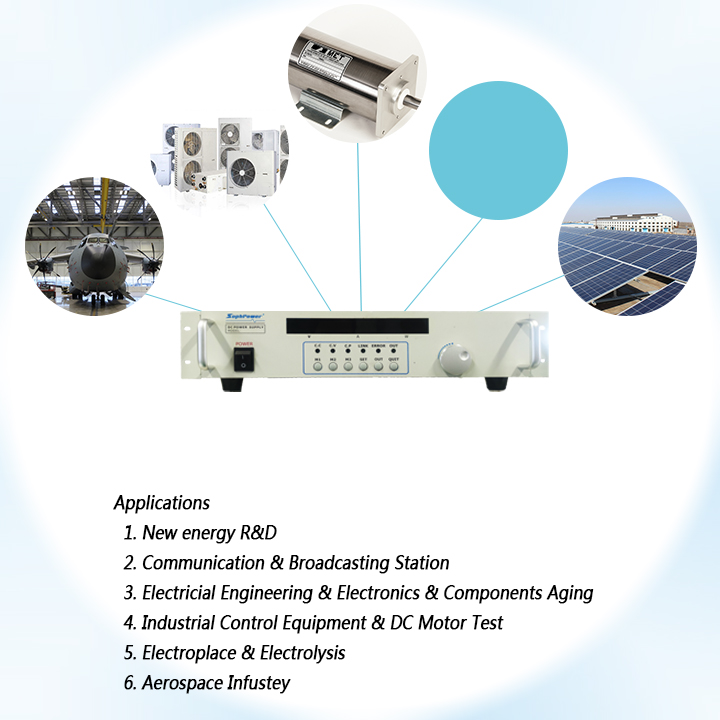

Applications
Specifications
| Items | Specification |
|---|---|
| Input voltage | 1 phase 220VAC ± 15% ; 60Hz |
| Output voltage | 0-5Vdc |
| Output current | 0-200A |
| Line regulation | Constant voltage ≤ 0.5% |
| Load regulation | Constant voltage ≤ 1% ; Constant current ≤ 2% |
| Ripper | Vpp ≤ 1% |
| Efficiency | 86% |
| Voltage display | Accuracy: ± 1.2% |
| Current display | Accuracy: ± 1.5% |
| Insulation Resistance |
Input to Output: ≥ 20MΩ Input to Enclosure: ≥ 20MΩ Output to Enclosure: ≥ 80MΩ |
| Insulation Strength |
Input to Output: 1500VAC, 10mA, 1minute Input to Enclosure: 1500VAC, 10mA, 1minute Output to Enclosure: 1500VAC, 10mA, 1minute |
| Over-temperature Protection | (75~85)ºC |
| MTTF | ≥ 50000h |
| Warranty | 1 Year |
| Size (W*H*D) | 210mm*70mm*260mm |
| Weight | 4kg |
| Heat Dissipation Duct | Internal heat dissipation duct (left in and right out) |

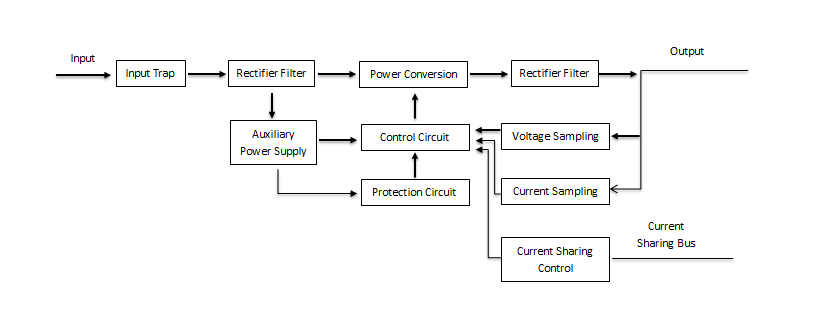

Working Principle
Operation - 5V 200a DC Power Supply
- Preset the output voltage as needed when the output end is not loaded or check if the voltage is proper when it is powered on or preset the potentiometer for voltage adjustment to the minimum. For the safety, potentiometer for voltage adjustment should be adjusted to the minimum in advance.
- After checking the output voltage, connect loading equipment when the powers supply switch is switched off and then connect the power supply switch.
- Two potentiometers can be adjusted on the front panel at any time during the operation period so as to change the output constant voltage and output constant current value.
Parameters for Reference
PS-1kw Series
PS-05-200, PS-40-25, PS-60-15, PS-100-10, PS-200-05, PS-250-04, PS-300-03, PS-400-03, PS-500-02, PS-600-02, PS-1000-01, PS-1200-01
PS-2kw Series
PS-05-400, PS-40-50, PS-60-35, PS-100-20, PS-200-10, PS-250-08, PS-300-06, PS-400-05, PS-500-04, PS-600-03, PS-1500-01
PS-4kw Series
PS-20-200, PS-40-100, PS-60-60, PS-100-40, PS-200-20, PS-250-20, PS-300-15, PS-400-10, PS-500-08, PS-600-06, PS-800-05, PS-1000-05
PS-10kw Series
PS-20-500, PS-40-250, PS-60-150, PS-100-100, PS-200-50, PS-250-40, PS-300-30, PS-400-25, PS-500-20, PS-600-15, PS-800-12, PS-1000-10
PS-20kw Series
PS-40-500, PS-100-200, PS-250-80, PS-400-50, PS-600-35, PS-800-25, PS-1000-20
PS-30kw Series
PS-100-300, PS-250-120, PS-400-80, PS-500-60, PS-600-50, PS-800-35, PS-1000-30
PS-50kw Series
PS-100-500, PS-250-200, PS-400-120, PS-500-100, PS-600-80, PS-800-60, PS-1000-50
About Us
The Ordering Instructions
In order to allow customers to more accurately select the DC power supply, listed the following custom parameters for reference:
- Input voltage, frequency, and range of the DC power supply.
- The output voltage and adjustable range of the DC power supply.
- The output current or power and adjustable range of the DC power supply.
Related Products
High Power Programmable DC Power Supply

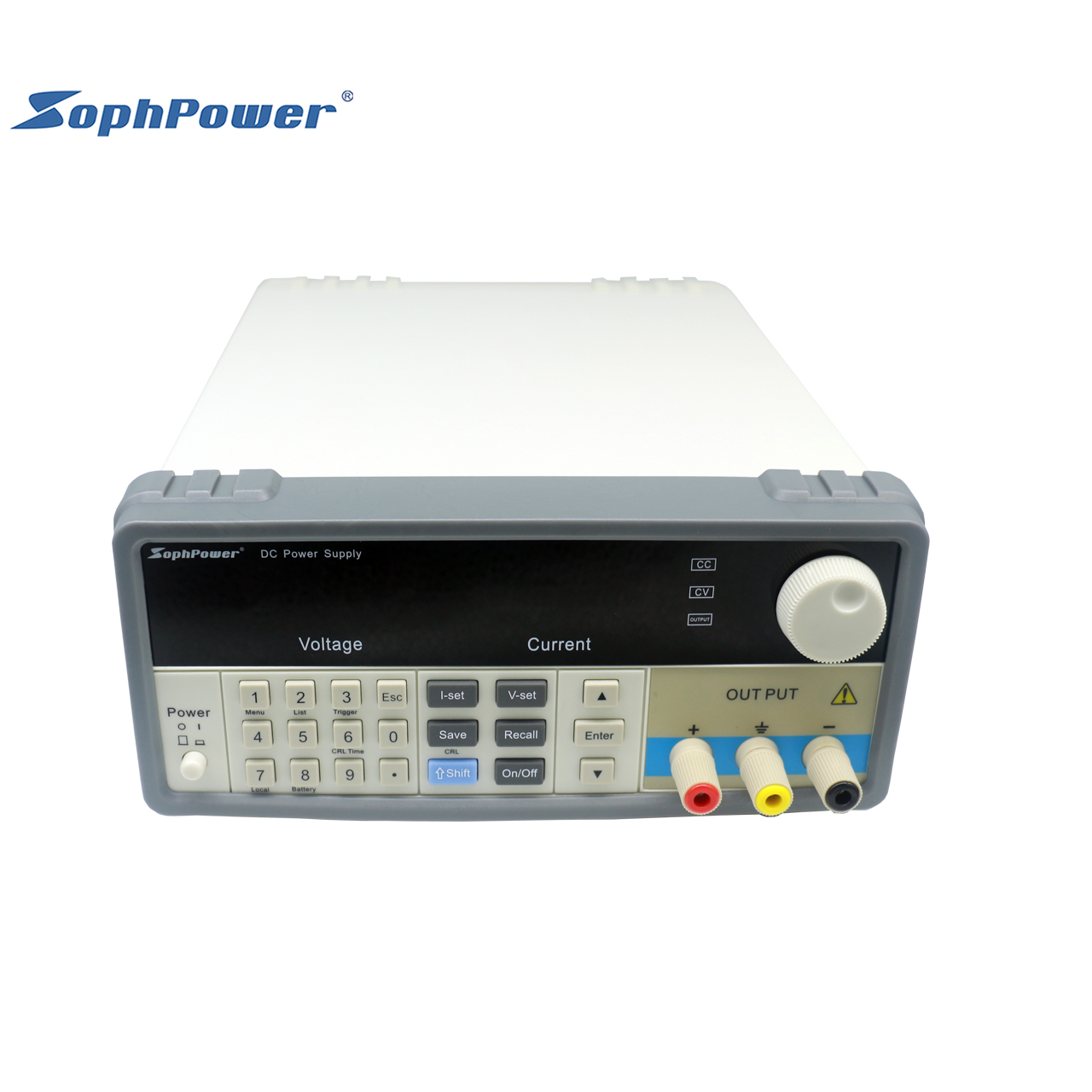

300W Programmable Linear DC Power Supply
